Installation
2.4L

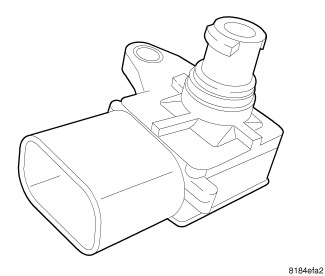

1. Install manifold absolute pressure (MAP) sensor to intake manifold.
2. Tighten screw to 4.5 Nm (40 in. lbs.).

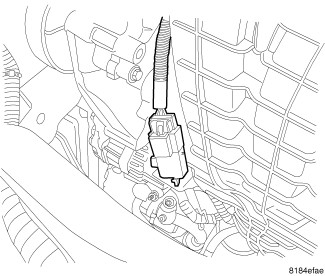

3. Connect electrical connector to sensor.
4. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
2.4L
1. Install manifold absolute pressure (MAP) sensor to intake manifold.
2. Tighten screw to 4.5 Nm (40 in. lbs.).
3. Connect electrical connector to sensor.
4. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
