Power Distribution Module: Description and Operation





DESCRIPTION

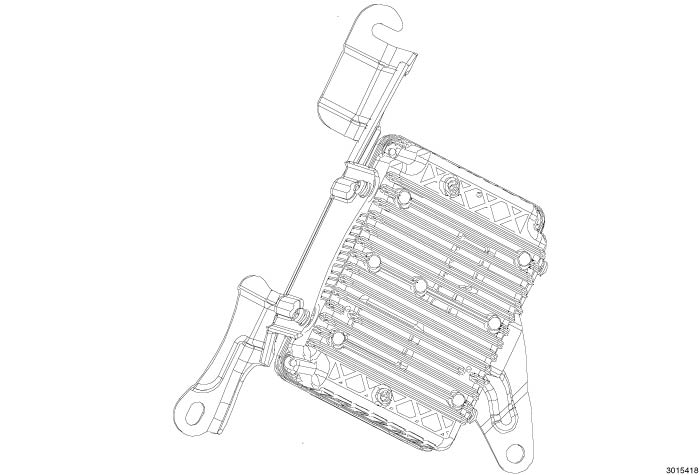

The power inverter module is located under the instrument panel above the emergency brake.

The power inverter module when activated will supply 200 watts of 110 volt power to the outlet.
