Rear Blower Motor Power Module - Installation

INSTALLATION

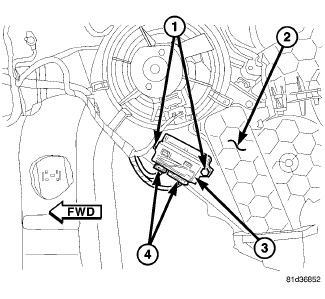

1. Position the rear blower motor power module (3) onto the rear heater-A/C housing (2).
2. Install the two screws (1) that secure the rear blower motor power module to the rear heater-A/C housing. Tighten the screws to 1.2 Nm (10 in. lbs.).
3. Connect the two wire harness connectors (4) to the rear blower motor power module.
4. Install the right rear quarter trim panel Quarter Trim Panel - Installation.
5. Reconnect the negative battery cable.
