Junction Block - Installation

INSTALLATION

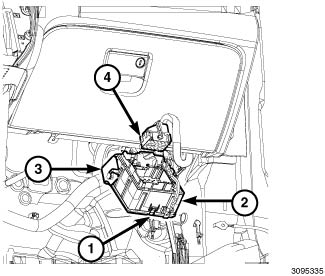

1. Roll the junction block into the junction block bracket (3).
2. Connect the electrical connectors (4).
3. Roll the junction block (2) back into place and clip the connector (1)
4. Install the passenger side instrument panel lower closeout Lower Silencer Panel - Installation.
5. Connect the negative battery cable.
