Heated Seat Module - Description

DESCRIPTION

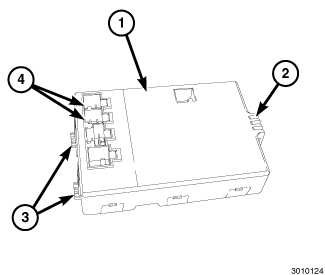

The Heated Seat Module (HSM) (1), also known as the comfort seat wheel module, is a microprocessor designed to use the Controller Area Network (CAN) data bus messages from the U-Connect Touch(TM) screen module to operate the heated seats.

The HSM has multiple electrical connector outlets (4) and three retaining tabs (2 and 3) that secure it to underside of the driver seat.
