Installation

EXHAUST PRESSURE SENSOR

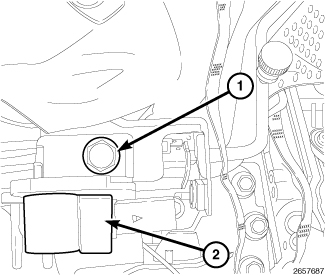

1. Install pressure differential sensor (2). Tighten bolt (1) to 10 Nm (89 in. lbs.).

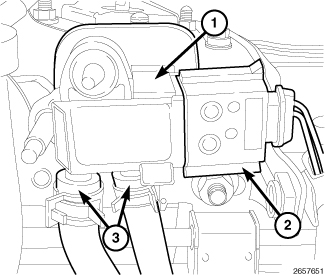

2. Connect the pressure differential sensor (1) vacuum lines (3).
3. Connect the pressure differential sensor (1) harness connector (2).
4. Connect the negative battery cable.
