Relay - Removal

REMOVAL

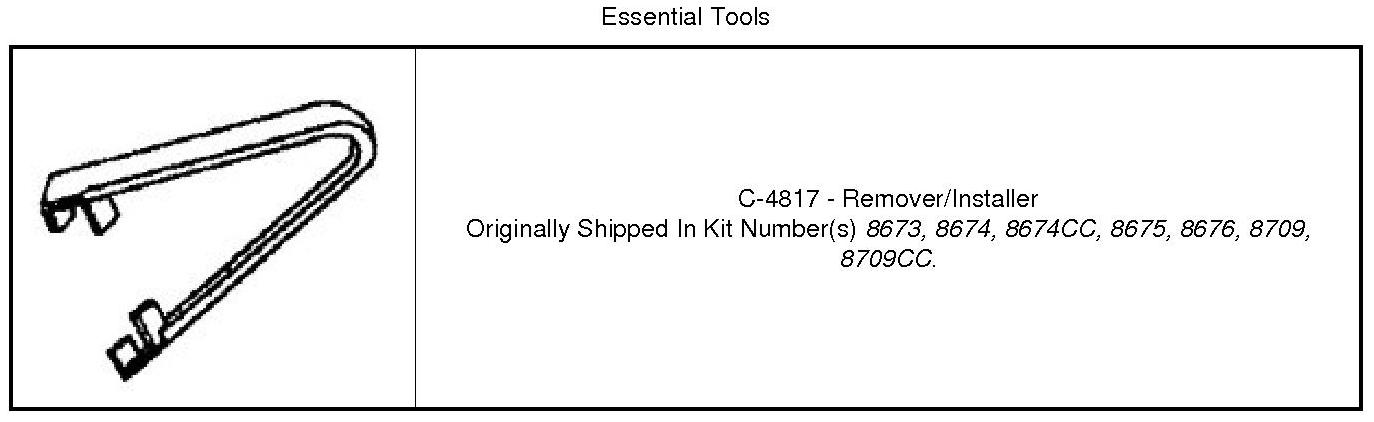

Special Tools:










1. Disconnect and isolate the battery negative cable.
2. Remove cover from Totally Integrated Power module (TIPM).
3. Using special tool (1), grip the relay (2) by the sides and pull upward with an even effort.
