Relay - Installation

INSTALLATION

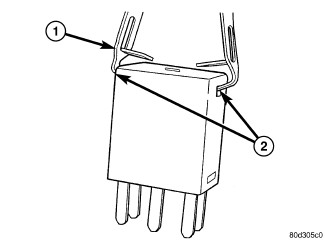

1. Align relay (2) with Totally Integrated Power Module (TIPM) and press into position.
2. Install cover to TIPM.
3. Connect battery negative cable.
