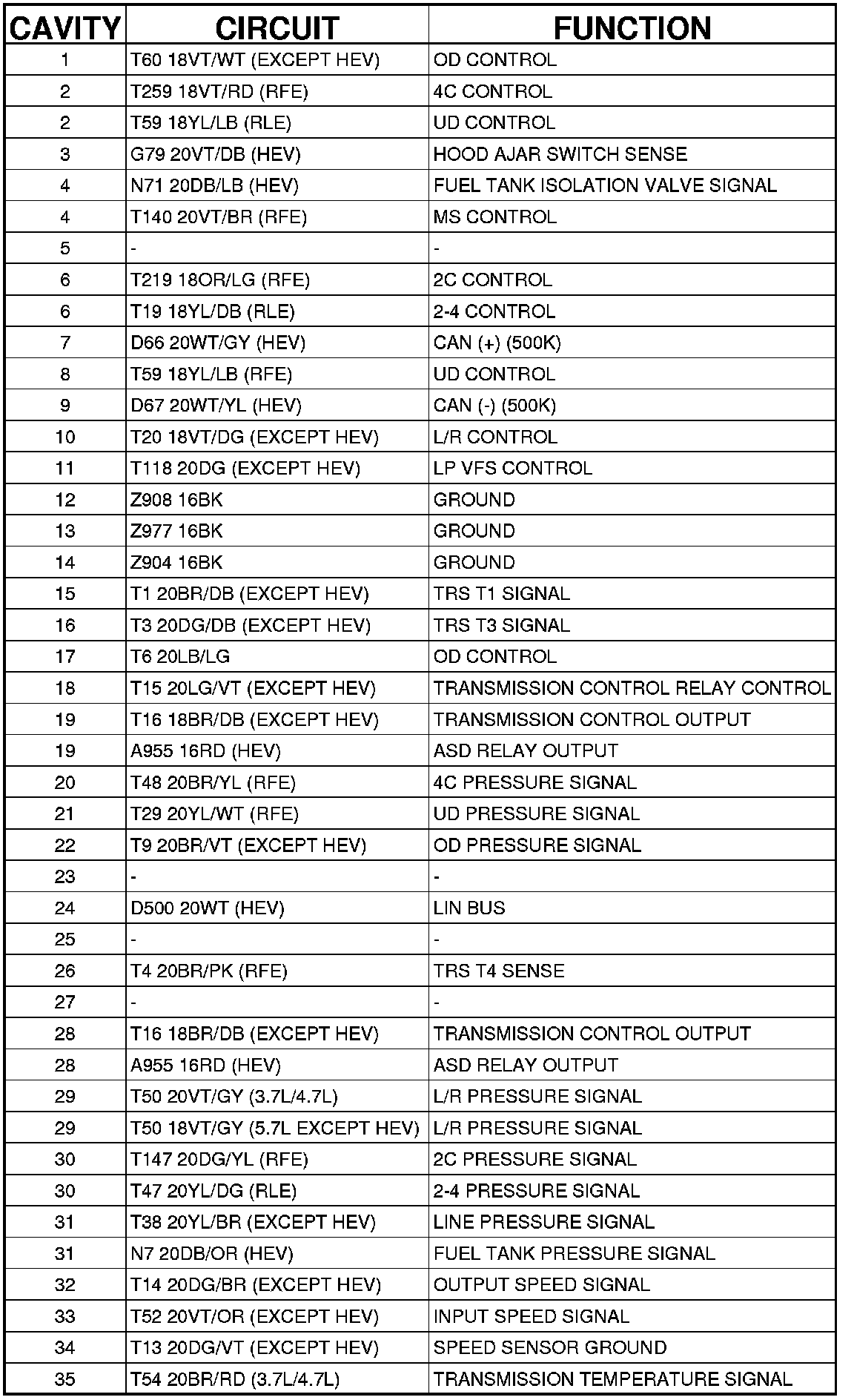

Powertrain Control Module C4 38 Way

Connector C4 - (ENGINE) 38 WAY

MODULE-POWERTRAIN CONTROL - (ENGINE) 38 WAY
