Home >> Dodge and Ram >> 2009 >> Durango 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

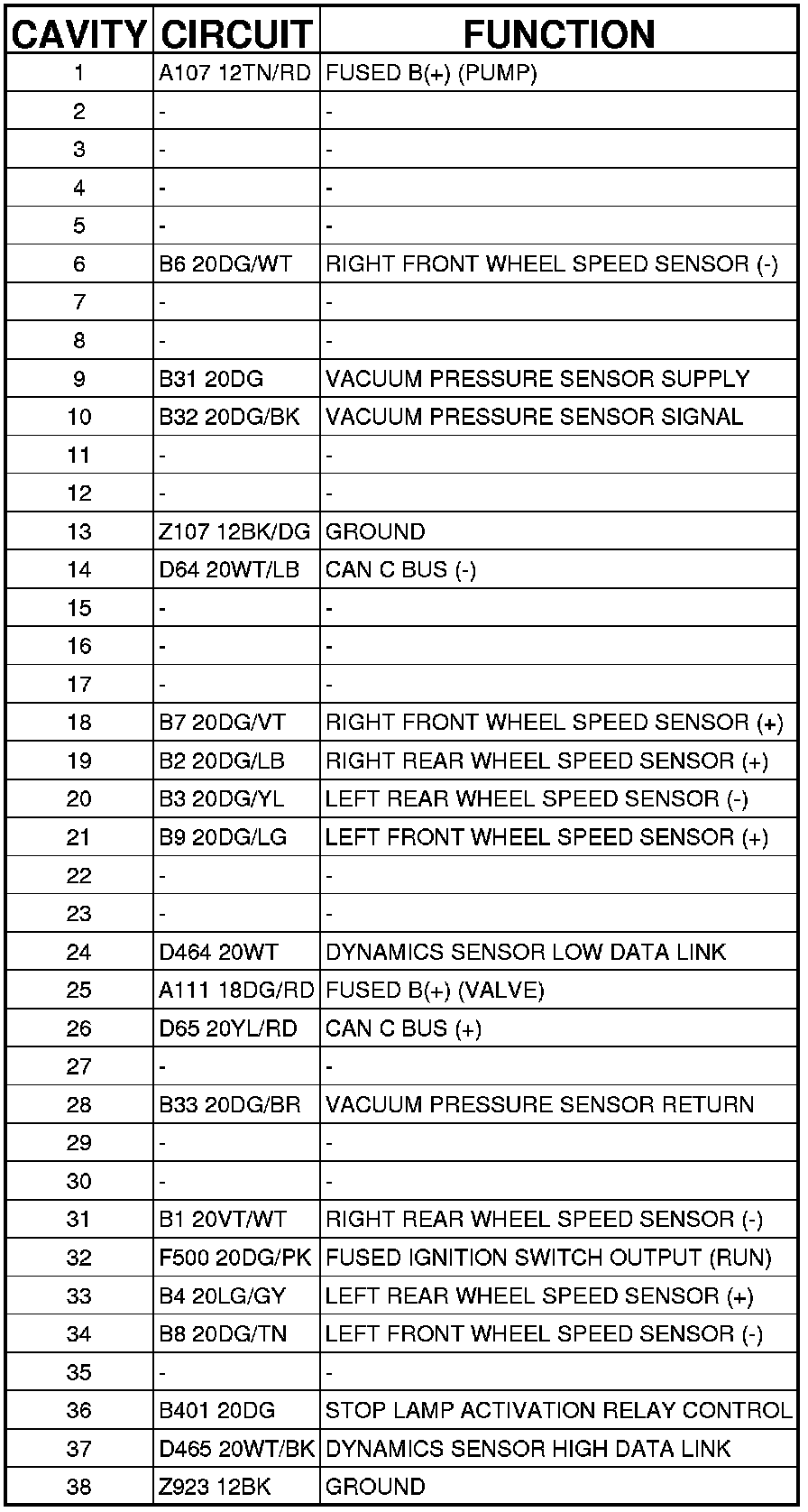

Connector - (HEADLAMP AND DASH SIDE) 38 WAY




MODULE-ANTILOCK BRAKES - (HEADLAMP AND DASH SIDE) 38 WAY
