45RFE/545RFE Automatic Transmission






SPECIFICATIONS

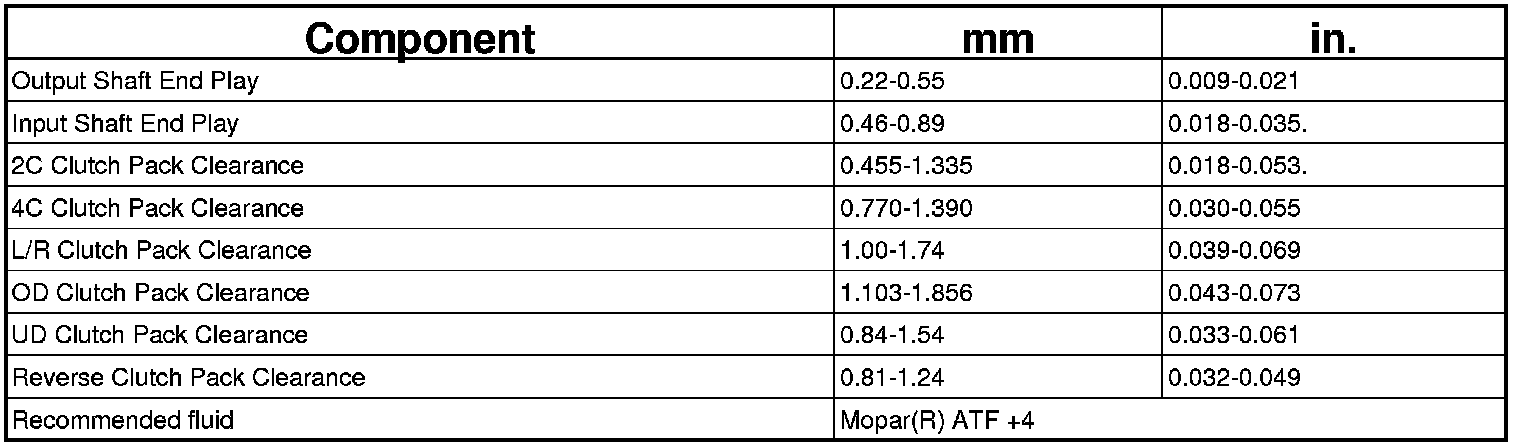

GENERAL

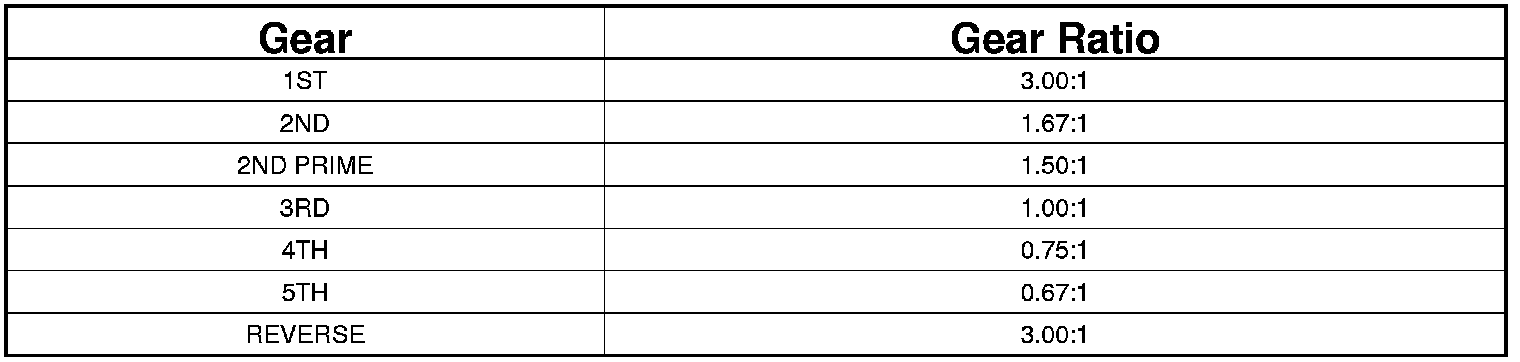

GEAR RATIOS

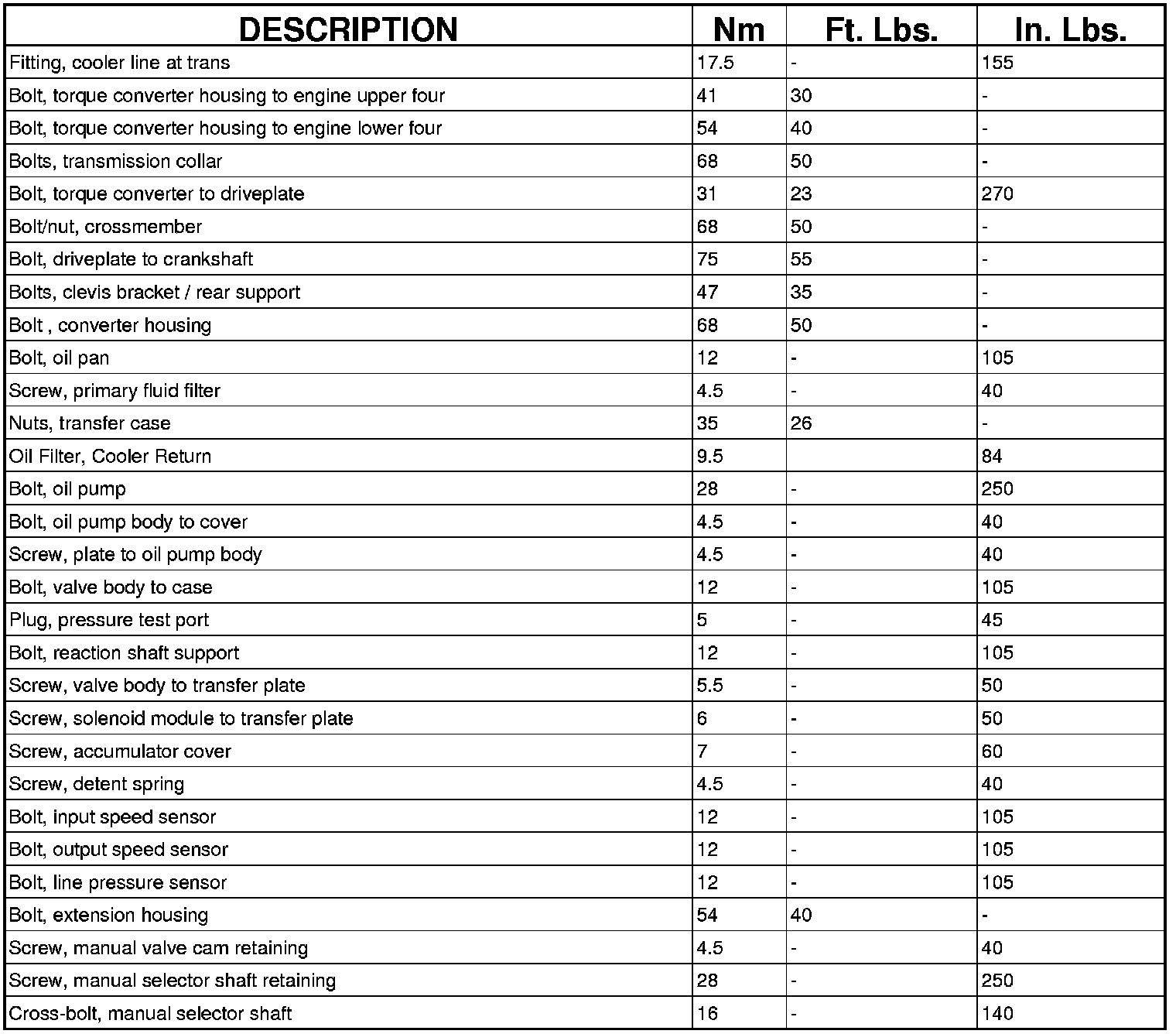

TORQUE SPECIFICATIONS






FLEX PLATE





Flexplate-to-crankshaft bolts 95 Nm (70 ft. lbs.)
