Variable Induction Control Solenoid

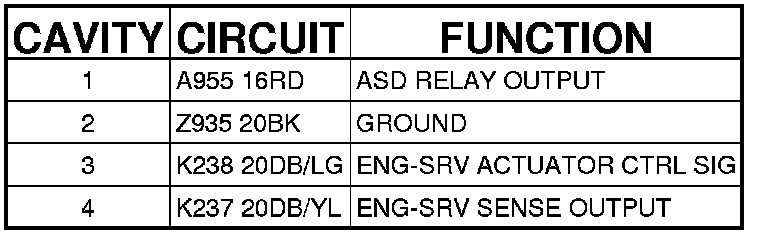

Connector (5.7L) - (ENGINE) 4 WAY

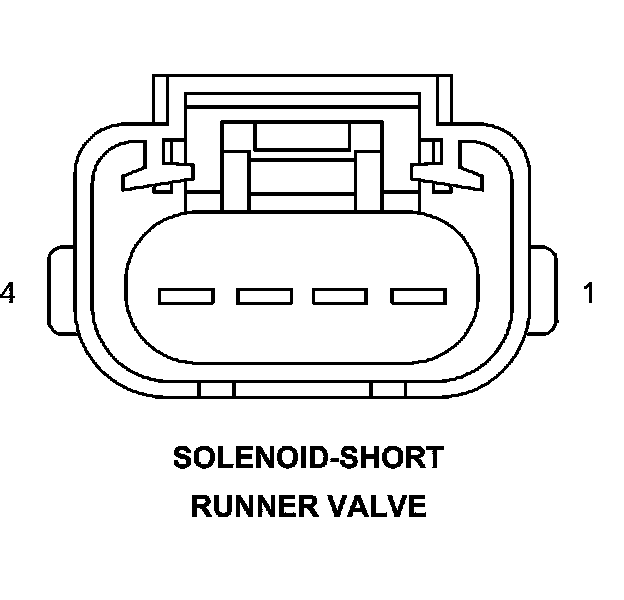

SOLENOID-SHORT RUNNER VALVE (5.7L) - (ENGINE) 4 WAY
