Engine Coolant Temperature Sensor - Installation

2.7L










1. Apply thread sealant to sensor threads.

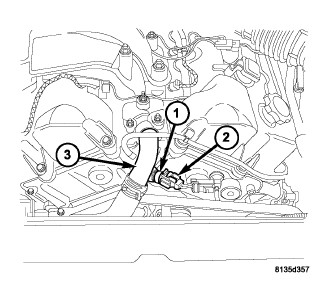

2. Install engine coolant temperature sensor (1) into coolant outlet tube (3).
3. Tighten sensor to 28 Nm (20 ft. lbs.).
4. Connect electrical connector (2) to engine coolant temperature sensor (1).
