Dodge and Ram
>>
2009
>>
Charger V6-2.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Locations
>>

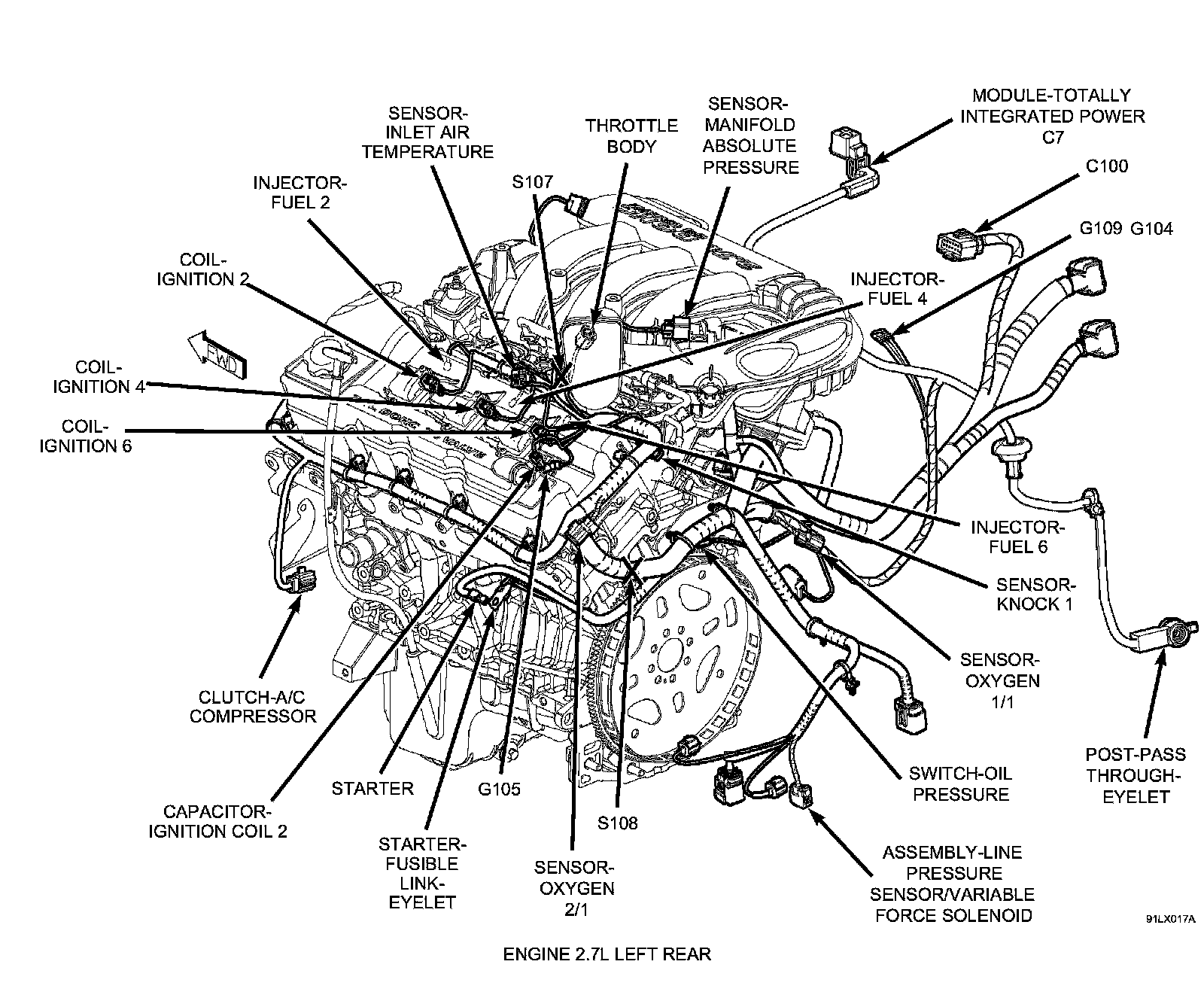

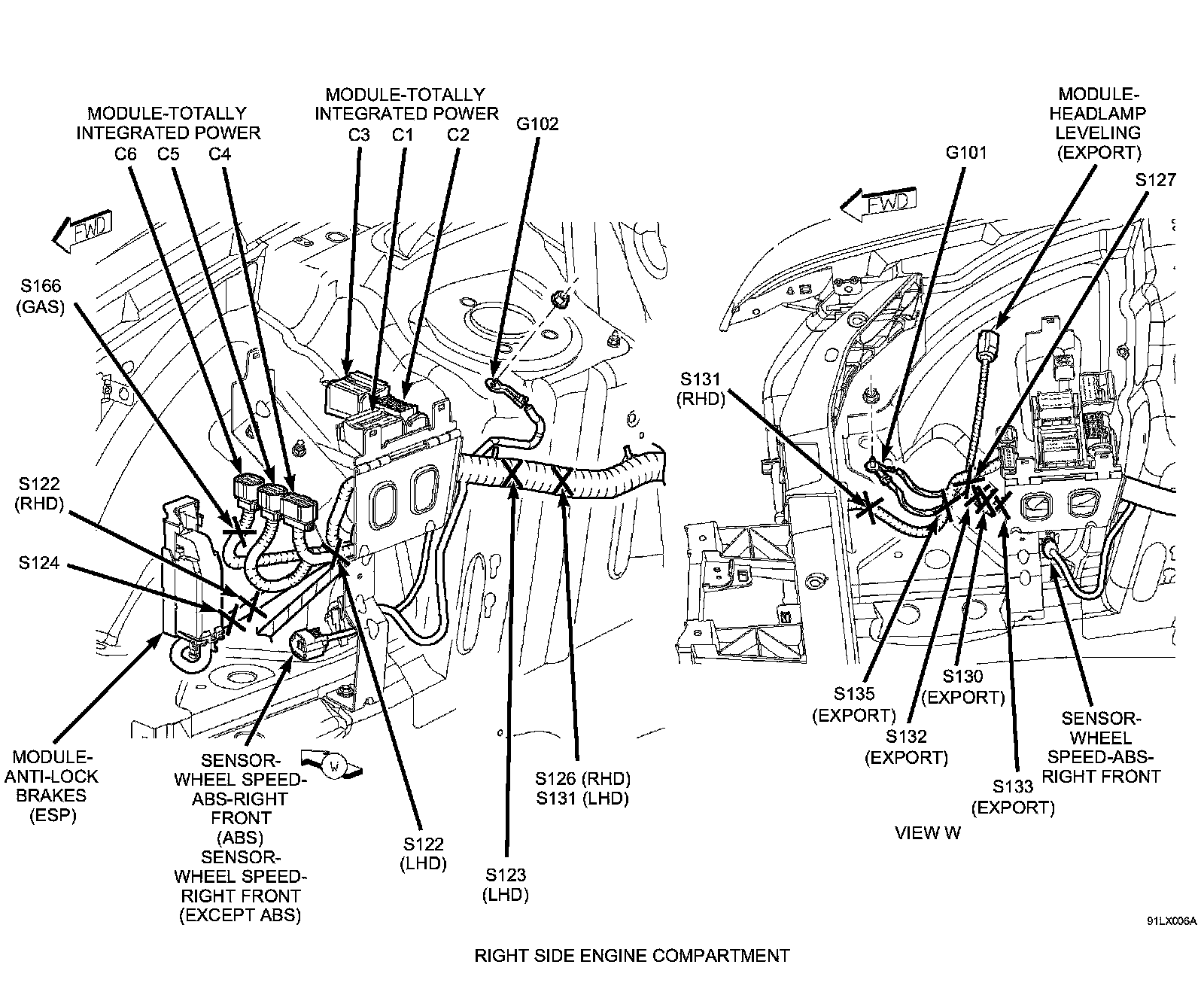

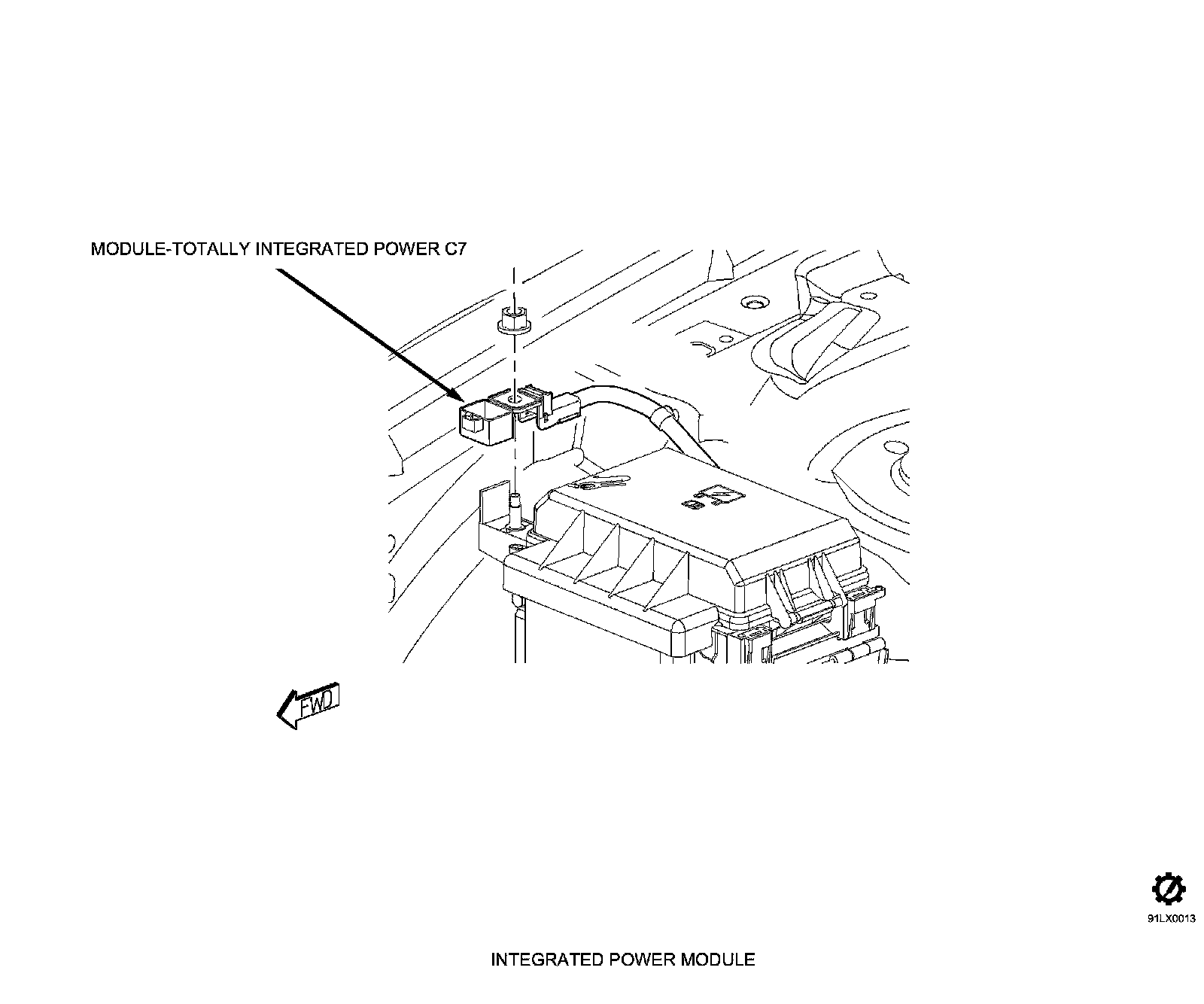

Totally Integrated Power Module
Totally Integrated Power Module
