Police/Taxi Interface Module C2 (Instrument Panel) 22 Way

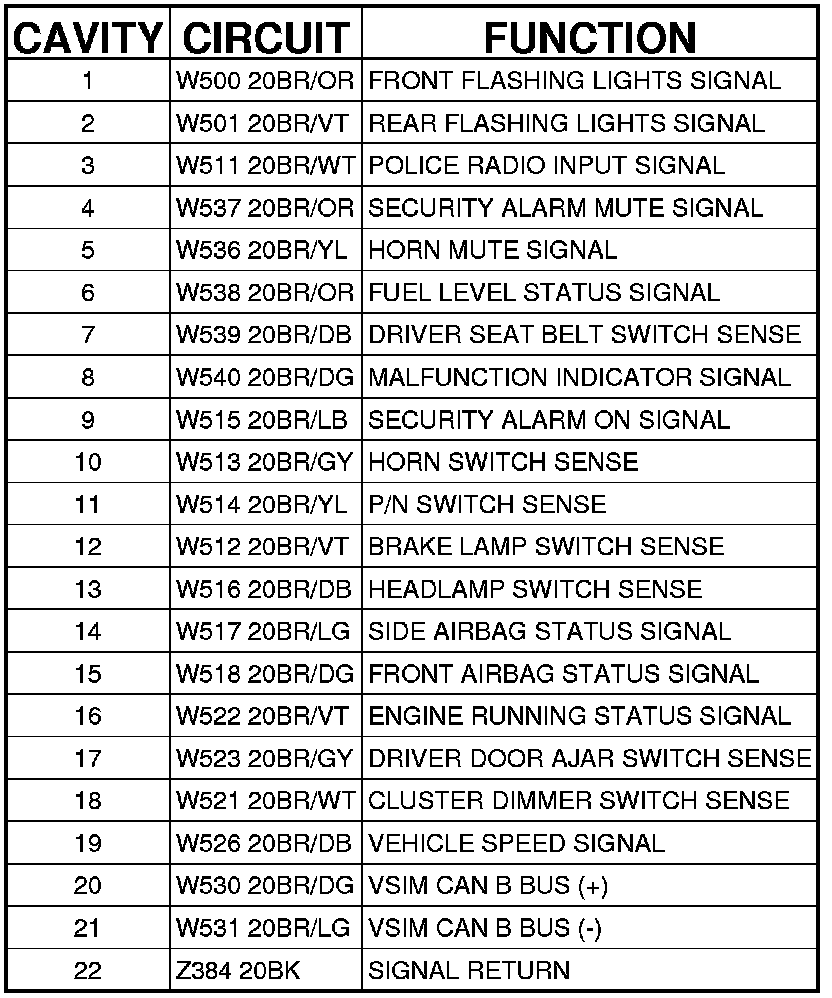

Connector C2 - (INSTRUMENT PANEL) 22 WAY




MODULE-INTERFACE-POLICE/TAXI - (INSTRUMENT PANEL) 22 WAY
