Electronic Brake Control Module
Electronic Brake Control Module

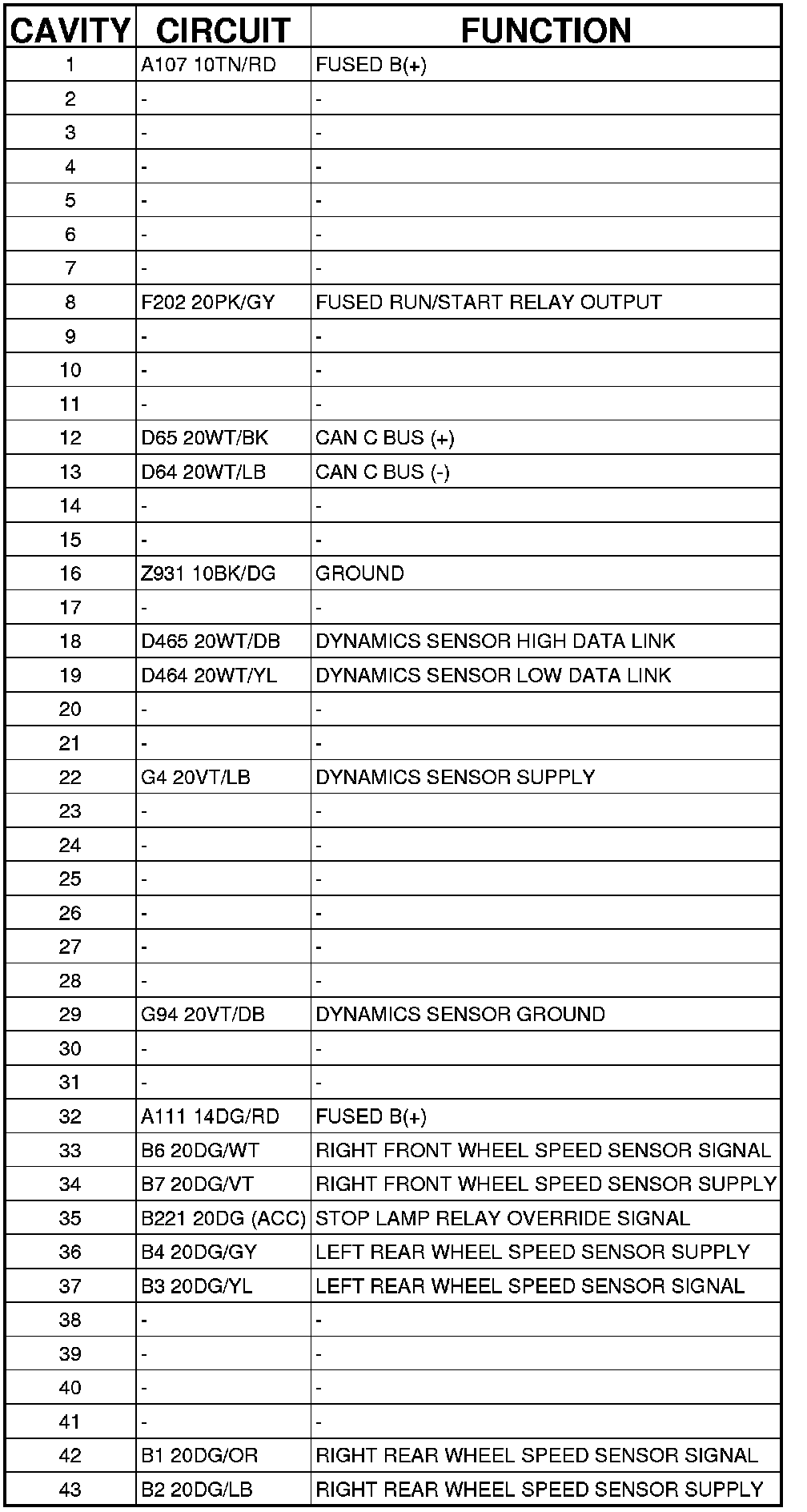

Connector (ESP) - (HEADLAMP AND DASH) 47 WAY
MODULE-ANTI-LOCK BRAKES (ESP) - (HEADLAMP AND DASH) 47 WAY
