Oil Pan, Engine
OIL PAN

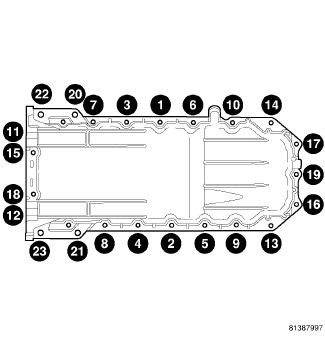

Using the sequence shown, tighten the M6 bolts to 5 Nm (44 in. lbs.).
Using the sequence shown, tighten the M10 bolts to 54 Nm (39 ft. lbs.).
Using the sequence shown, tighten the M6 bolts to 12 Nm (9 ft. lbs.)
Using the sequence shown, tighten the M6 bolts to 5 Nm (44 in. lbs.).
Using the sequence shown, tighten the M10 bolts to 54 Nm (39 ft. lbs.).
Using the sequence shown, tighten the M6 bolts to 12 Nm (9 ft. lbs.)
