Module - Totally Integrated Power C2
Module - Totally Integrated Power C2

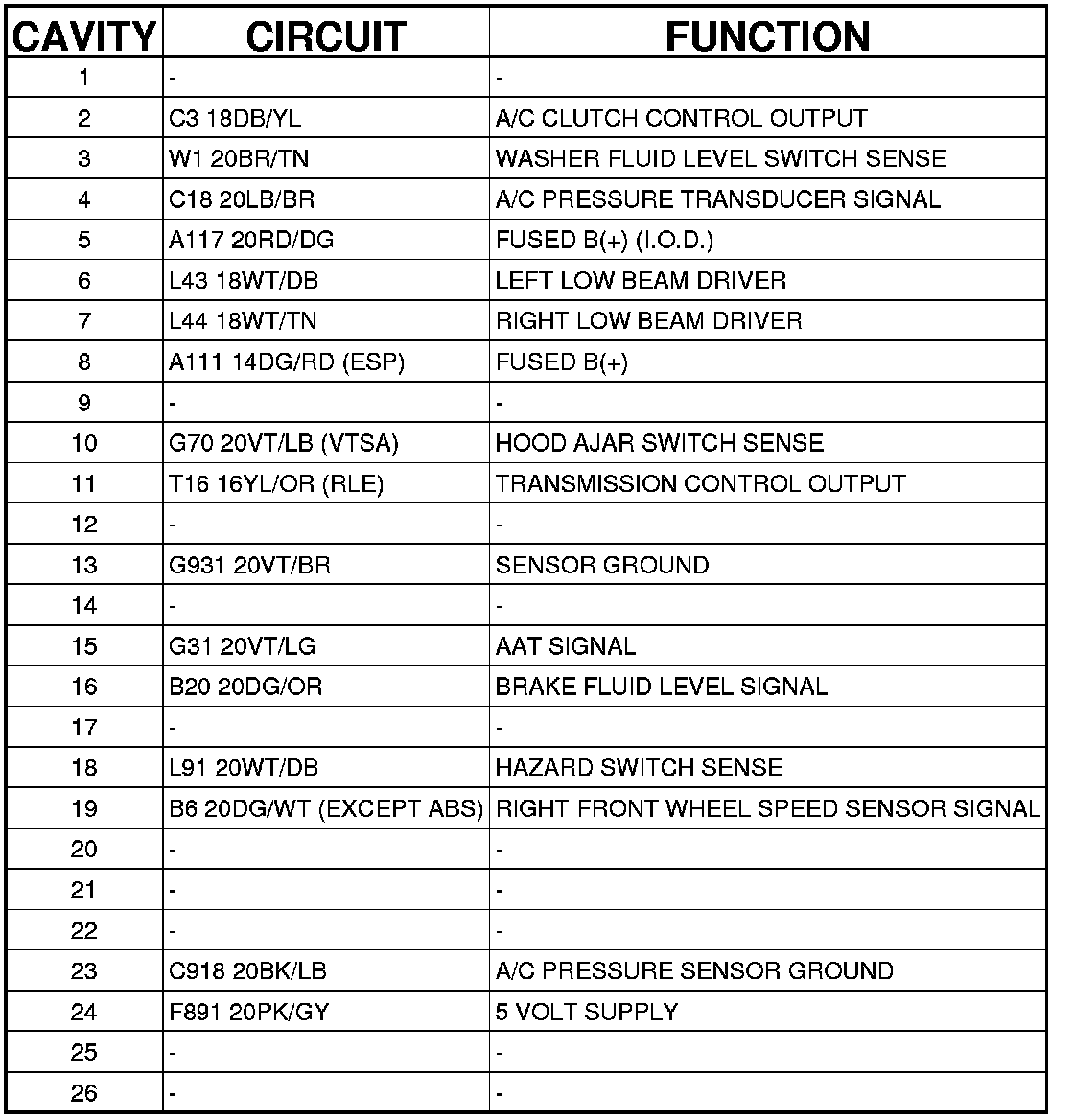

Connector C2 - (HEADLAMP AND DASH) 26 WAY
MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 26 WAY
