Occupant Restraint Controller Module C1 (Body) 24 Way
Occupant Restraint Controller Module C1 (Body) 24 Way
Connector - (BODY) 24 WAY

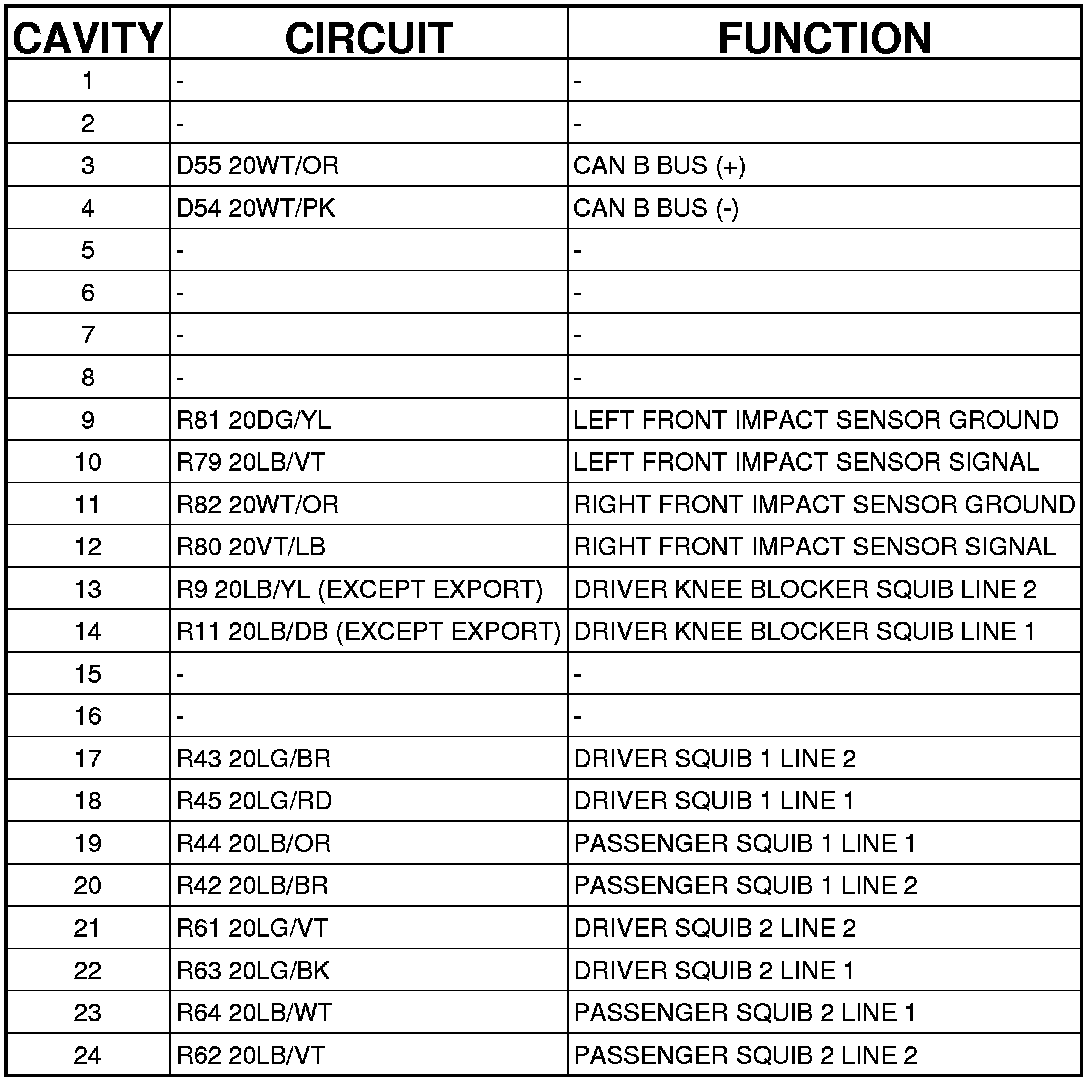

MODULE-OCCUPANT RESTRAINT CONTROLLER C1 - (BODY) 24 WAY
