Installation

INSTALLATION

1. Make sure that the MAP sensor mounting surface is clean.

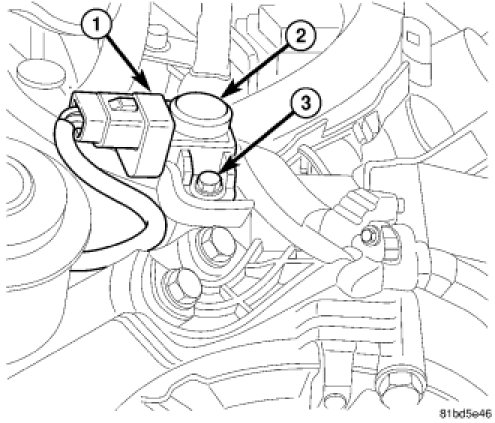

2. Install the MAP sensor (2).




3. Tighten the MAP sensor mounting bolts (3).
4. Connect the MAP sensor harness connector (1).
5. Connect the negative battery cable.
6. Install the air filter housing.
7. Install the engine cover.
