P2066-Fuel Level Sensor 2 Performance: Notes

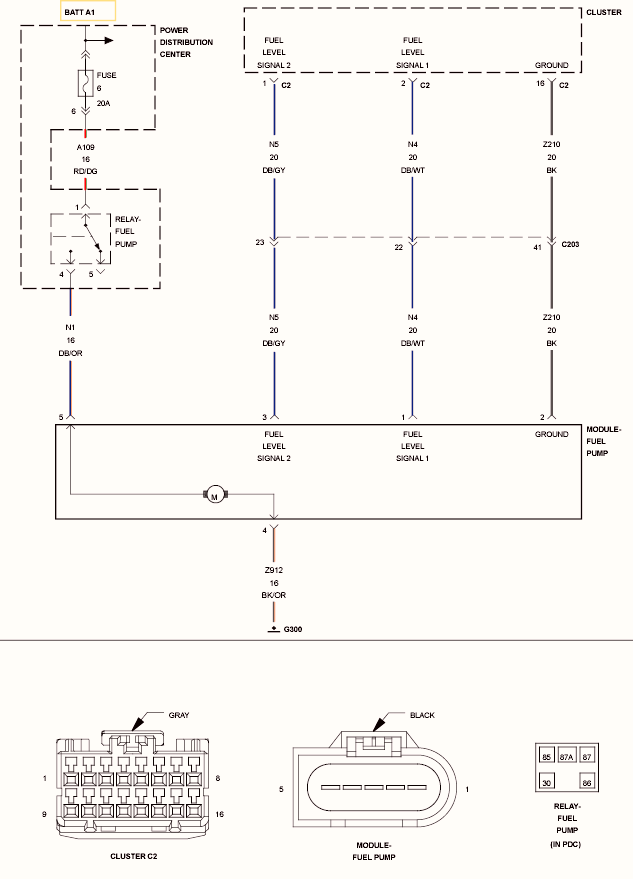

Fig 1: Fuel Level Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
