Oxygen Sensor: Locations

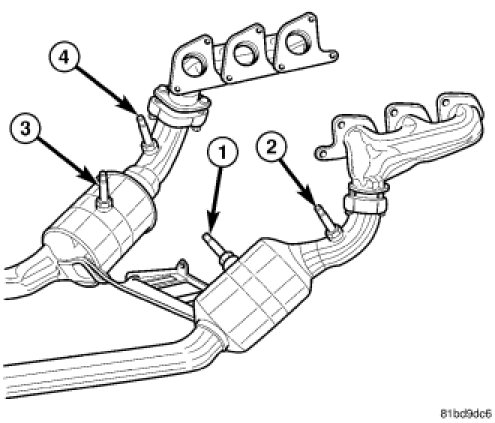

The right (2) and left (4) upstream oxygen sensors are installed in the exhaust pipe upstream of the left and right catalytic converters, and downstream of the left and right exhaust manifolds.

The right (1) and left (3) downstream heated oxygen sensors are installed into the center of the left and right catalytic converters.
