Sensor-Side Impact-Left 2

Component ID: 402
Component : SENSOR-SIDE IMPACT-LEFT 2

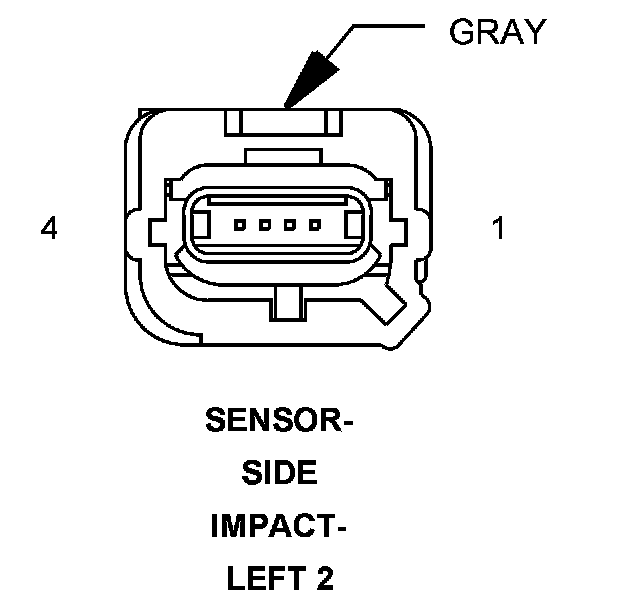

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 2
Color : GRAY
# of pins : 4




Pin Description Circuit
1 LEFT SIDE IMPACT SENSOR 2 SIGNAL R17 20LG
2 LEFT SIDE IMPACT SENSOR 2 GROUND R19 20LG/WT
3 - -
4 - -

Component Location - 59

Fig. 59:
