Intrusion Module - Installation

INSTALLATION

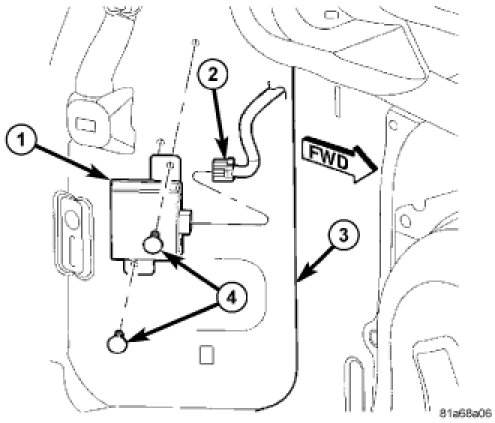

1. Position the intrusion module (1) onto the left inner D-pillar (3).

2. Install the two plastic push-in fasteners (4) that secure the module to the inner D-pillar.

3. Reconnect the take out of the body wire harness (2) to the connector receptacle on the forward-facing side of the module.

4. Reinstall the trim onto the inside of the left inner D-pillar.

5. Reconnect the battery negative cable.
