Metric System

METRIC SYSTEM

DESCRIPTION
The metric system is based on quantities of one, ten, one hundred, one thousand and one million.

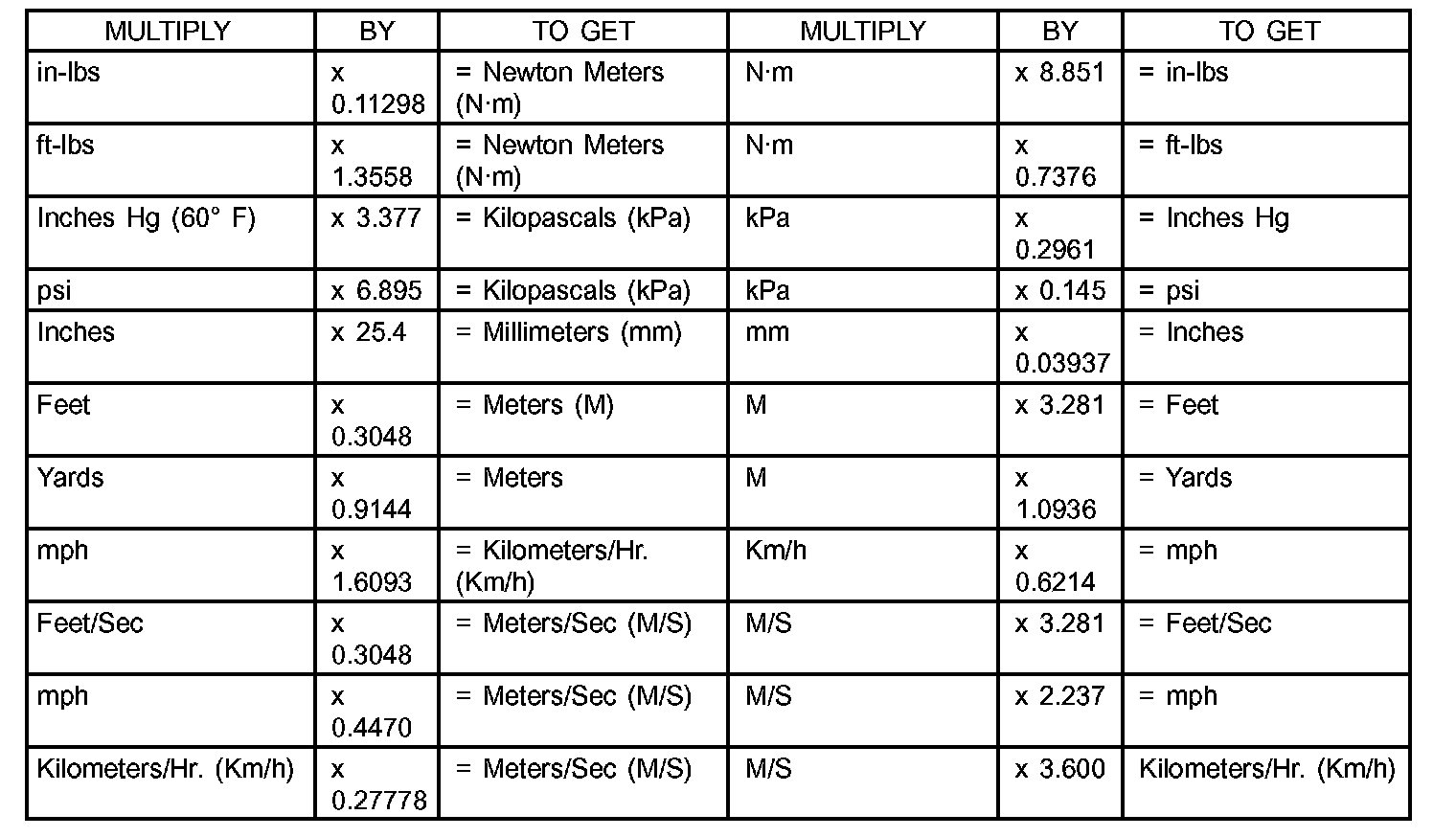

Conversion Formulas And Equivalent Values:




The following chart will assist in converting metric units to equivalent English and SAE units, or vise versa.

Common Metric Equivalents:

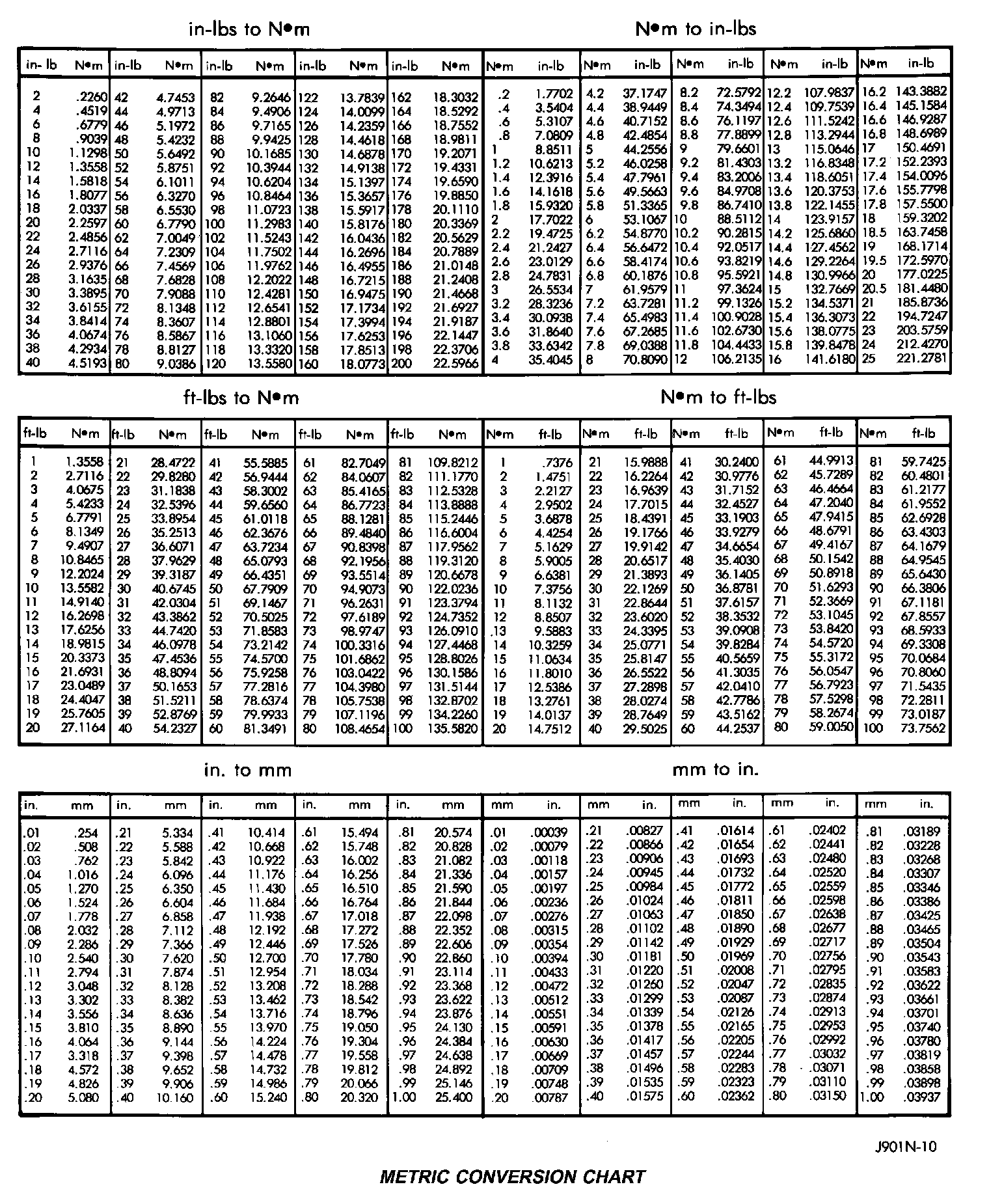

Metric Conversion Chart:




Refer to the Metric Conversion Chart to convert torque values listed in metric Newton-meters (N.m). Also, use the chart to convert between millimeters mm) and inches (in.).
