Home >> Dodge and Ram >> 2006 >> Durango 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

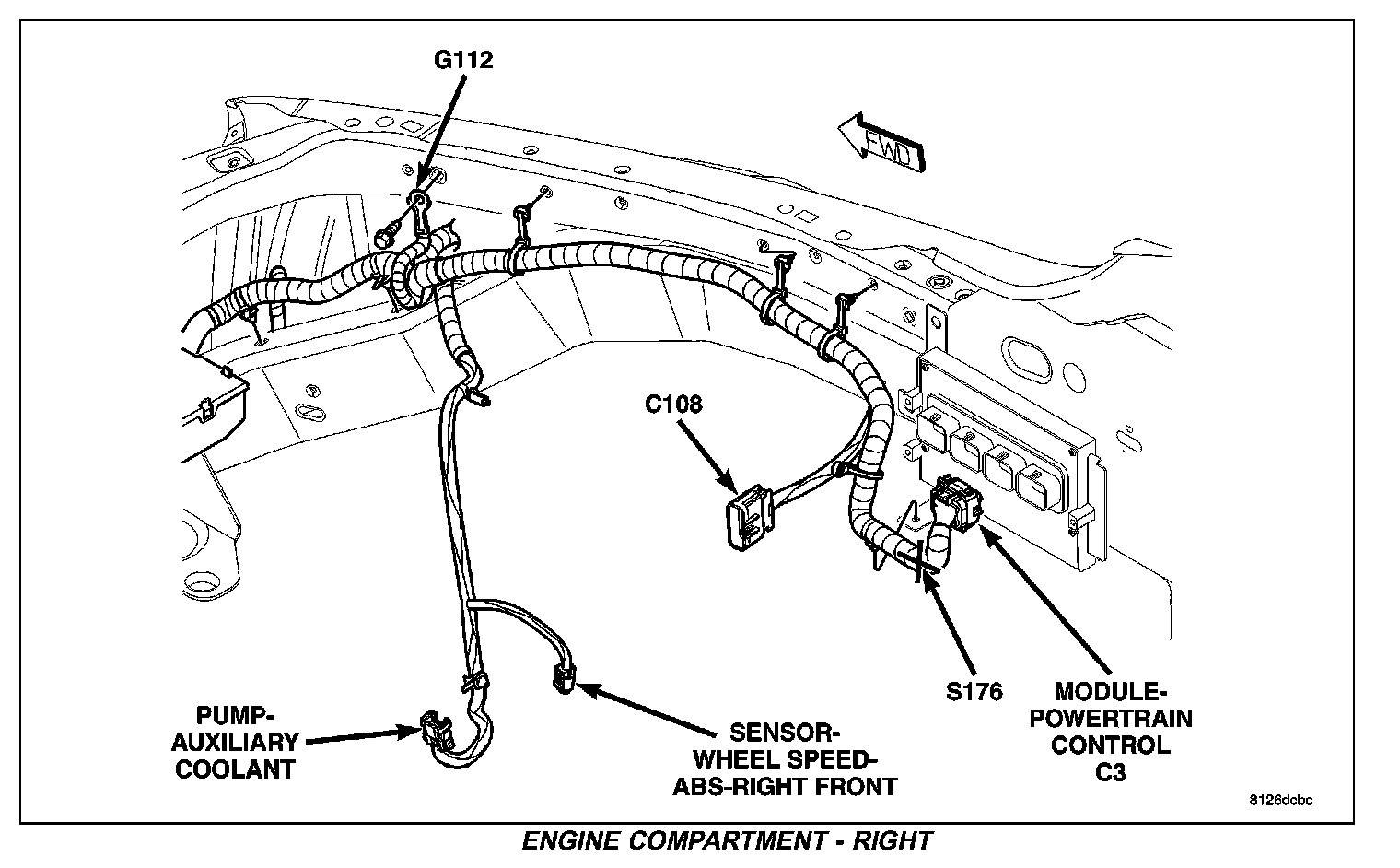

Engine Compartment Right:

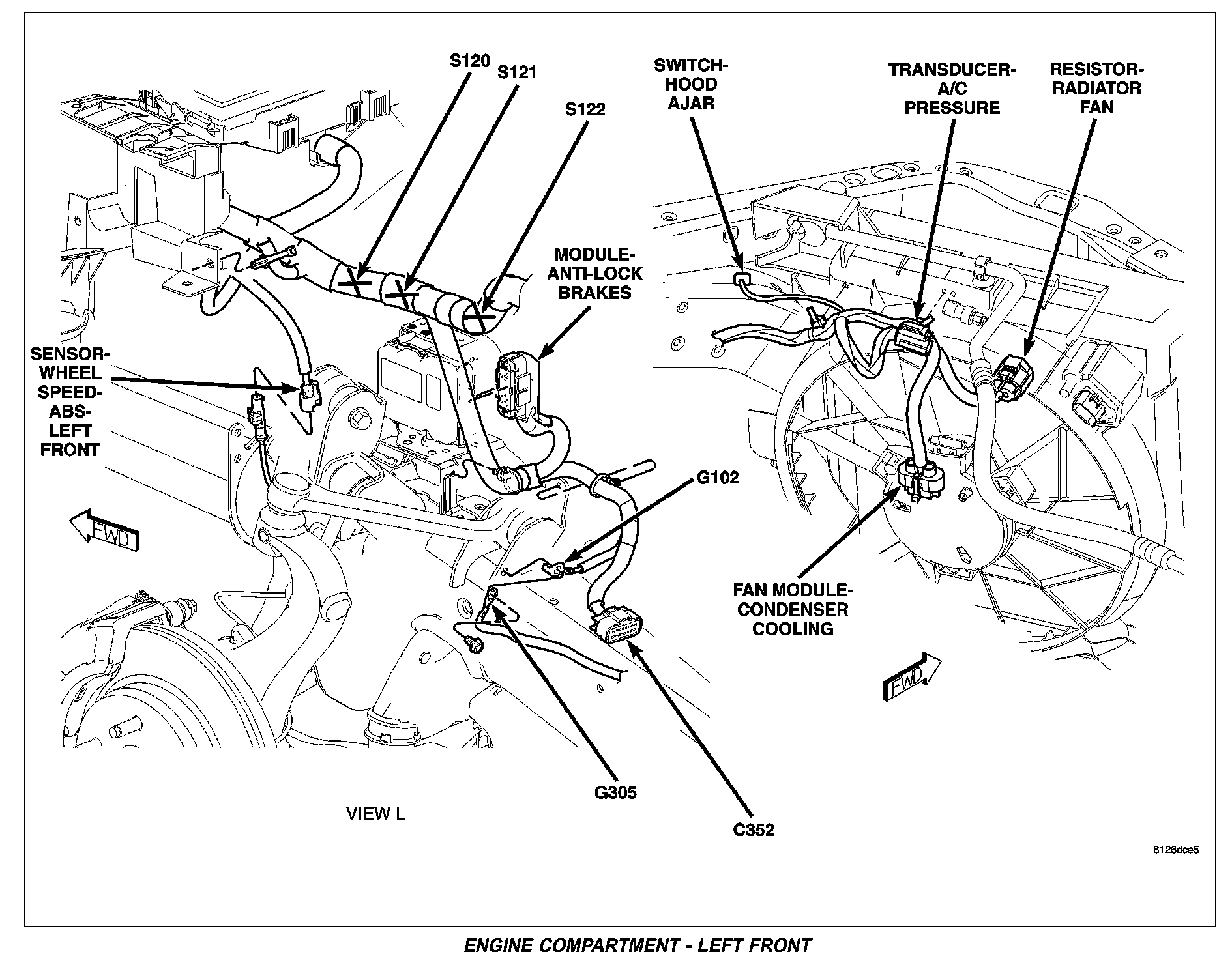

Engine Compartment Left Front:

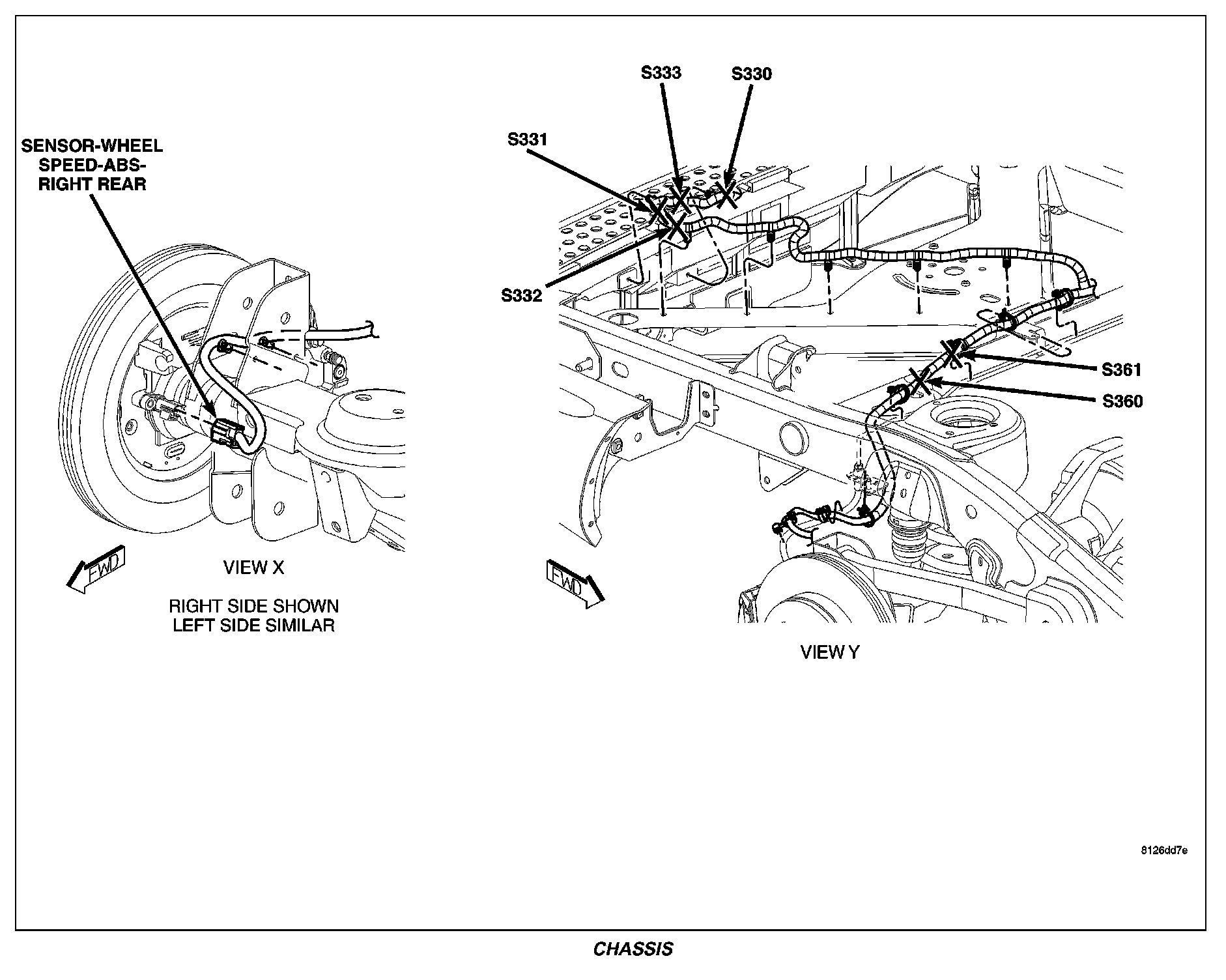

Chassis:
