Home >> Dodge and Ram >> 2006 >> Durango 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Relay >> Relay-Wiper-Rear

Relay-Wiper-Rear

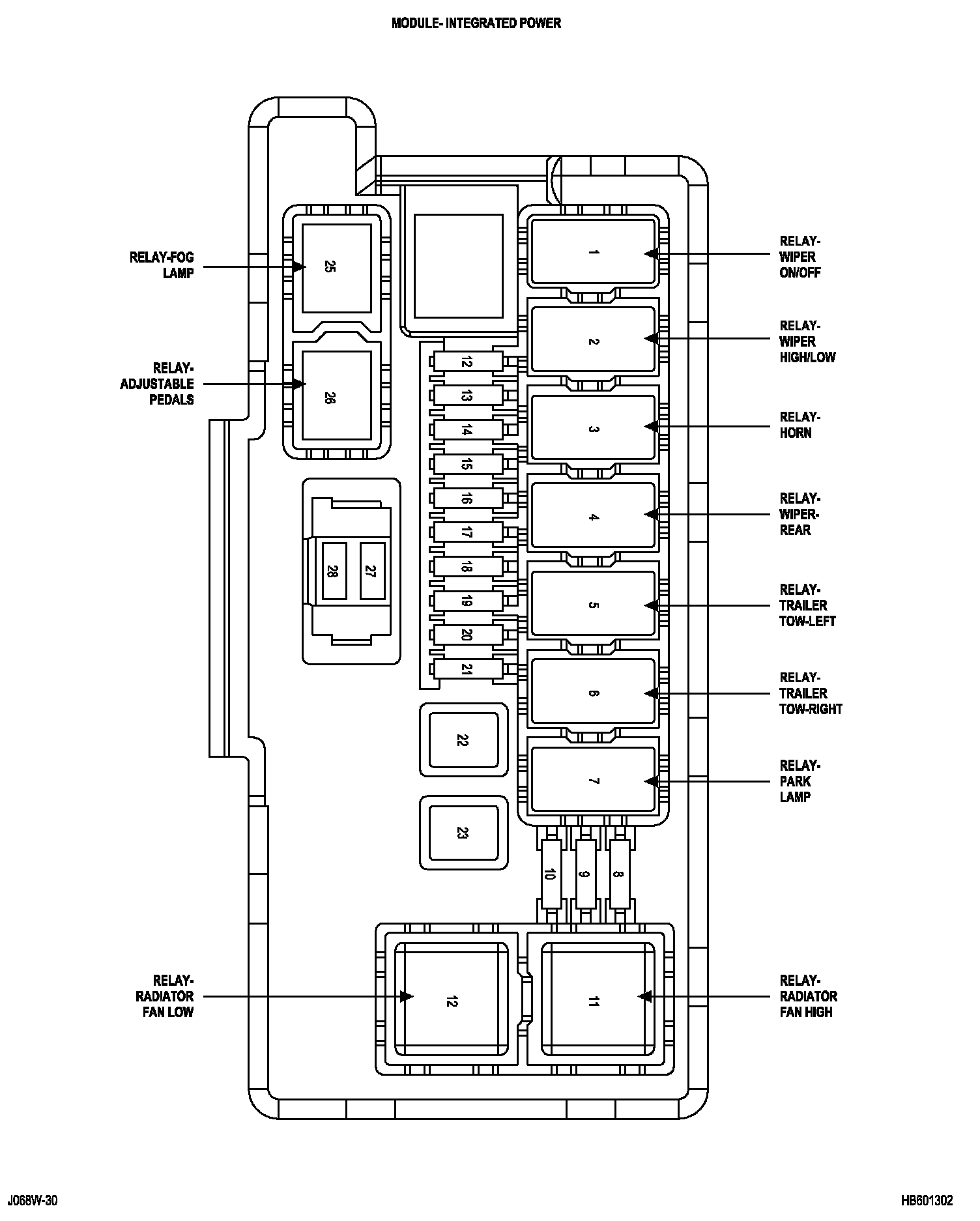

Module Integrated Power:

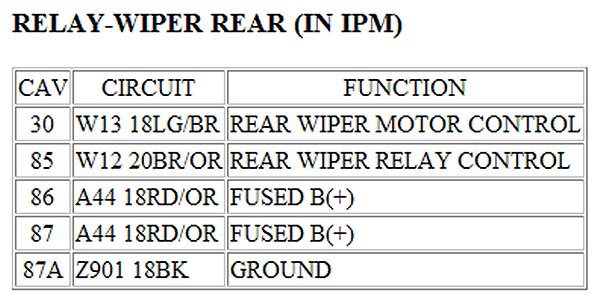

Rear Wiper Relay:
