Home >> Dodge and Ram >> 2006 >> Durango 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Main Relay (Computer/Fuel System)

Main Relay (Computer/Fuel System)

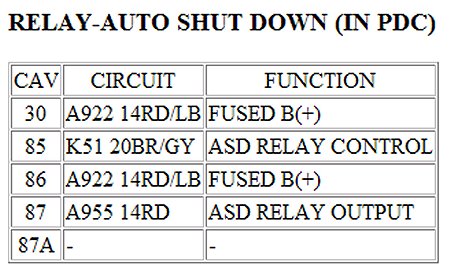

Auto Shut Down Relay:
