Home >> Dodge and Ram >> 2006 >> Durango 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

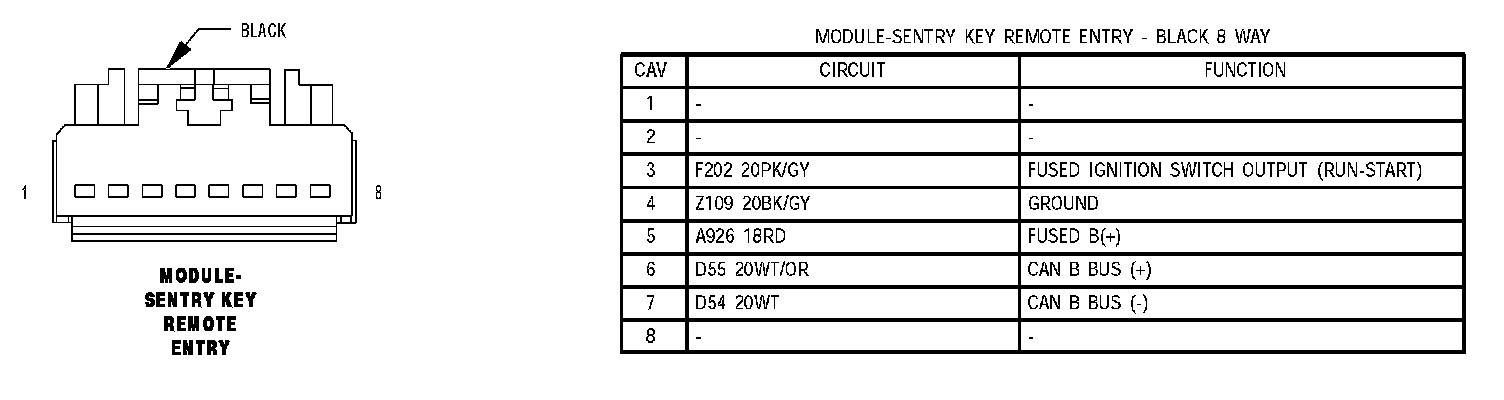

Module Sentry Key Remote Entry:
