Control Module HVAC

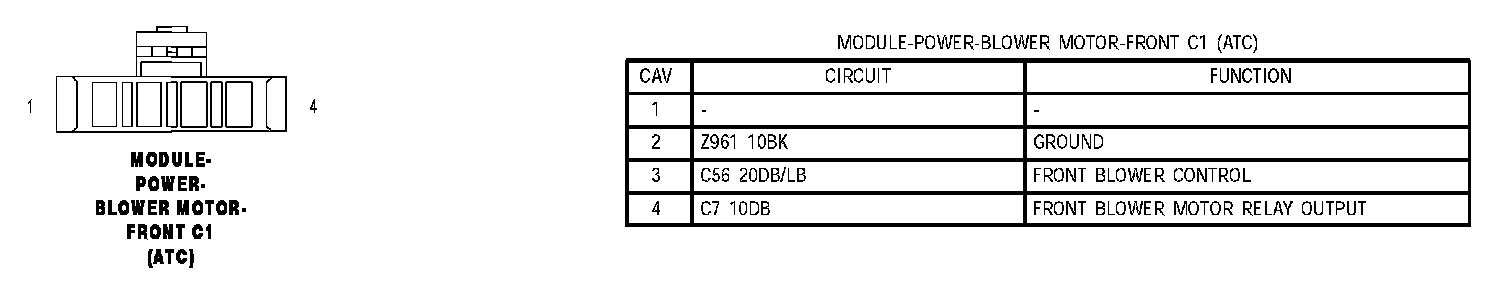

Module Power Blower Motor Front C1 (ATC):

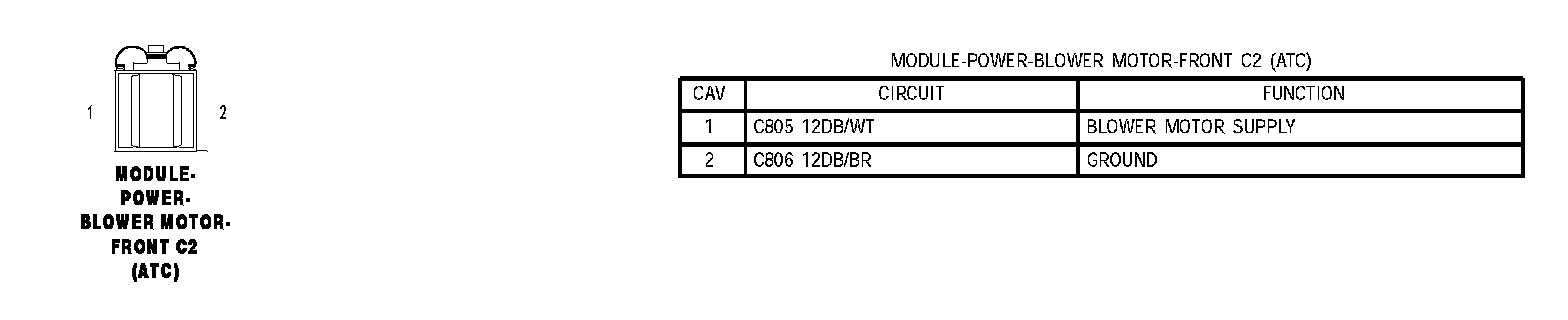

Module Power Blower Motor Front C2 (ATC):
