Home >> Dodge and Ram >> 2006 >> Caravan L4-2.4L VIN B >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Trunk / Liftgate Control Module >> Locations >> Connector Locations

Connector Locations

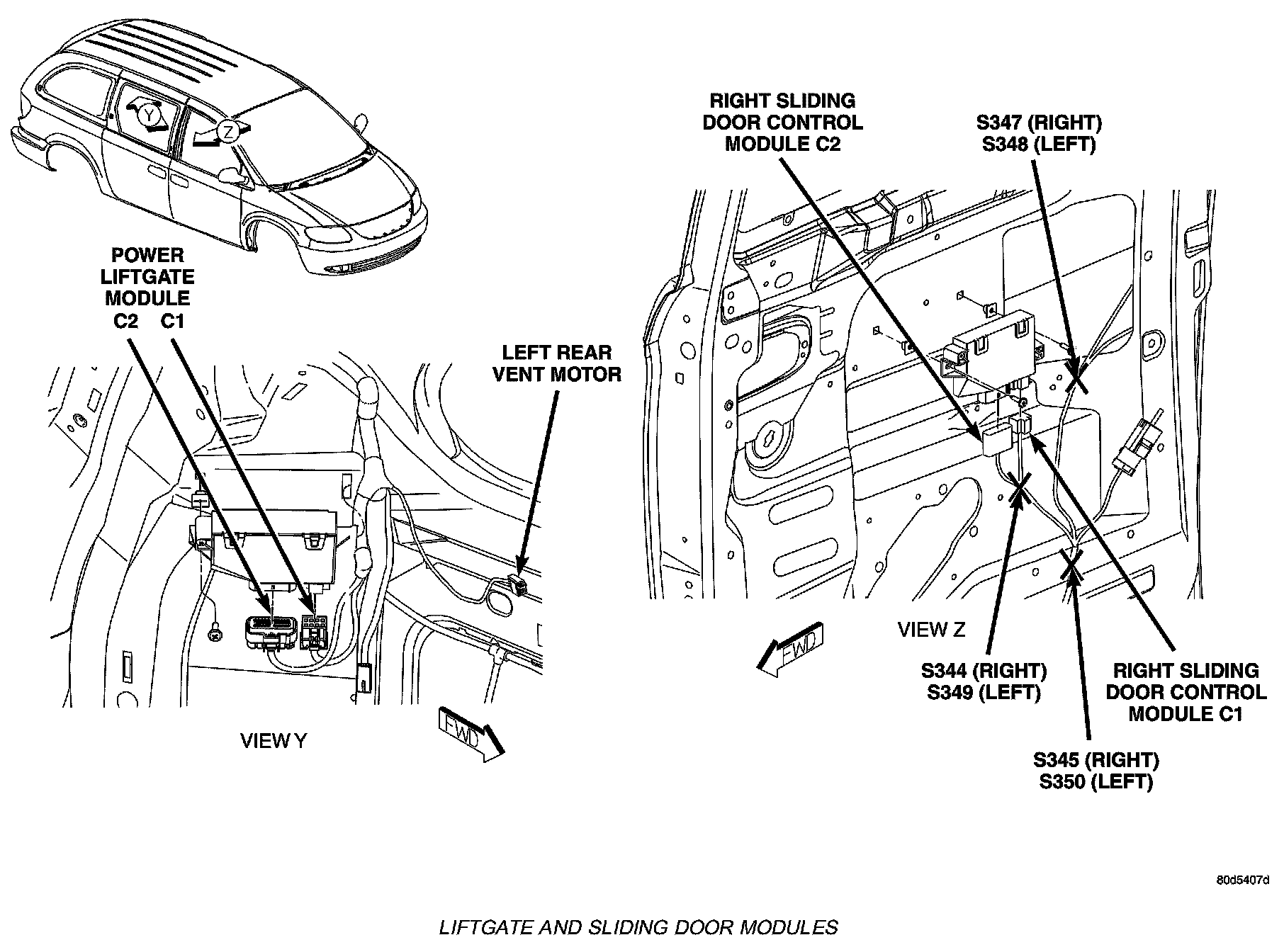

Liftgate and Sliding Door Modules:

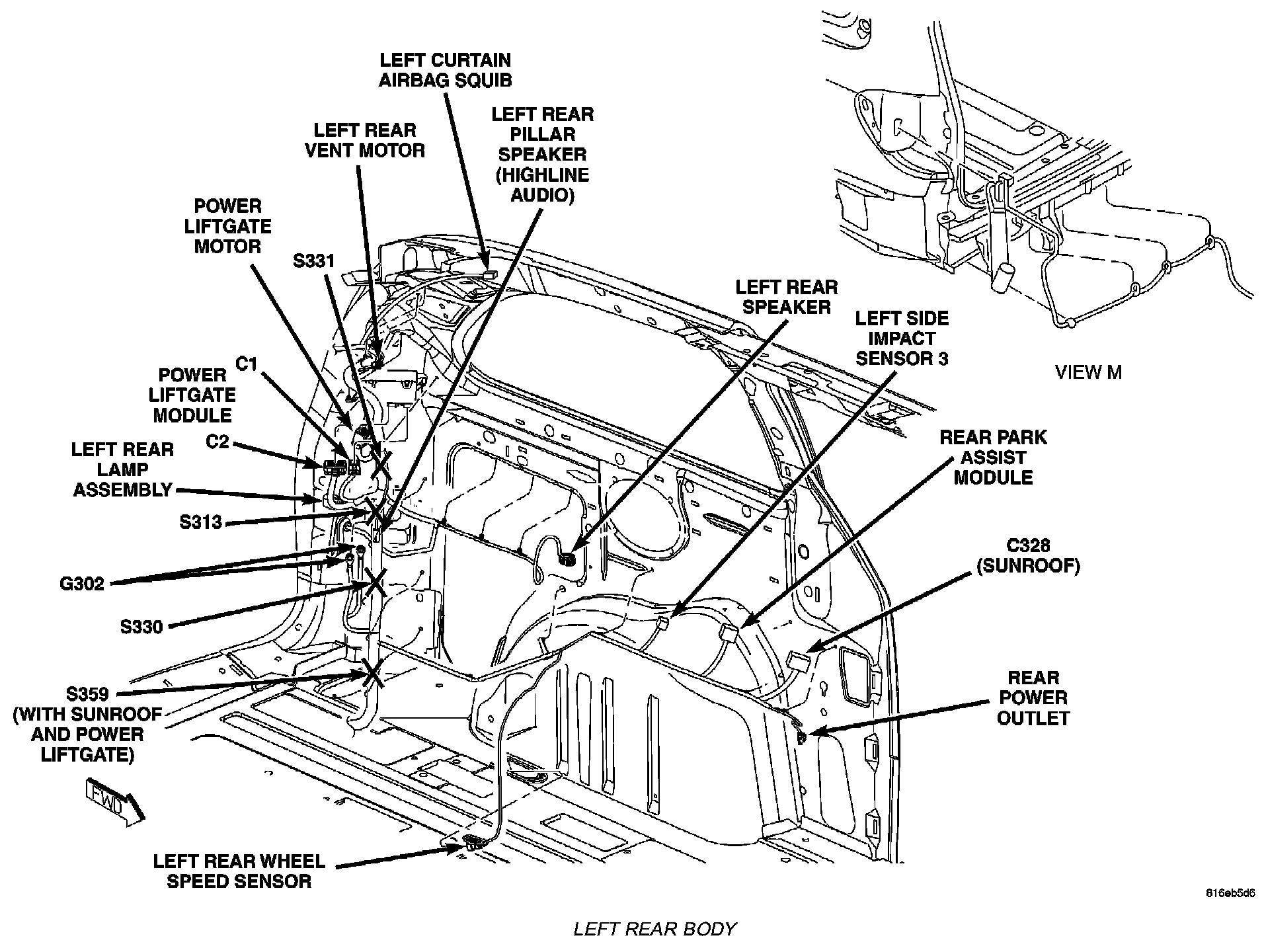

Left Rear Body:
