Control Assembly, HVAC
>>
Rear Blower Motor Power Module
Rear Blower Motor Power Module

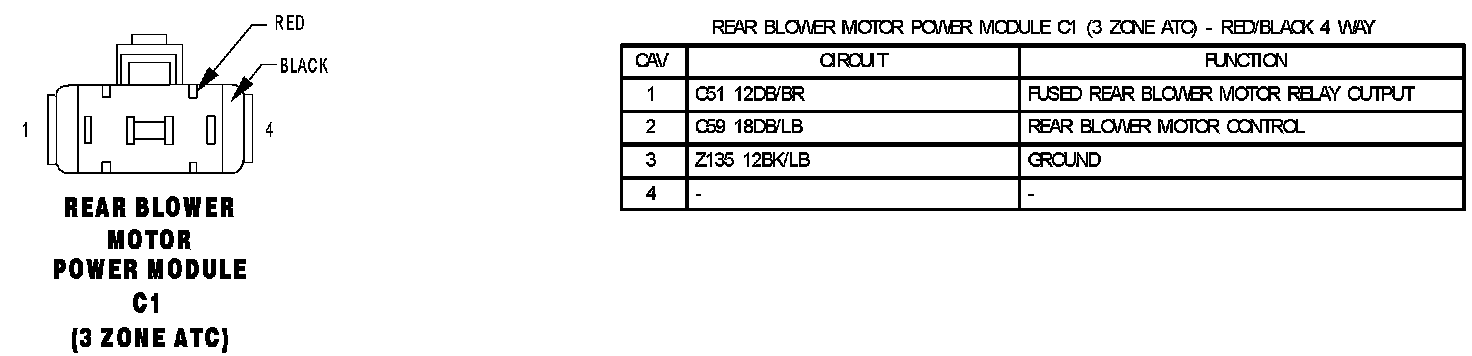

Rear Blower Motor Power Module C1 (3 Zone ATC):

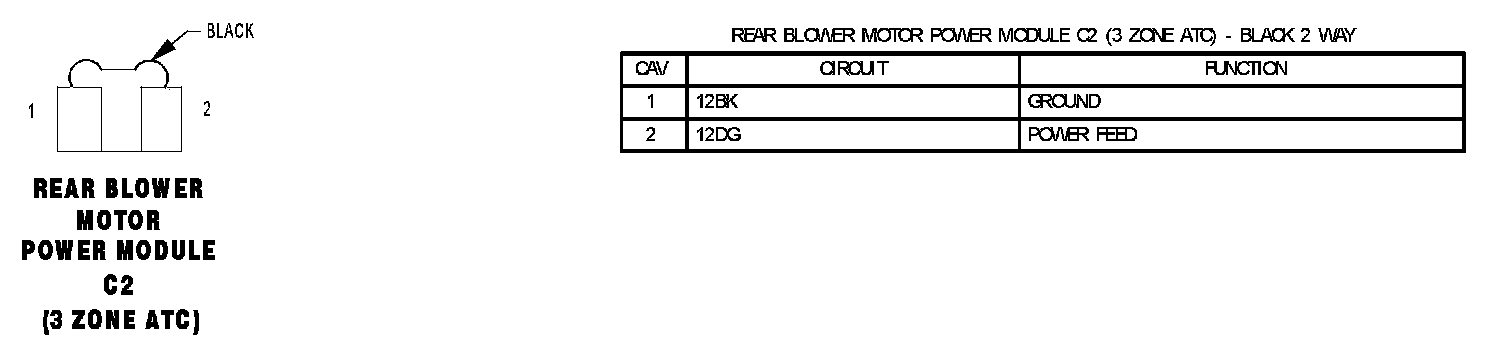

Rear Blower Motor Power Module C2 (3 Zone ATC):
