Air Bag Control Module

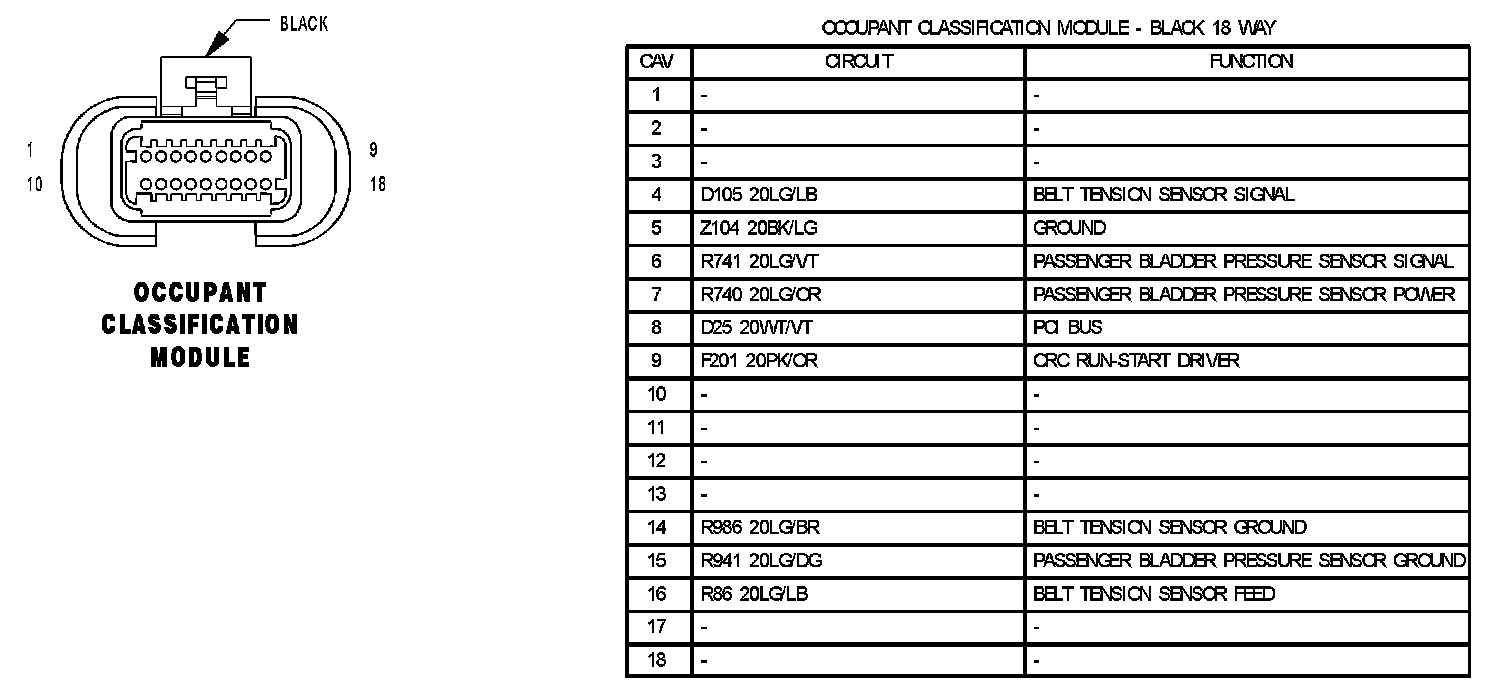

Occupant Classification Module:

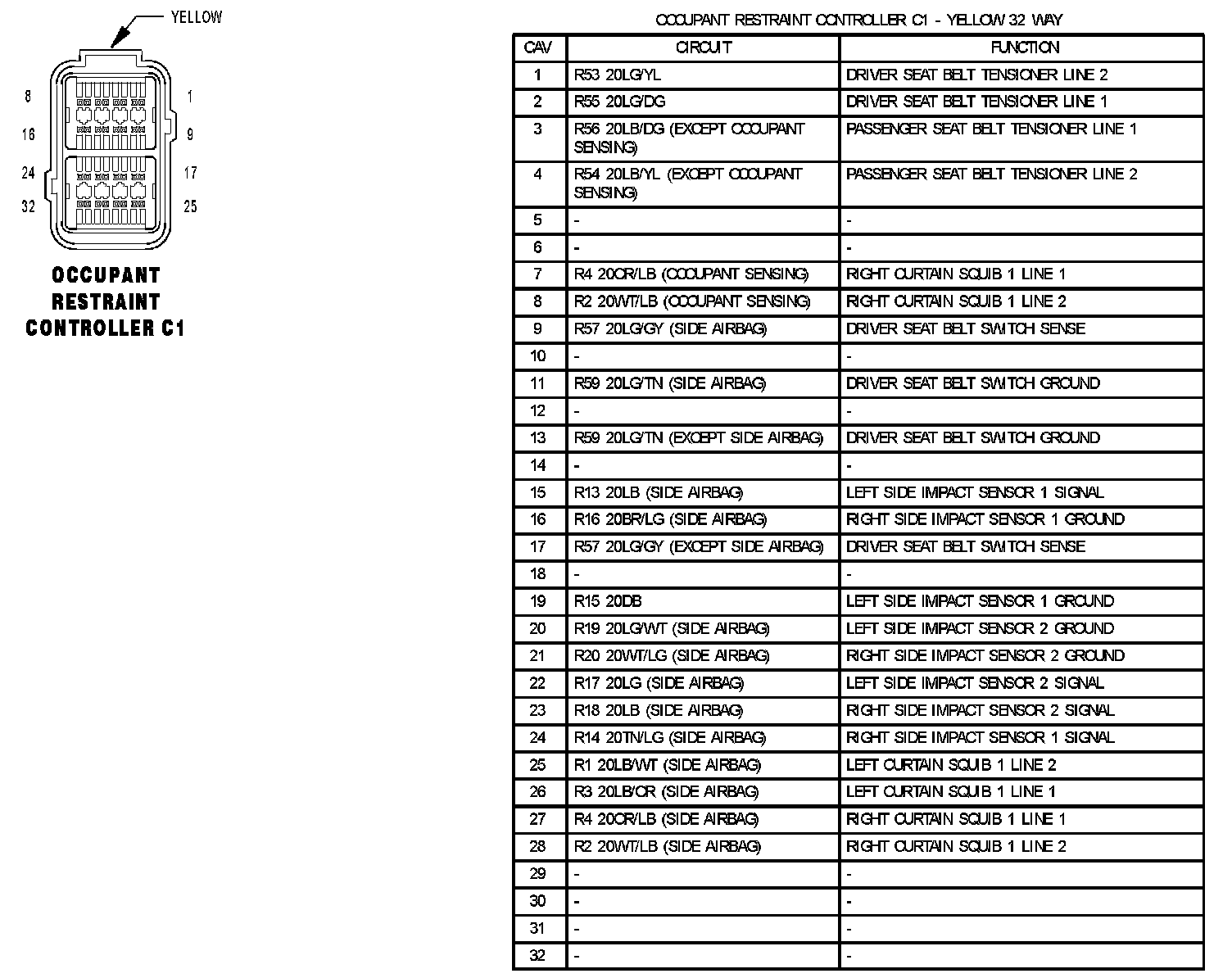

Occupant Restraint Controller C1:

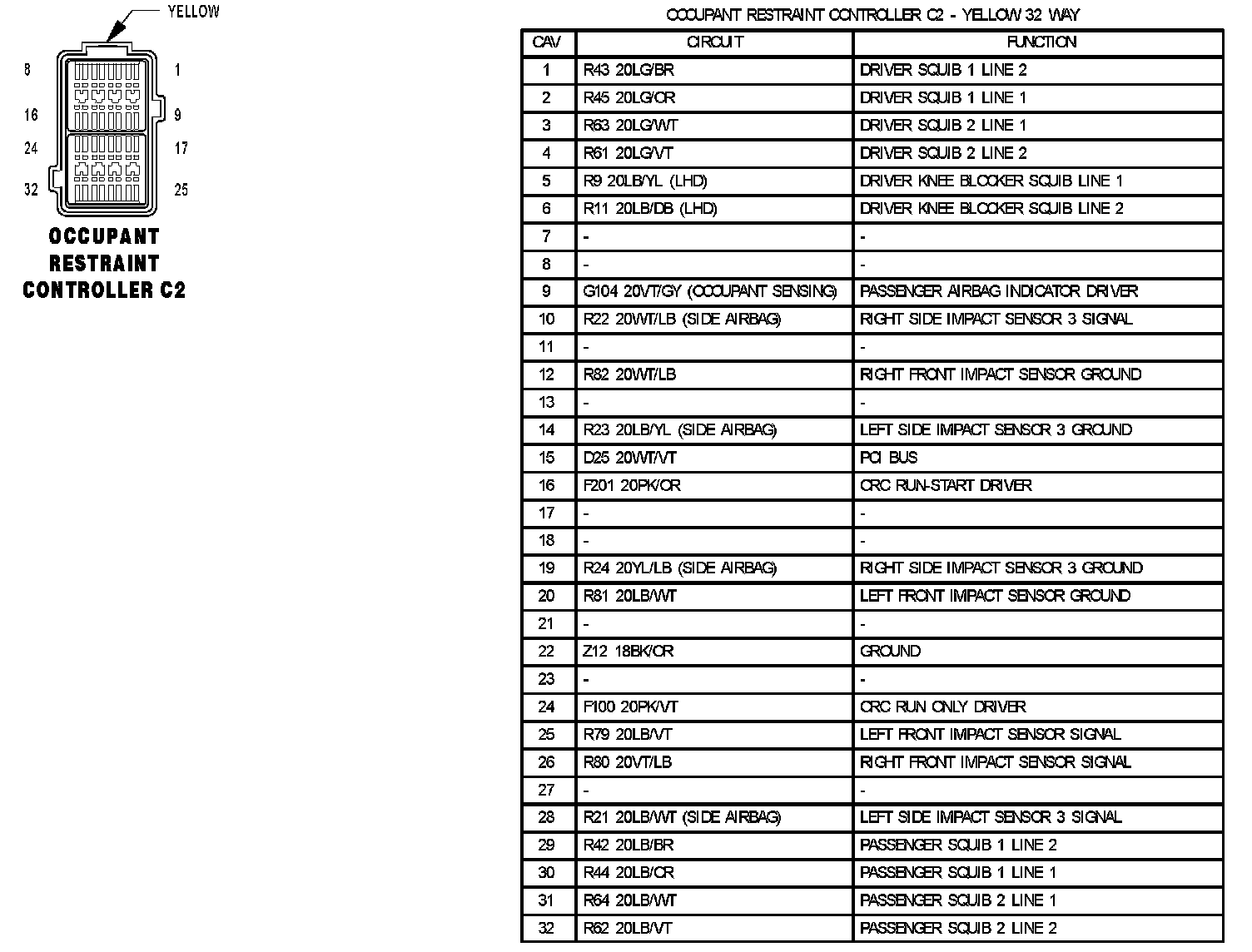

Occupant Restraint Controller C2:
