Connector Locations

Engine Compartment (Left Side) (1.6L/2.0L) LHD:

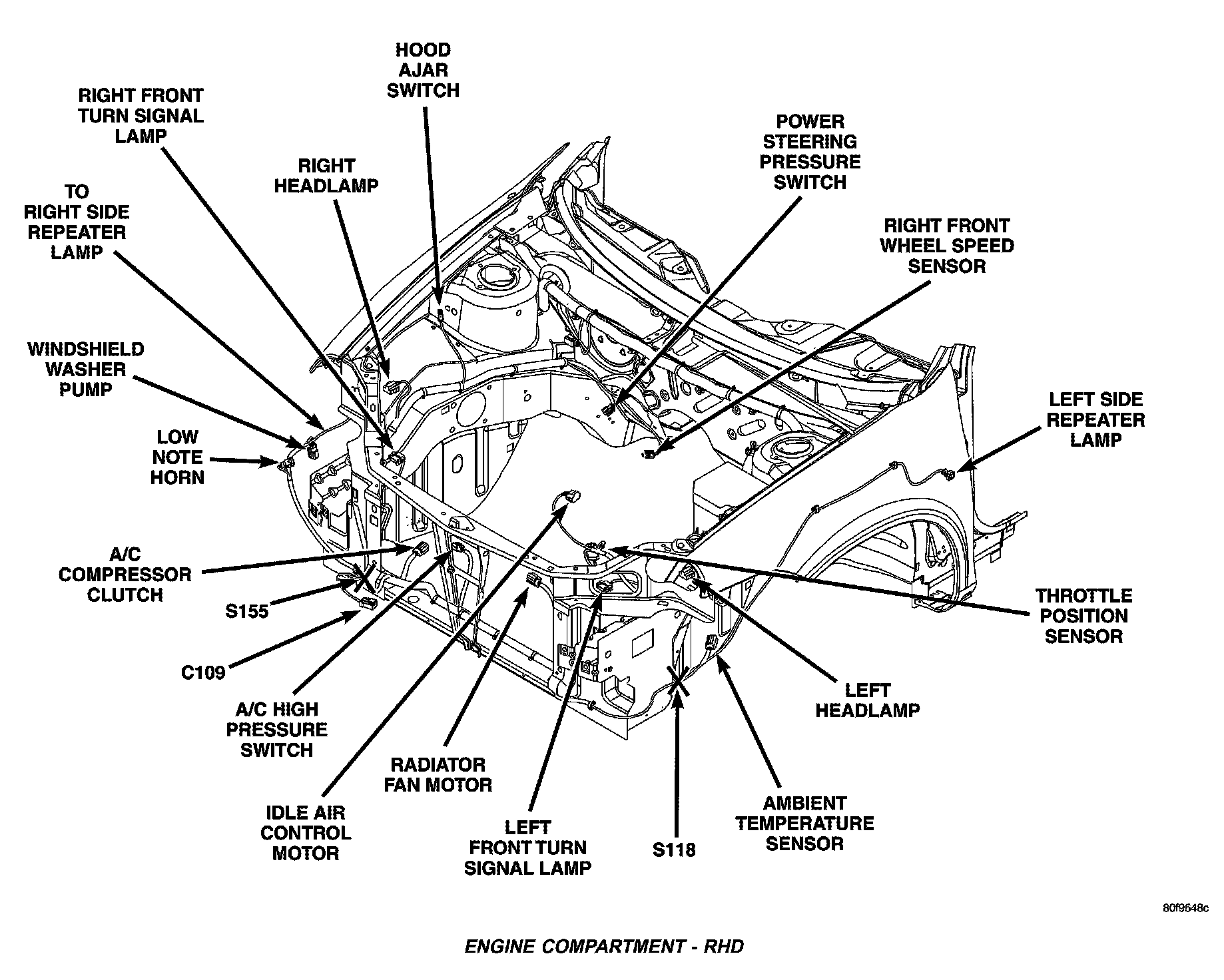

Engine Compartment RHD:

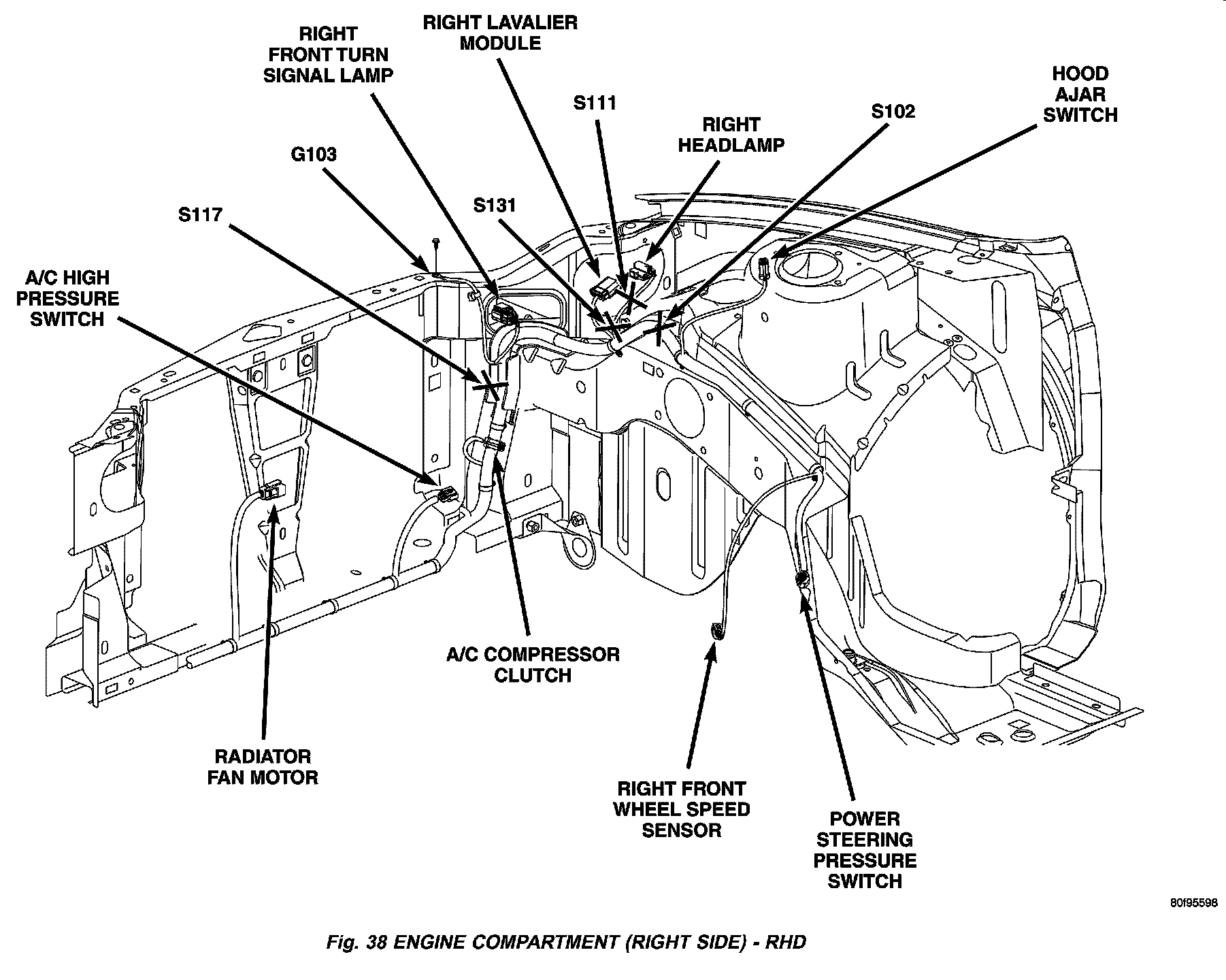

Engine Compartment (Right Side) RHD:
