Home >> Dodge and Ram >> 2004 >> Neon L4-2.0L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft

Axle Shaft

Halfshafts

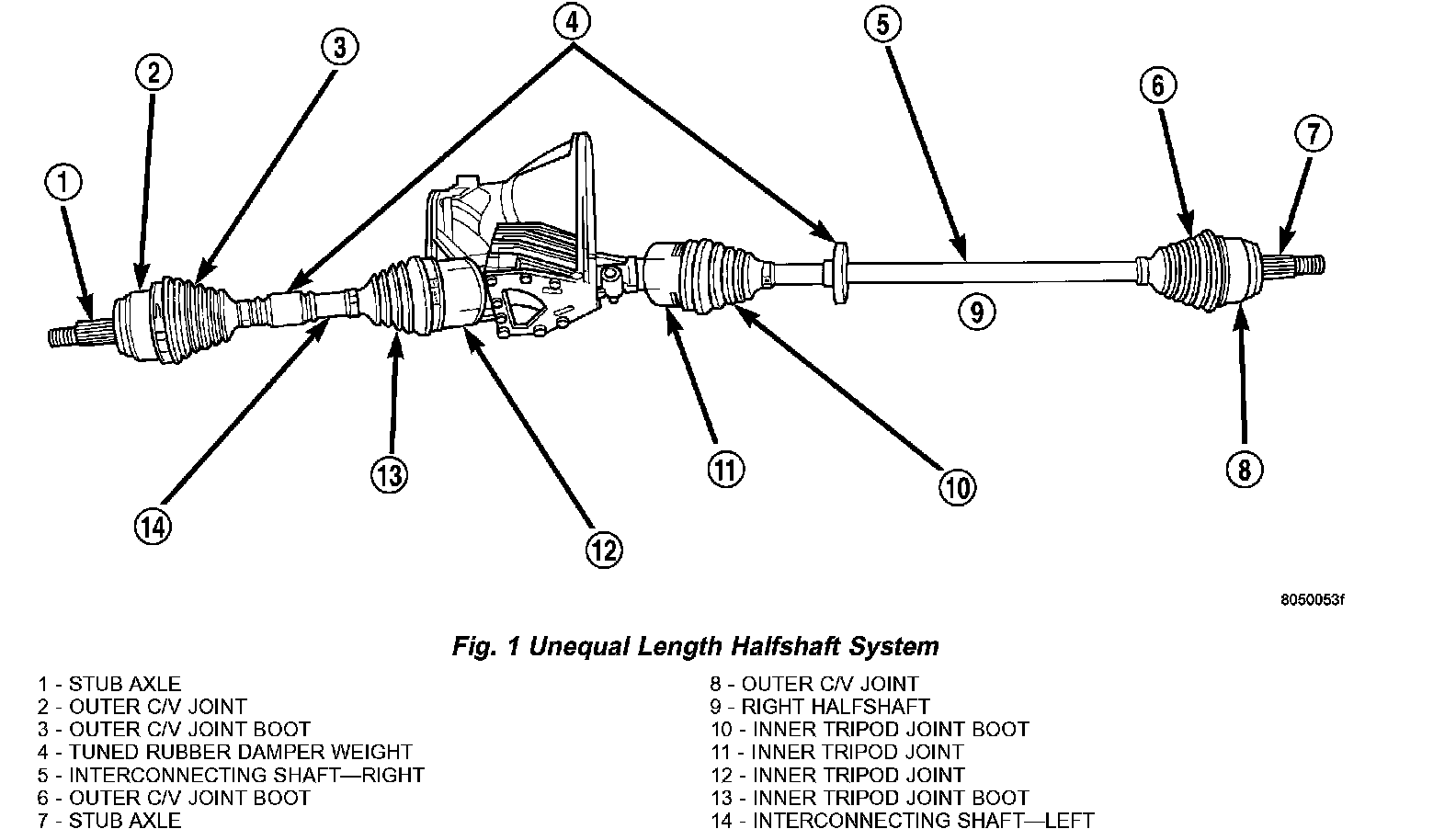

All Models Except 2.41L Turbo

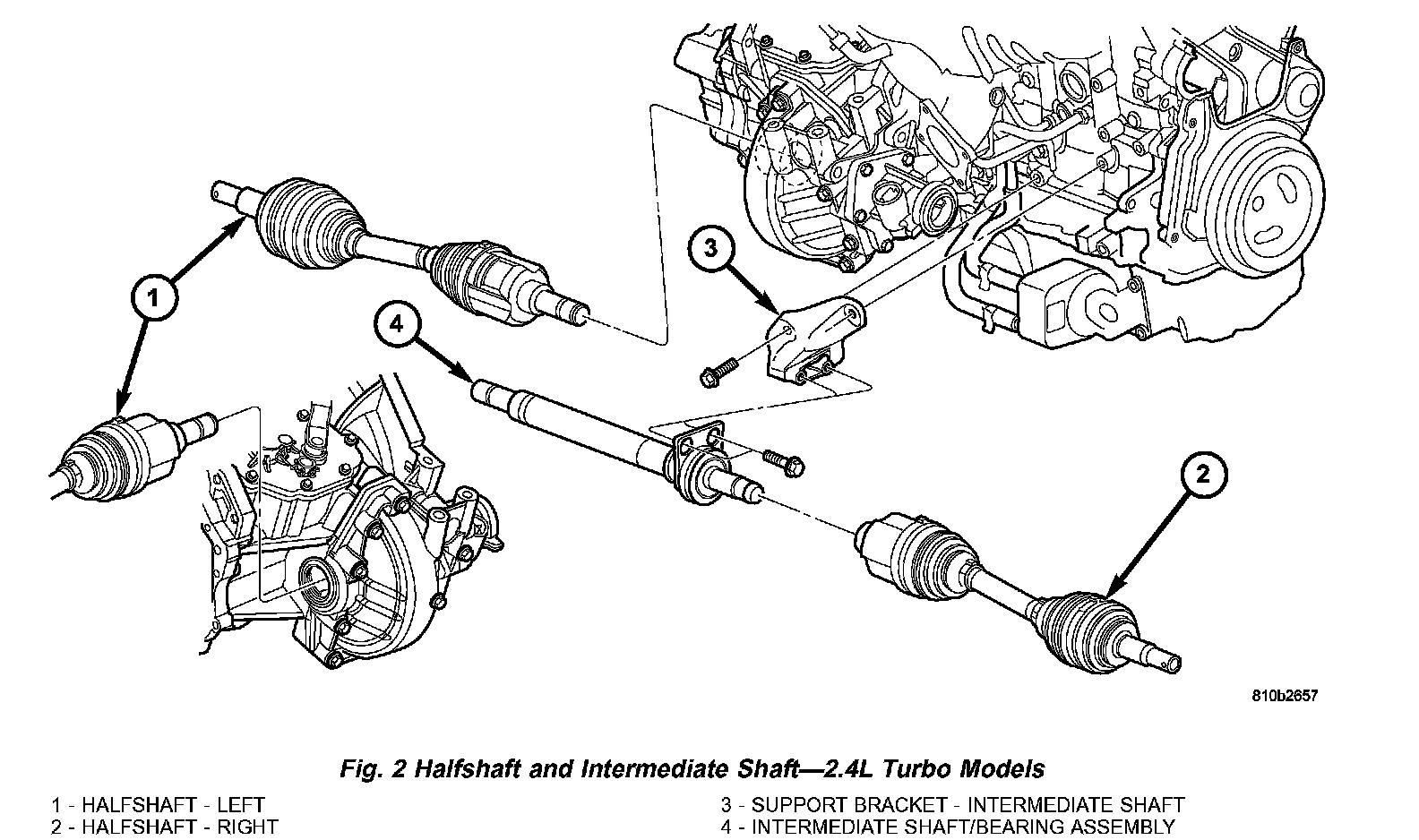

2.41L Turbo-Equipped Models
