Dodge and Ram
>>
2004
>>
Neon L4-2.0L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

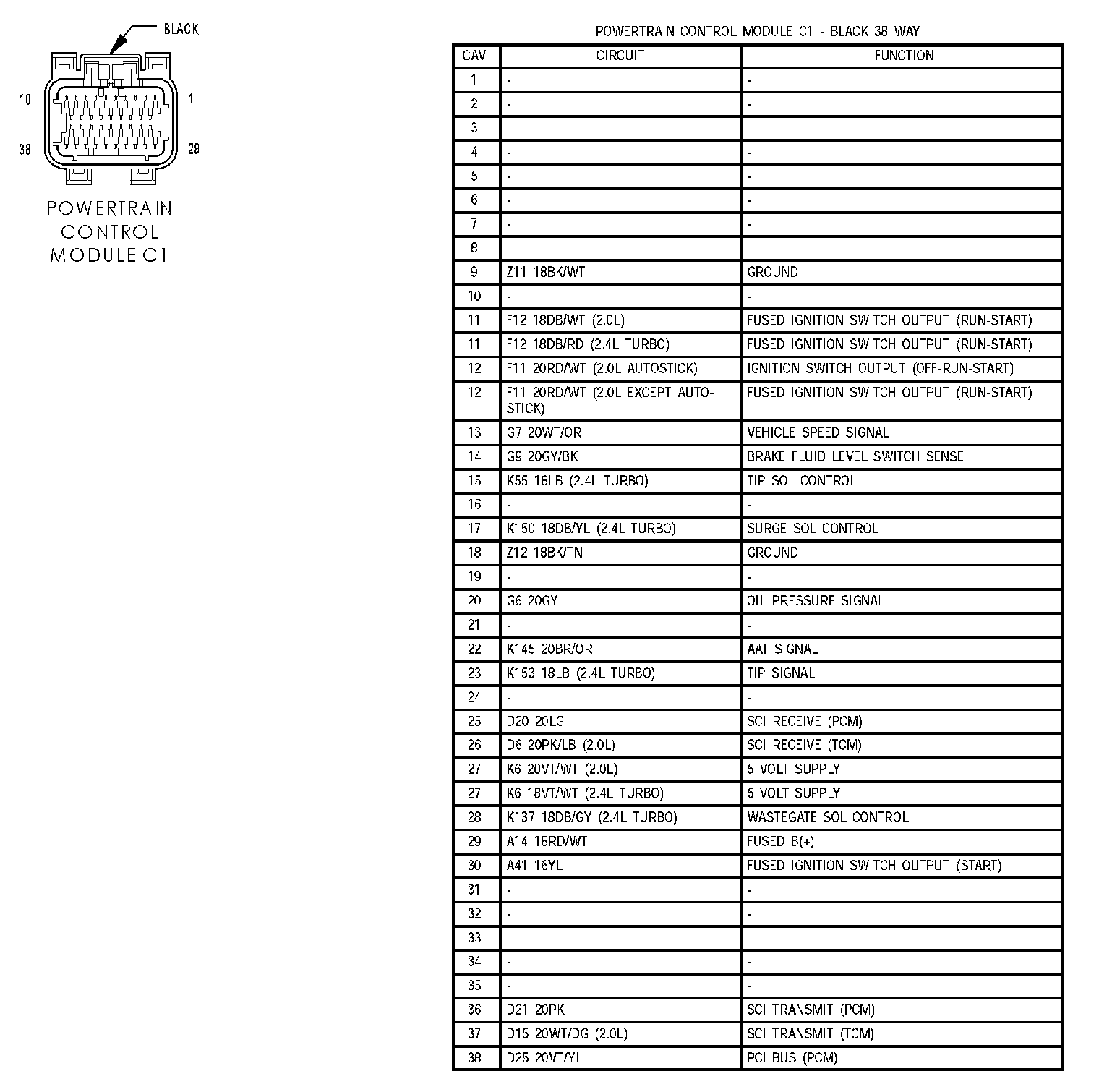

Power Train Control Module C1:

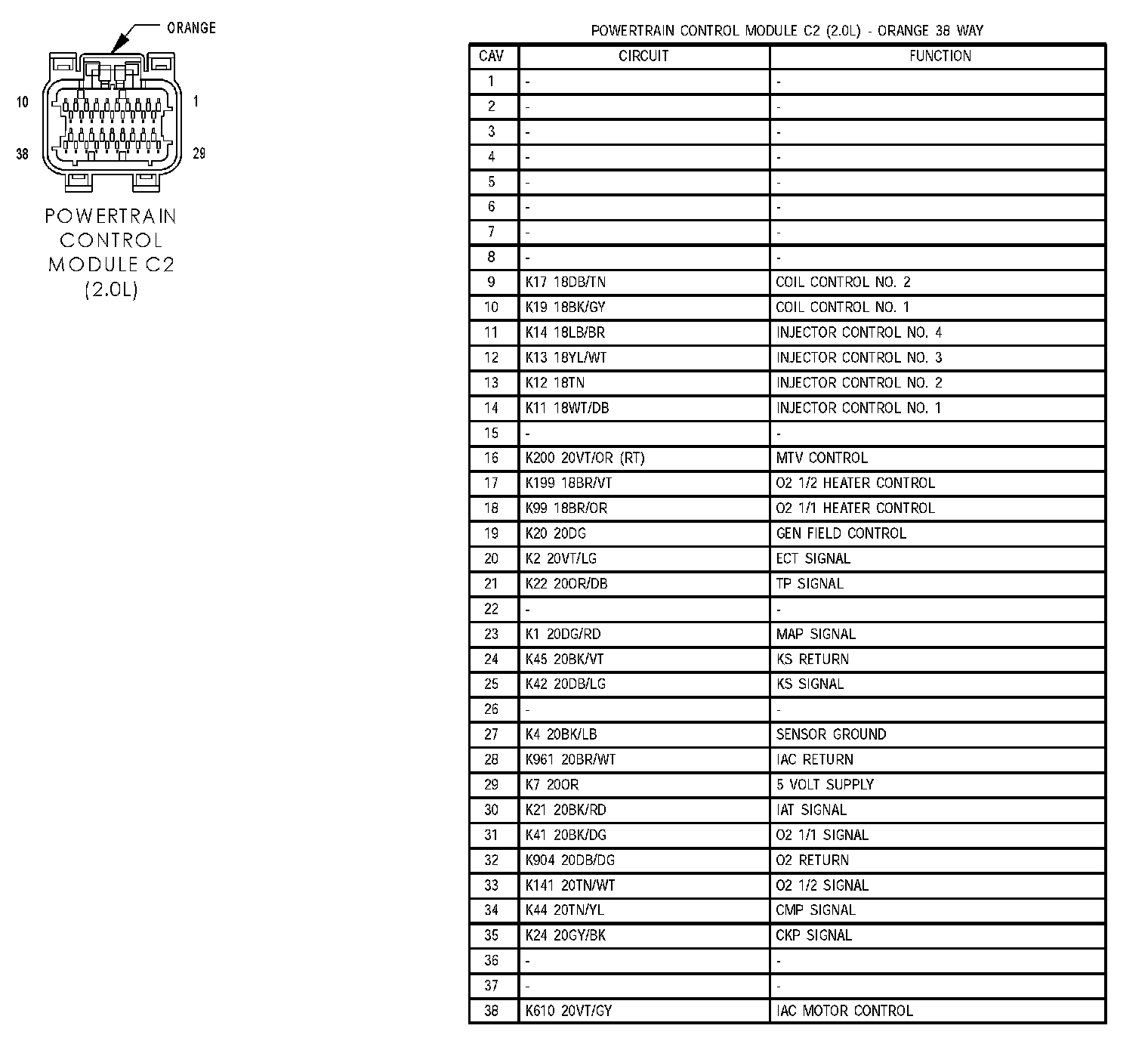

Power Train Control Module C2:

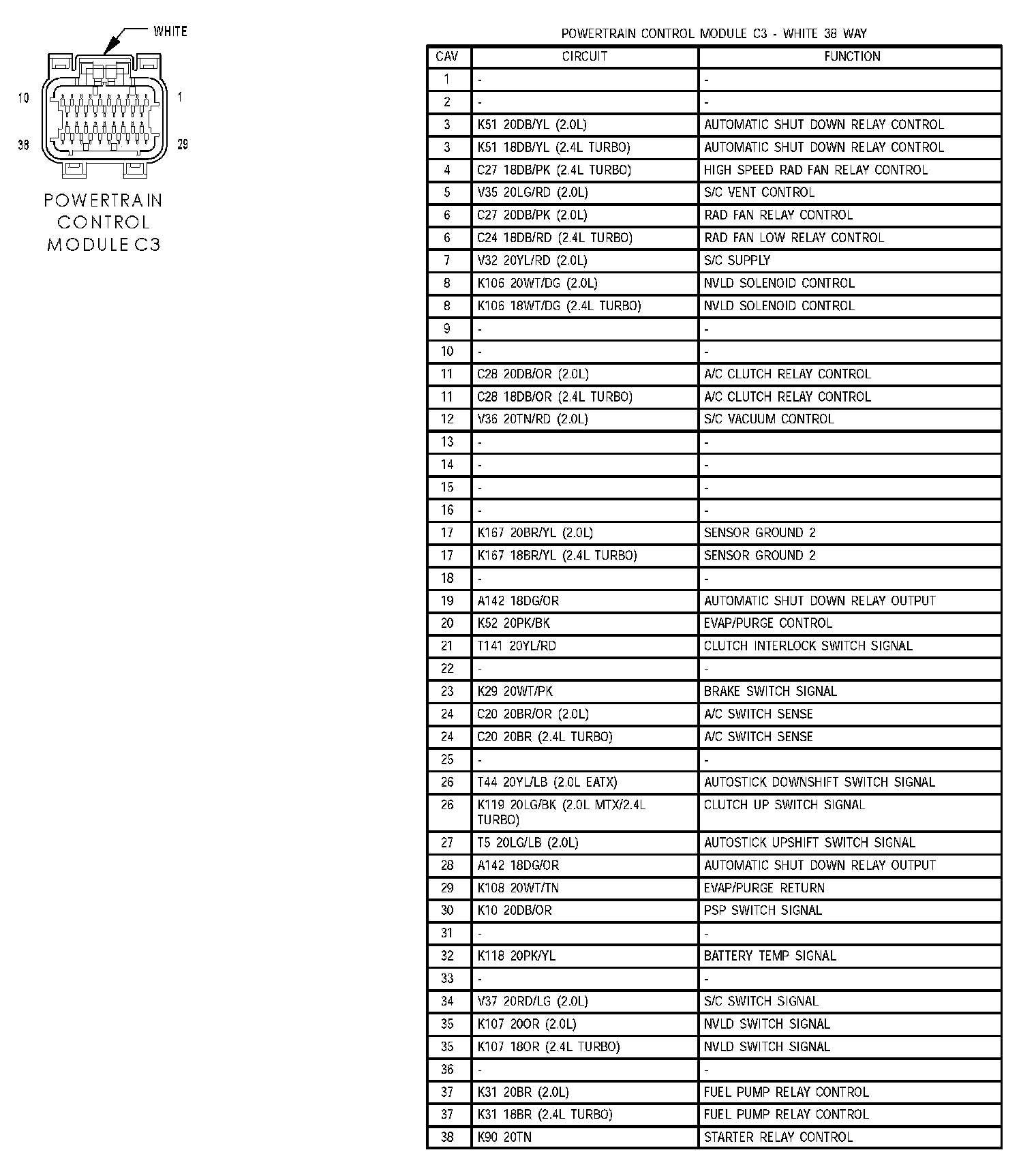

Power Train Control Module C3:

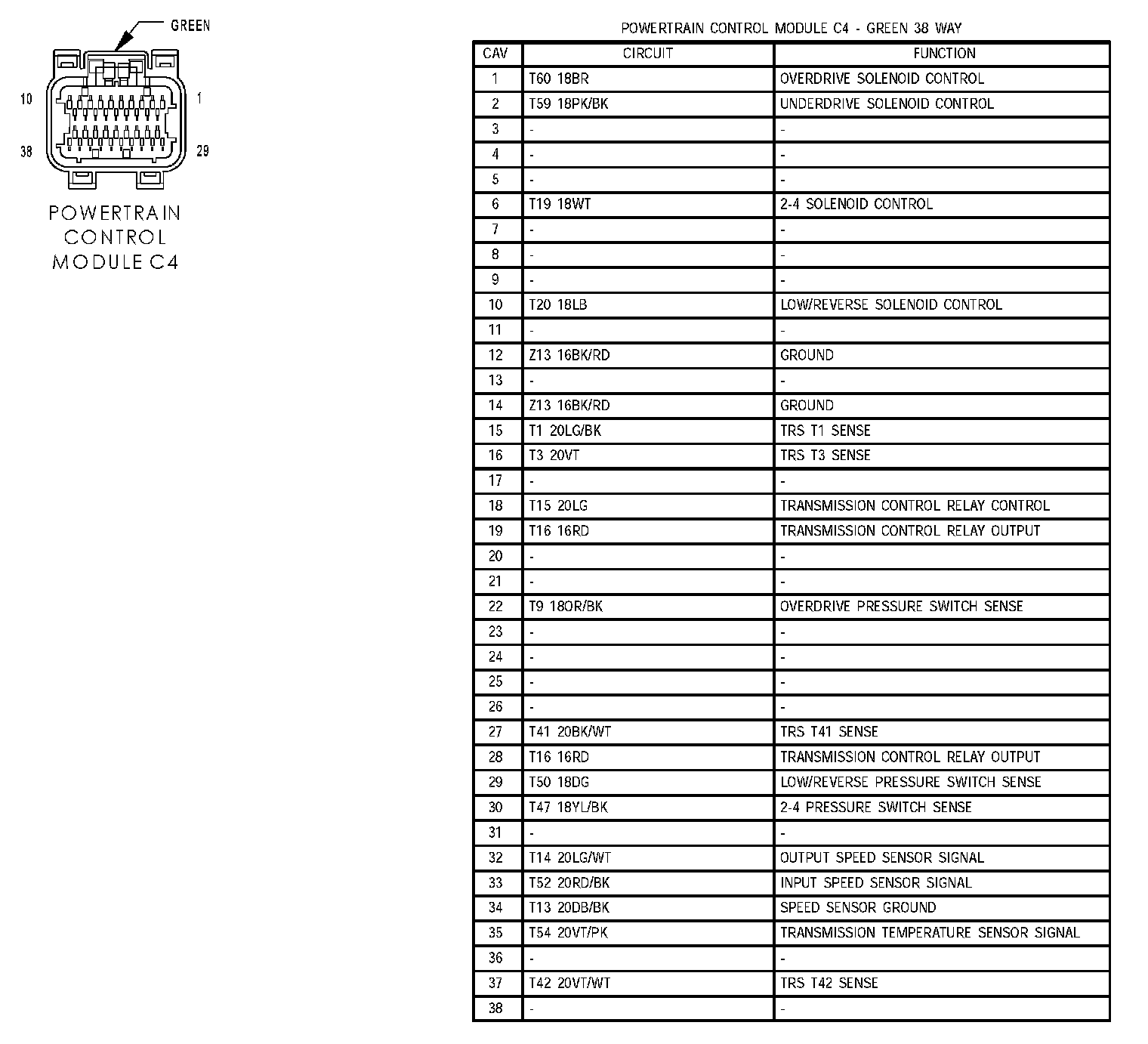

Power Train Control Module C4:
