Junction Block Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the cowl trim cover (Refer to BODY/INTERIOR/COWL TRIM COVER - REMOVAL).

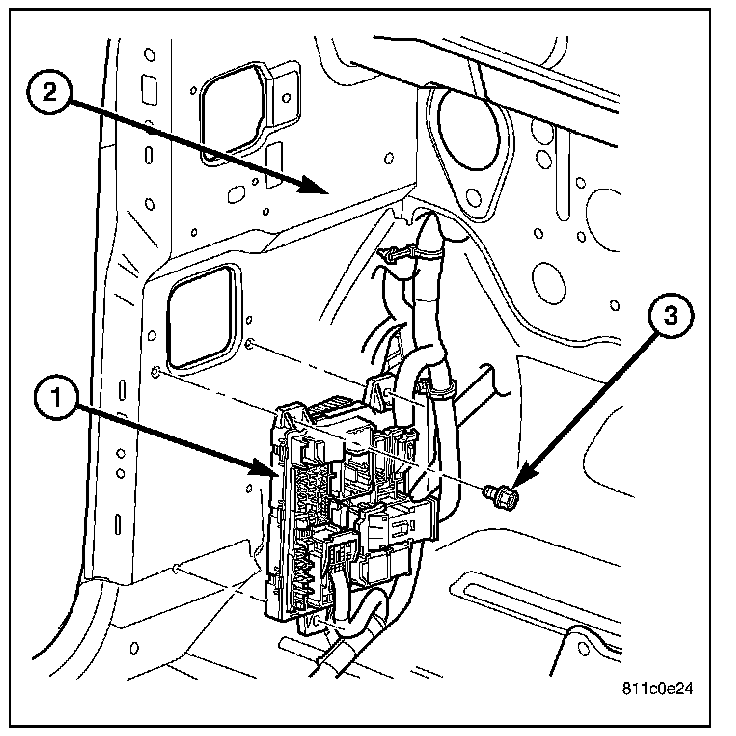

3. Remove the mounting fasteners (3).
4. Disconnect the electrical harness connectors and remove Junction Block (1).
5. Transfer components as necessary.




INSTALLATION
1. Connect wire harness connectors to the Junction Block (JB) (1).
2. Position JB and install mounting fasteners (3).
3. Install cowl trim cover (Refer to BODY/INTERIOR/COWL TRIM COVER - INSTALLATION).
4. Connect the battery negative cable.
