Durango 2WD V8-5.7L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Module
Power Distribution Module

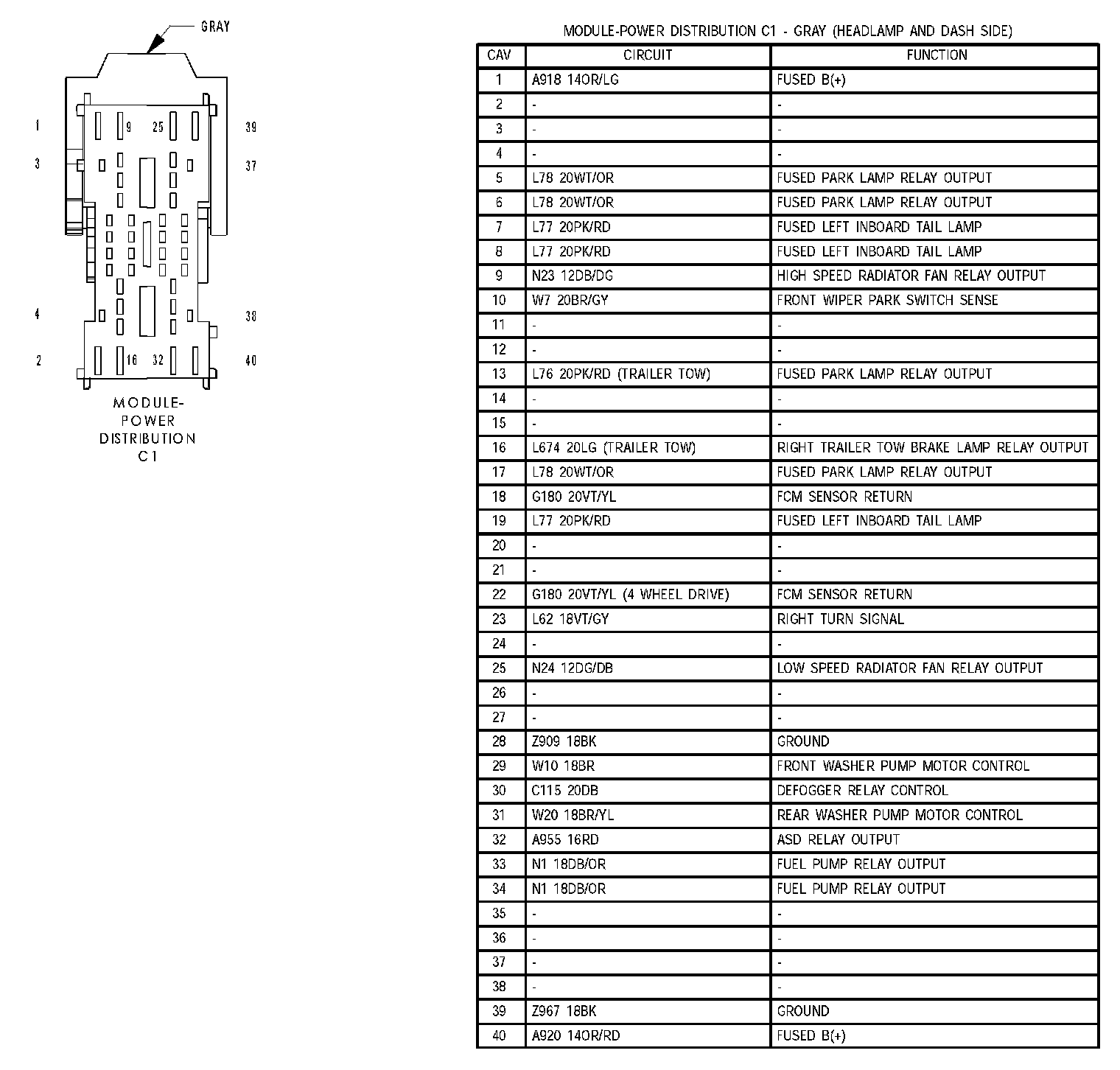

Module Power Distribution C1:

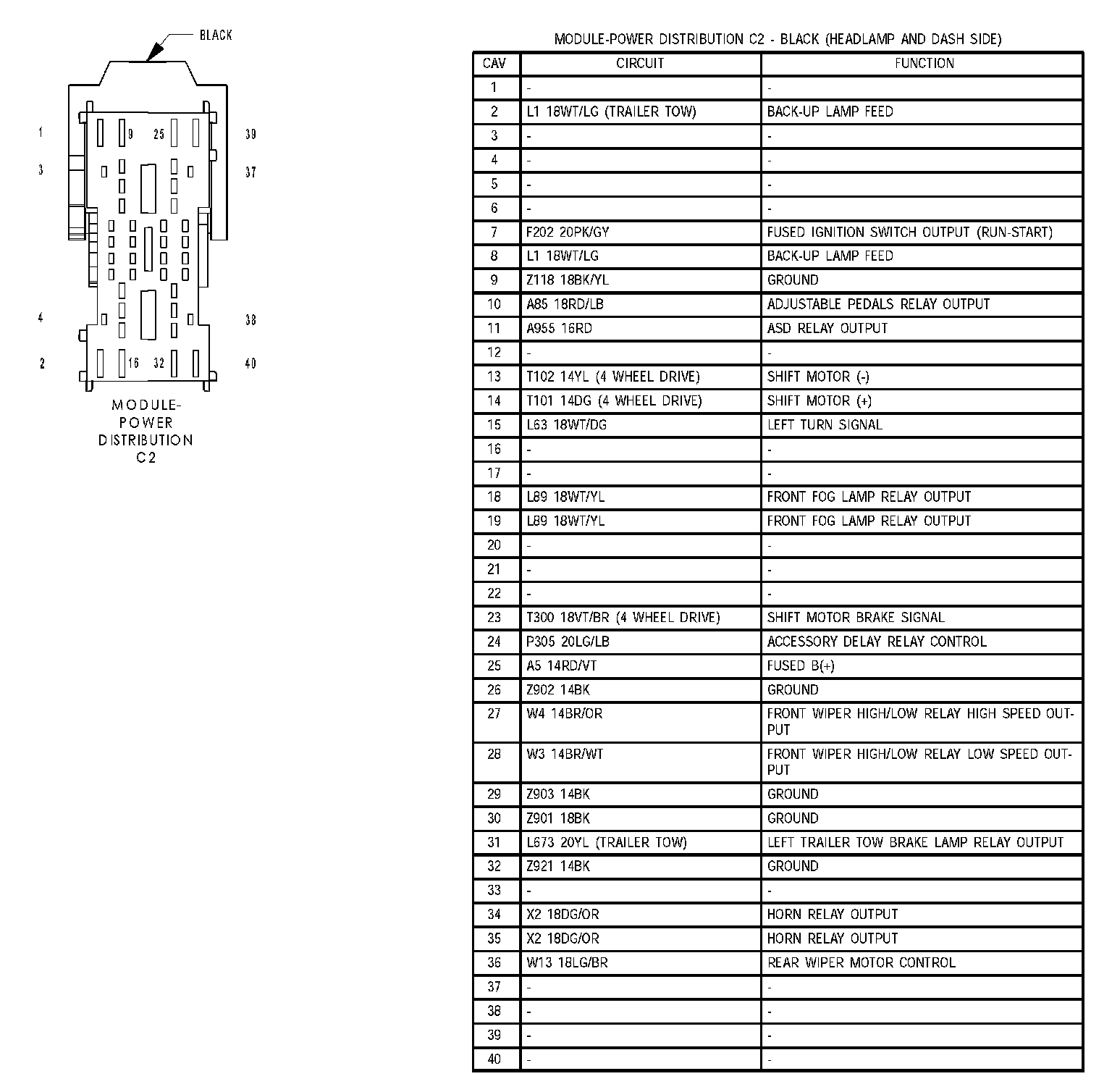

Module Power Distribution C2:
