Engine Control Module

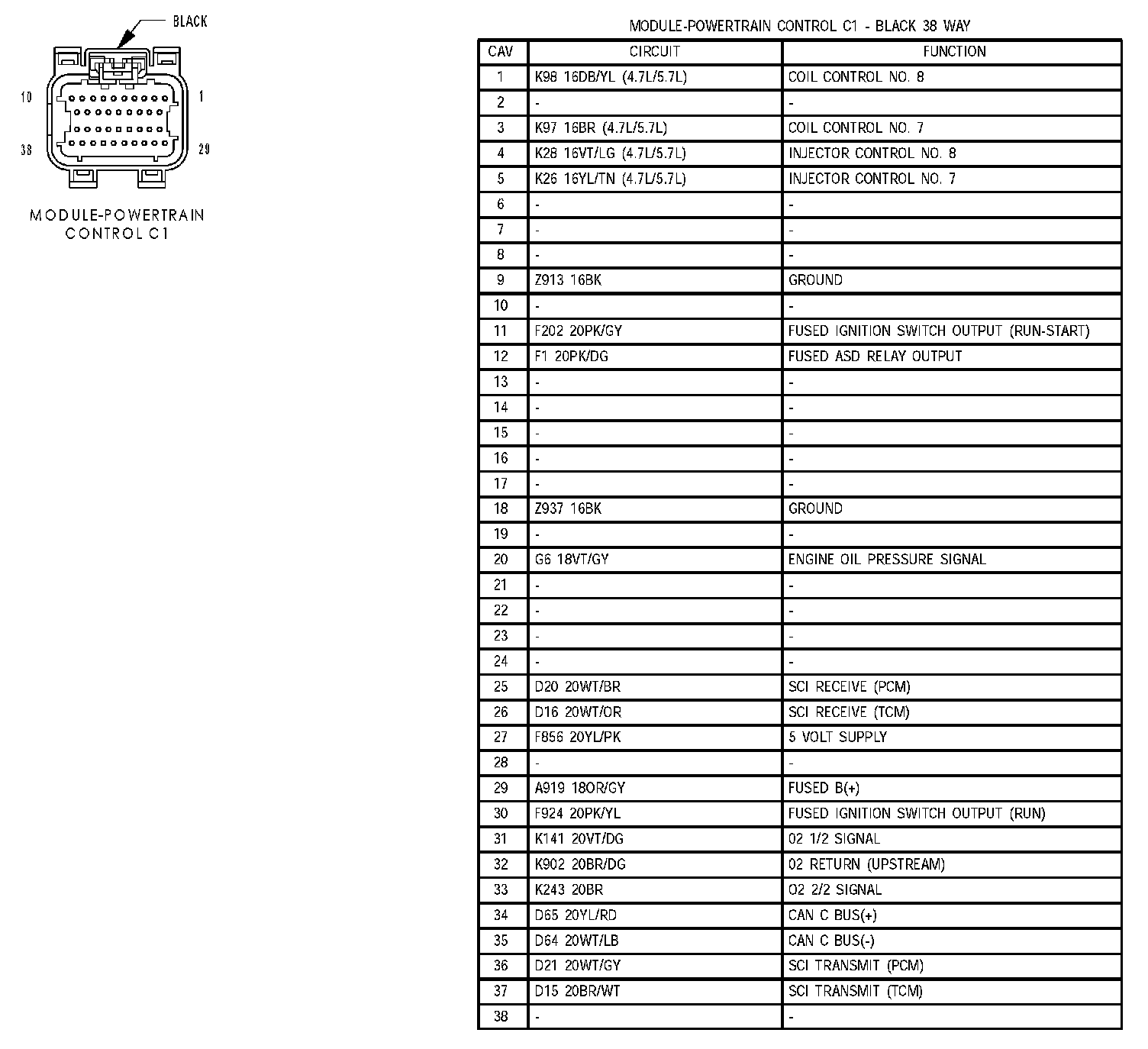

Module Powertrain Control C1:

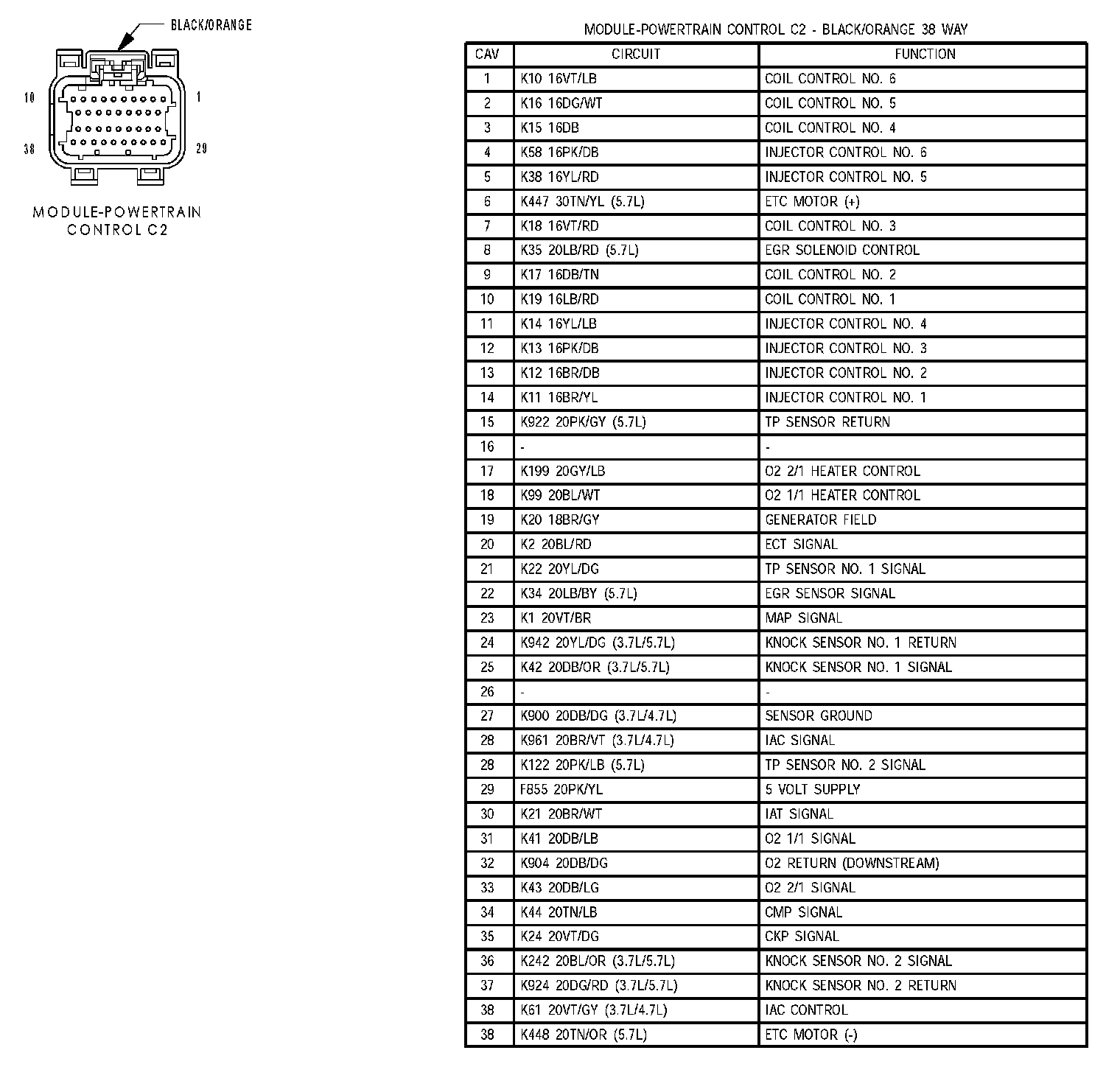

Module Powertrain Control C2:

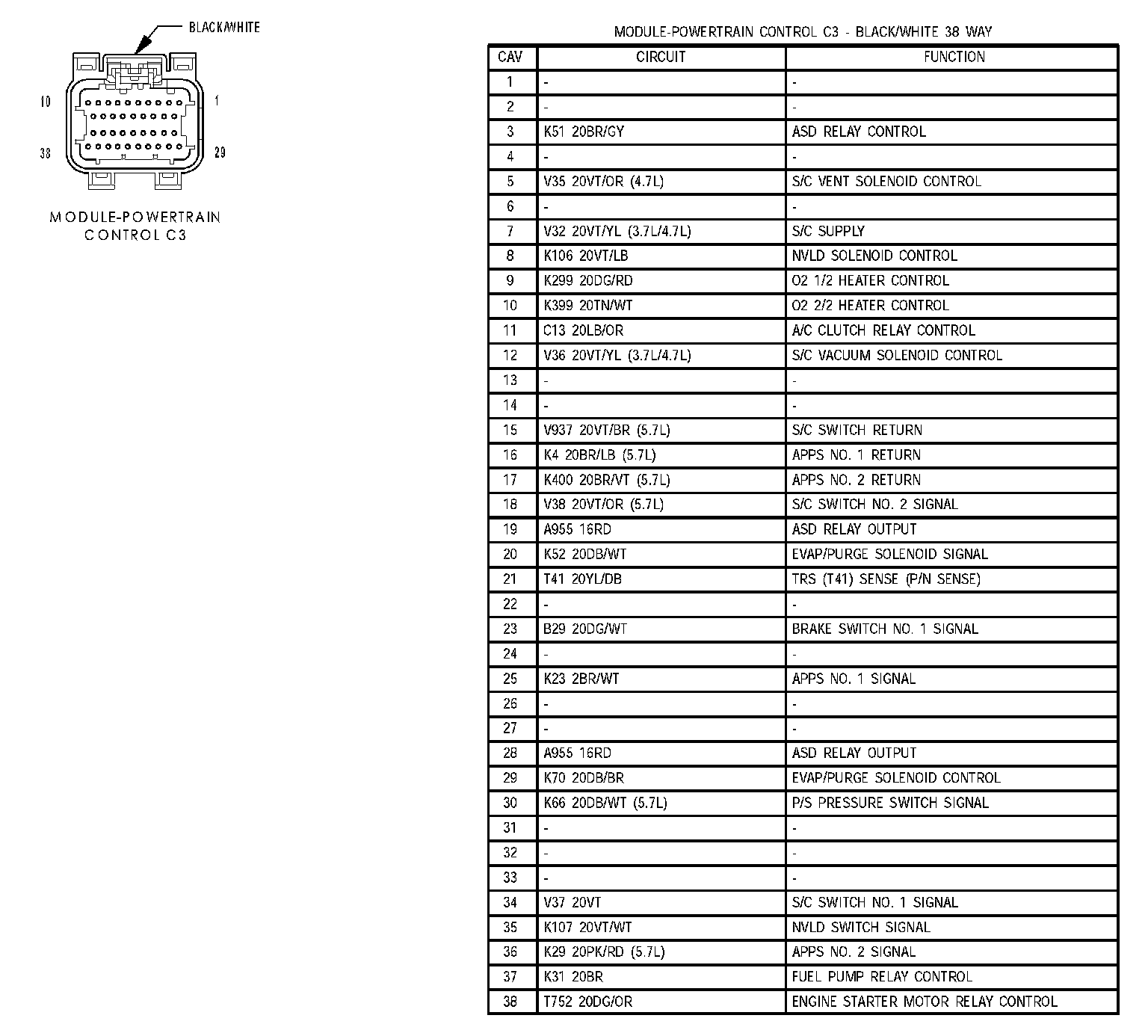

Module Powertrain Control C3:

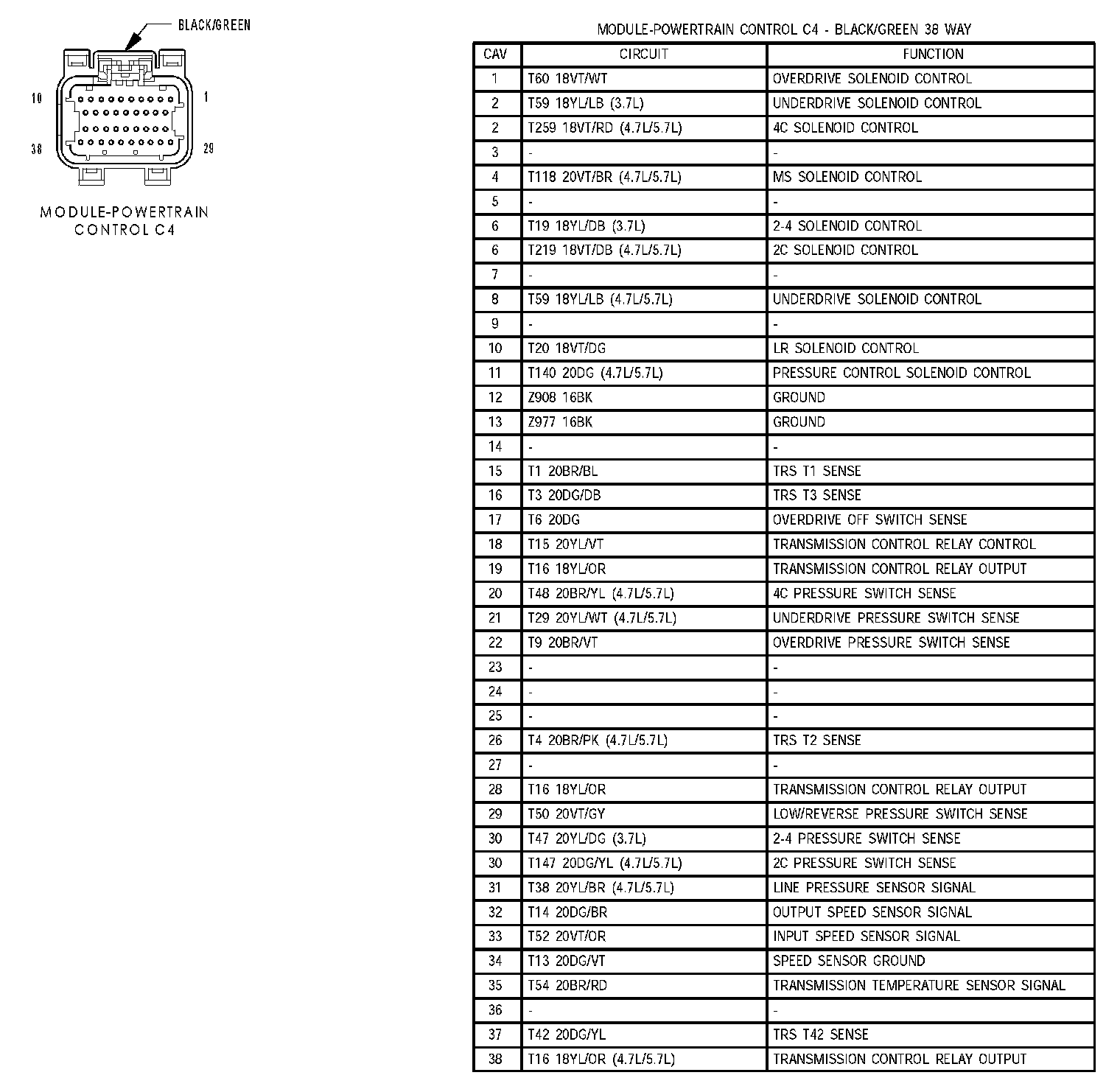

Module Powertrain Control C4:
