Home >> Dodge and Ram >> 2004 >> Durango 2WD V8-5.7L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

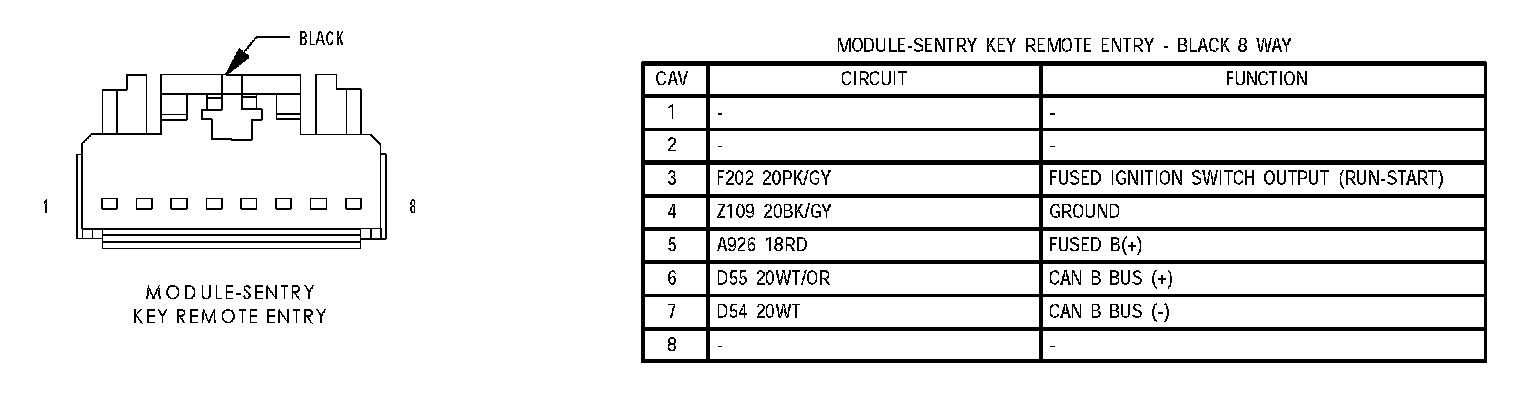

Alarm Module, (Vehicle Antitheft)

Module Sentry Key Remote Entry:
