Home >> Dodge and Ram >> 2004 >> Durango 2WD V8-5.7L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

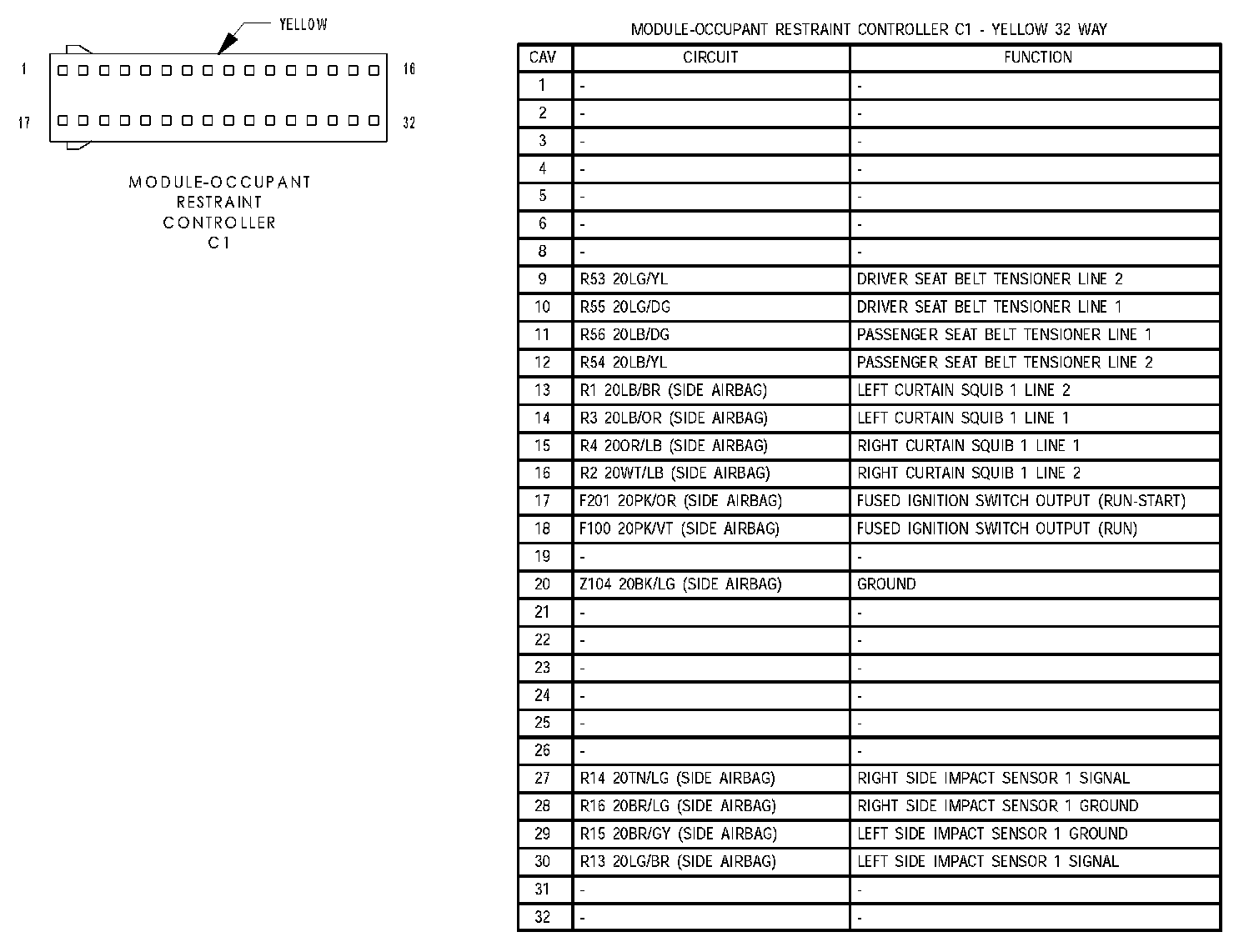

Module Occupant Restraint Controller C1:



Module Occupant Restraint Controller C2 (SAR):
