Fluid Level Check Using Scan Tool

FLUID LEVEL CHECK USING SCAN TOOL





Note: Engine and Transmission should be at normal operating temperature before performing this procedure.

1. Start engine and apply parking brake.
2. Connect scan tool and select transmission.
3. Select sensors.
4. Read the transmission temperature value.
5. Compare the fluid temperature value with the chart.

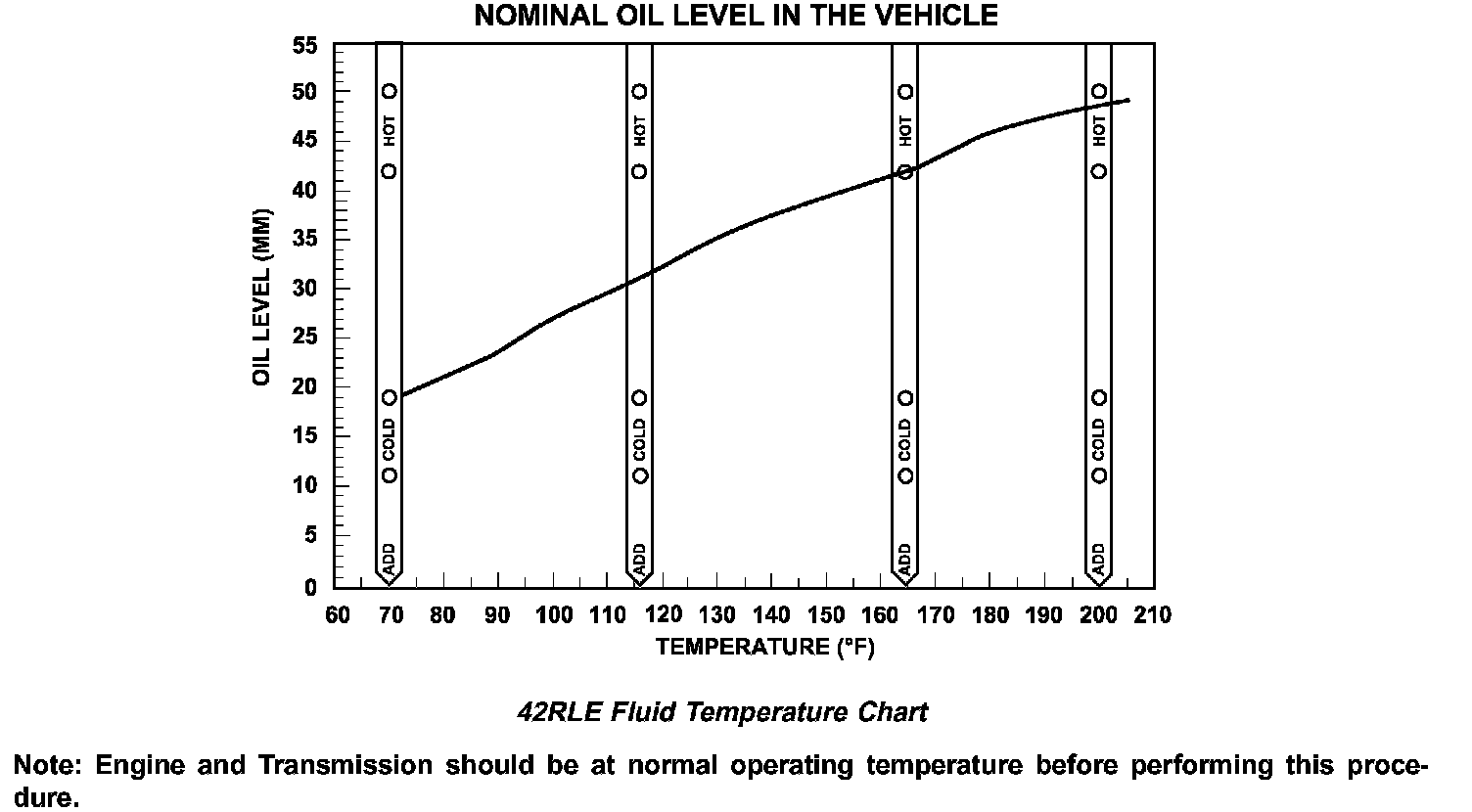

6. Adjust transmission fluid level shown on the dipstick according to the 42RLE Fluid Temperature Chart. Use only Mopar ATF +4, Automatic Transmission Fluid.
7. Check transmission for leaks.
