Dodge and Ram
>>
2004
>>
Durango 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

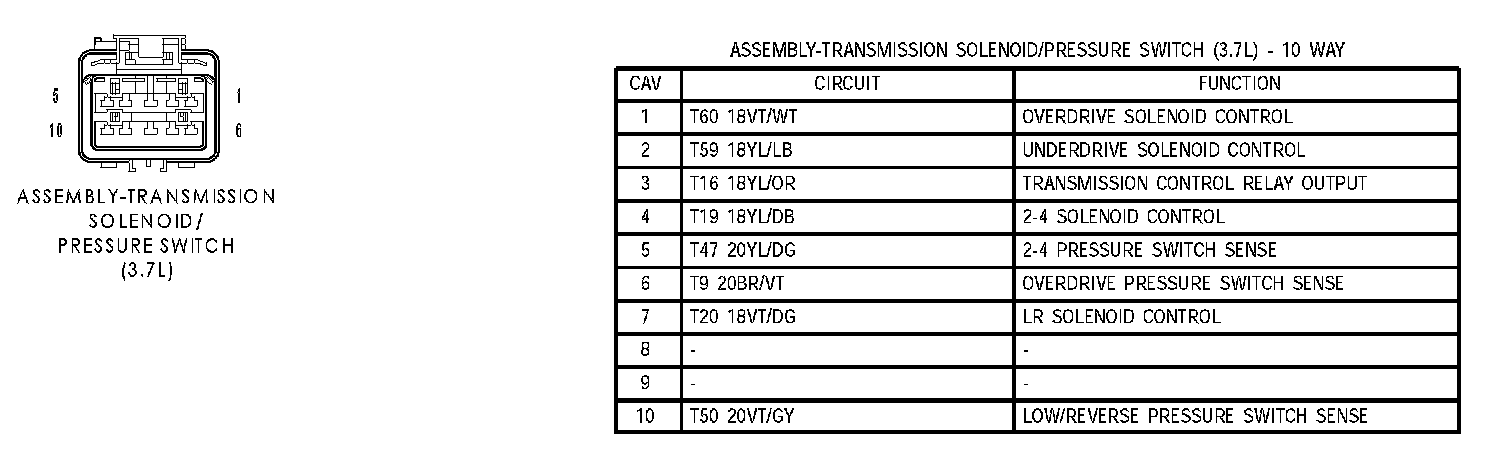

Assembly Transmission Solenoid/Pressure Switch (3.7L):
