Home >> Dodge and Ram >> 2004 >> Durango 2WD V6-3.7L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

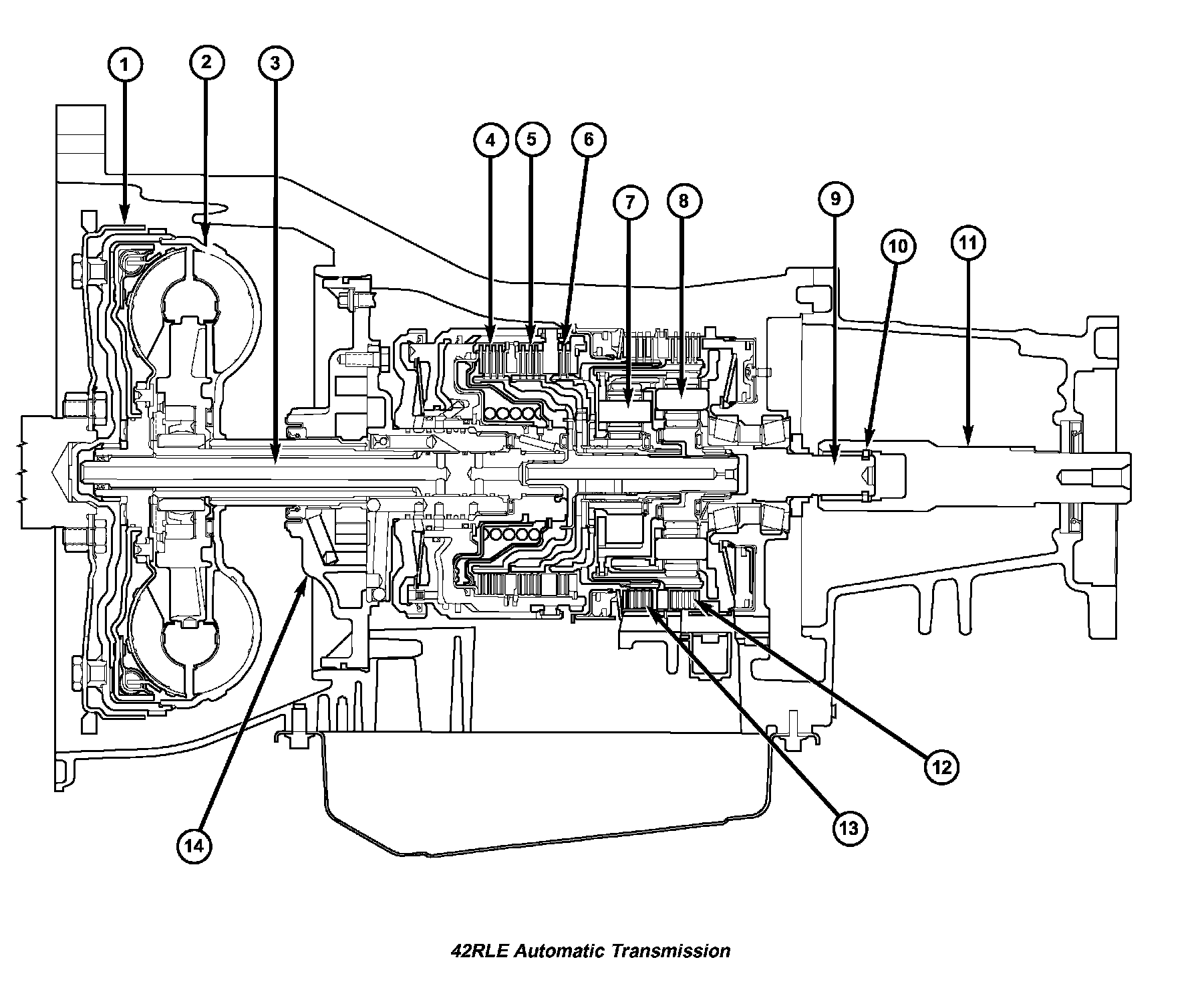

Automatic Transmission/Transaxle

Part 1 Of 2:



Part 2 Of 2:
