Dodge and Ram
>>
2004
>>
Durango 2WD V6-3.7L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Power Distribution Center
Power Distribution Center
Power Distribution Center
8w-10-2 Power Distribution Center:

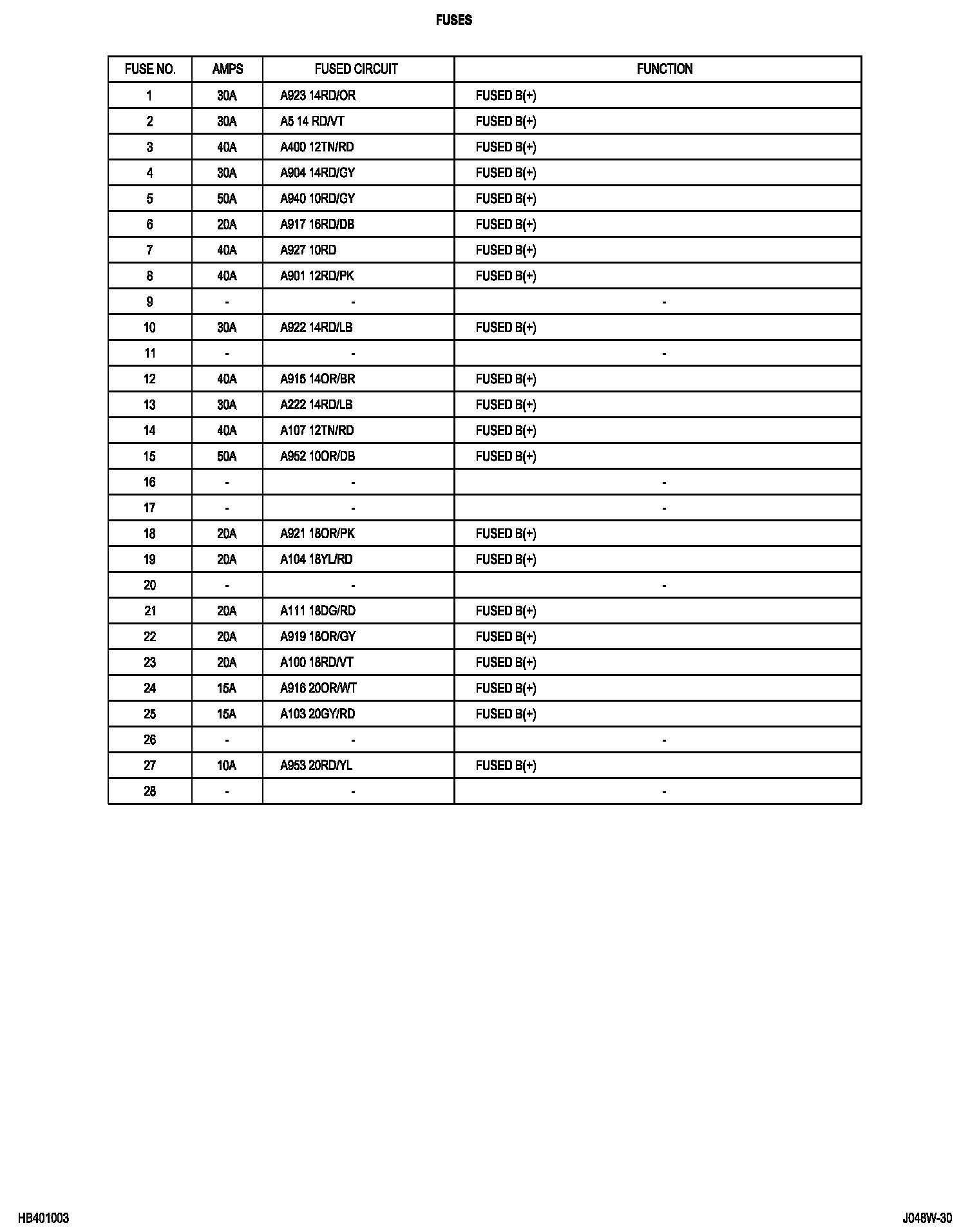

8w-10-3 Fuses (PDC):
