Remote Keyless Entry Inoperative

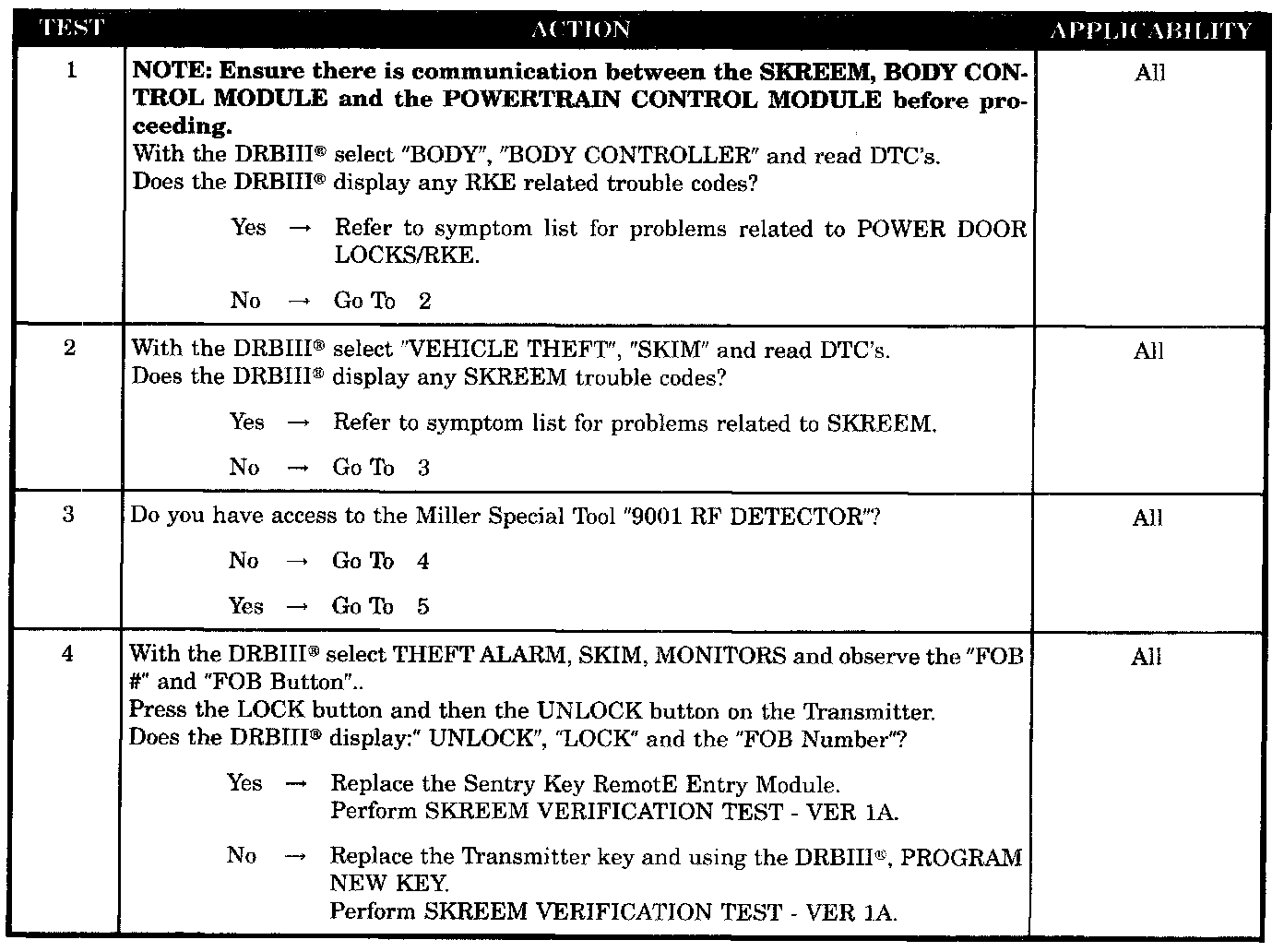

Test 1 - 4:

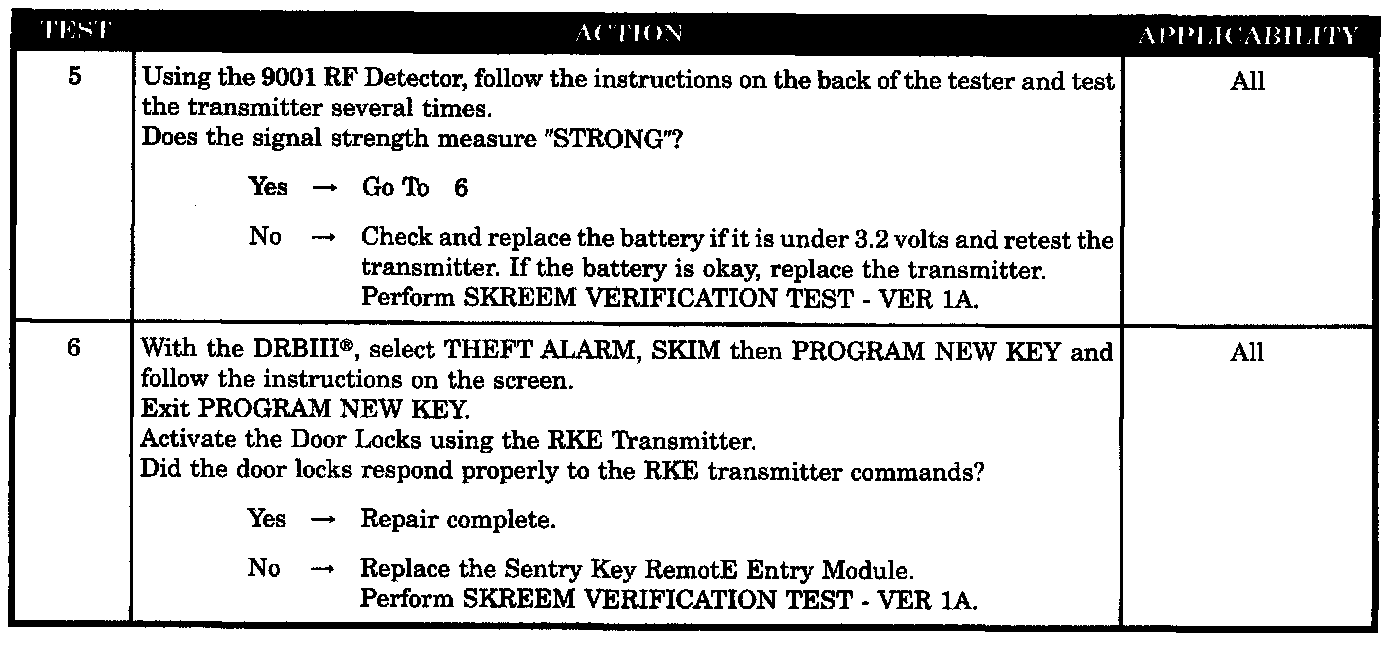

Test 5 - 6:






SYMPTOM
REMOTE KEYLESS ENTRY INOPERATIVE

POSSIBLE CAUSES
- DTC present
- SKREEM DTC present
- Test transmitter with tester
- RKE transmitter inoperative
- RKE transmitter not programmed
- SKREEM module - ree inoperative
- SKREEM module - ree inoperative
