Caravan V6-3.3L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

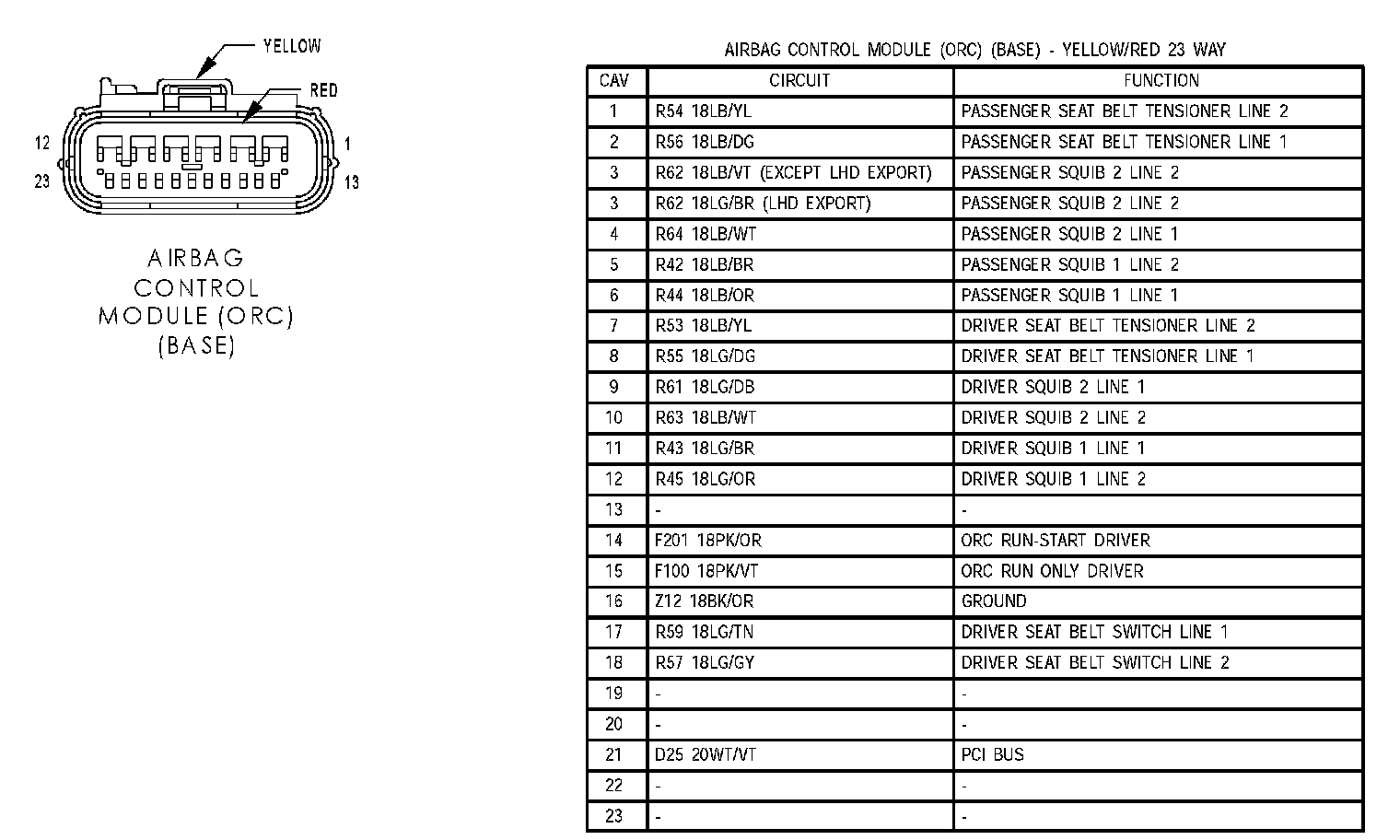

Airbag Control Module [ORC] (Base):

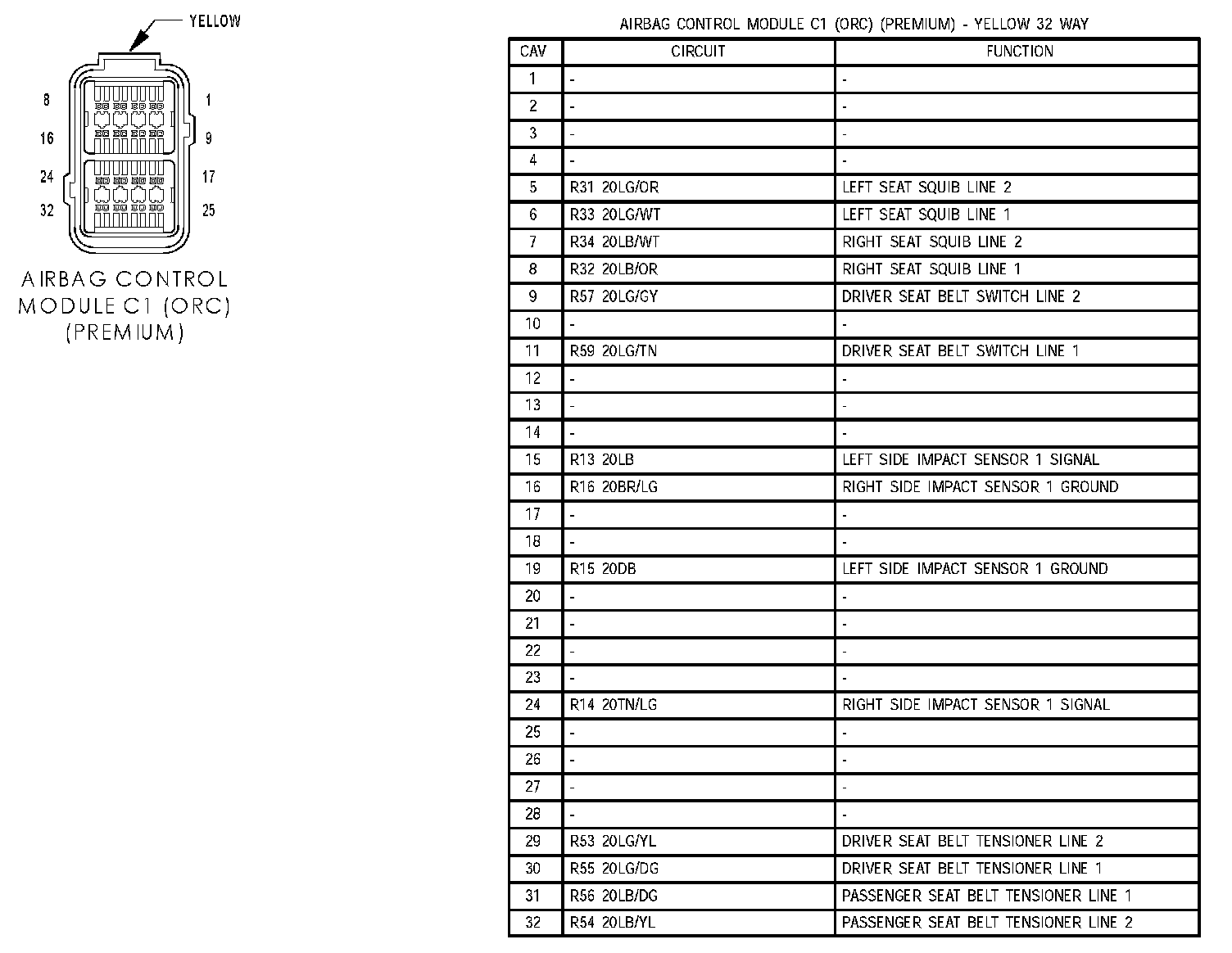

Airbag Control Module [ORC] (Premium):

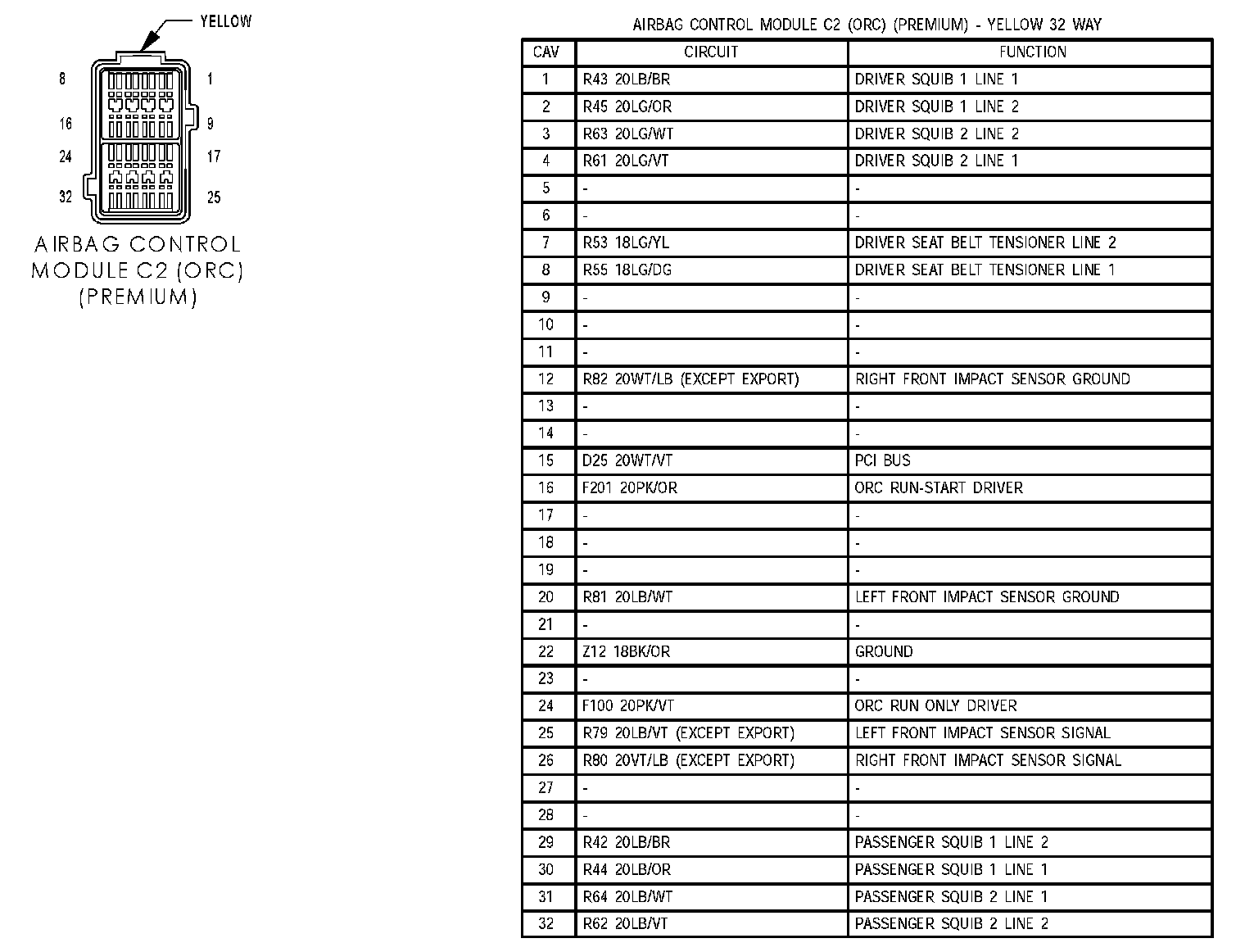

Airbag Control Module C2 [ORC] (Premium):
