Heating and Air Conditioning: Specifications

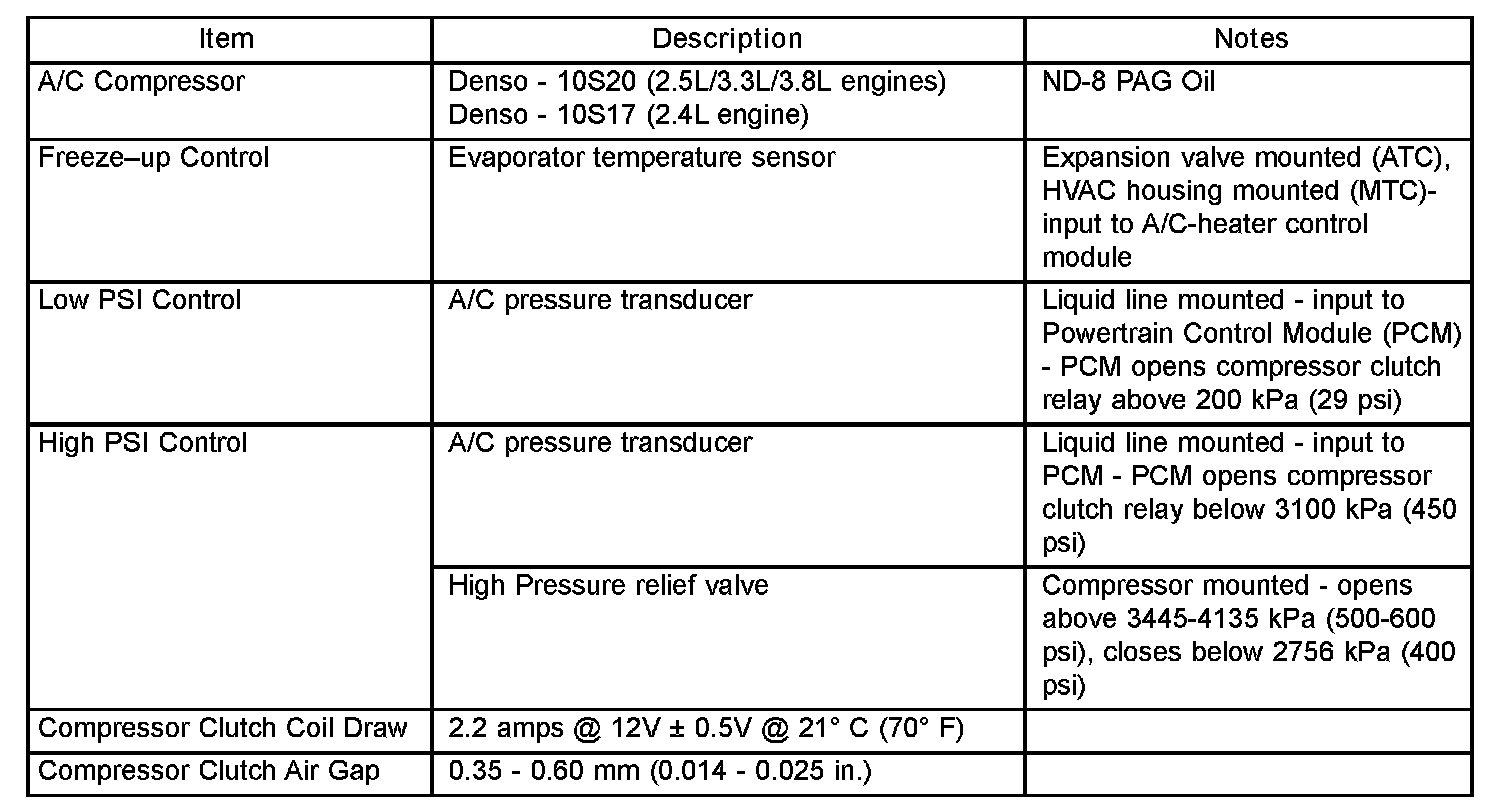

System Specifications:

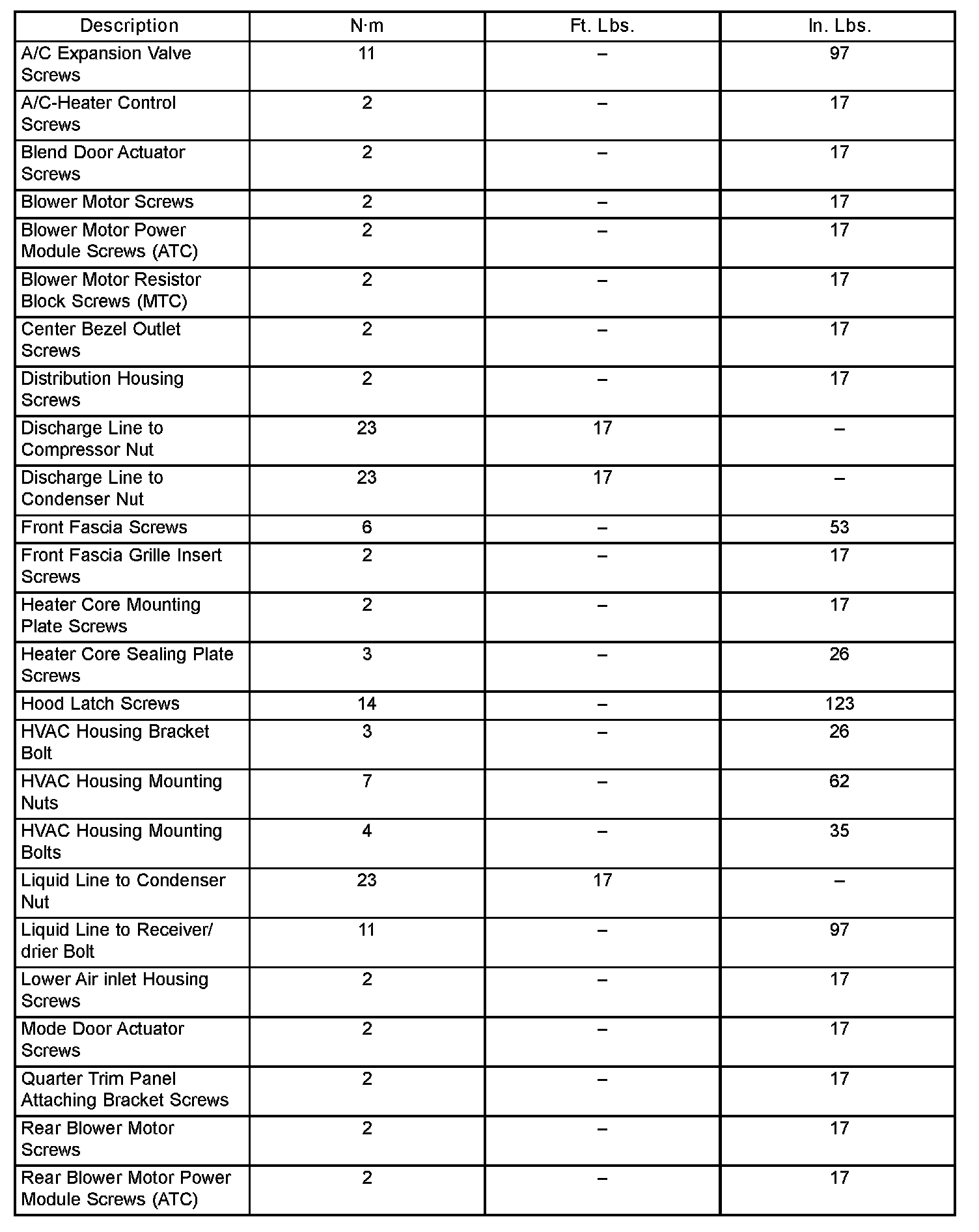

Torque Specifications Part 1:

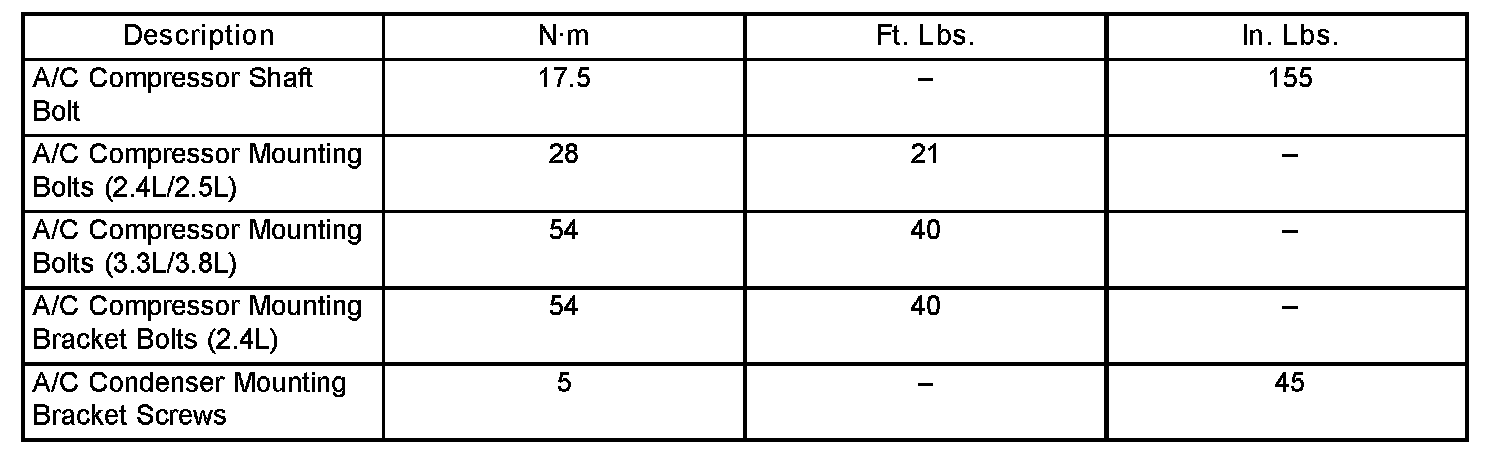

Torque Specifications Part 2:

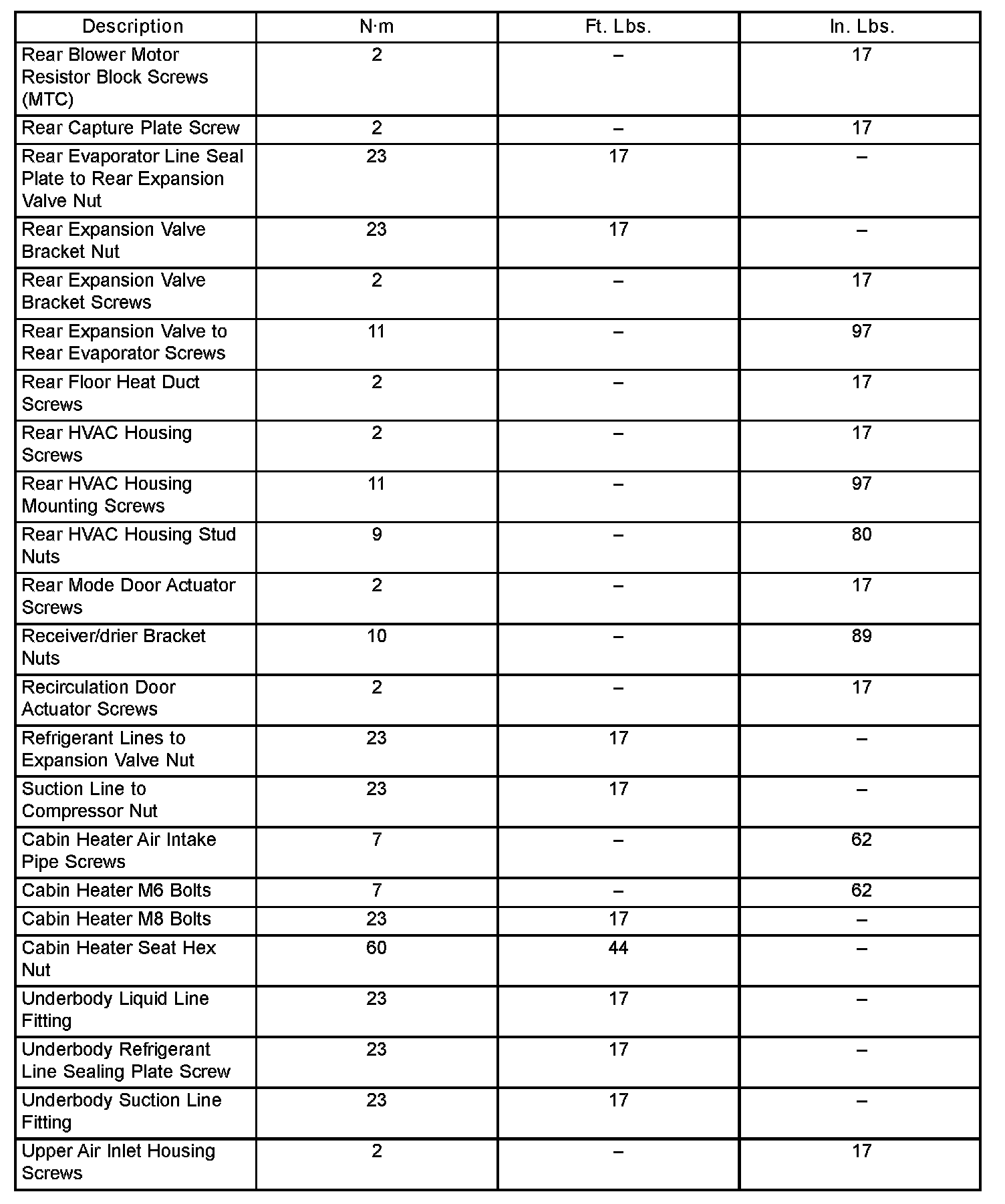

Torque Specifications Part 3:

The R-134a refrigerant system charge capacity for this vehicle can be found on the underhood Specification Label.
