Component Locations

NOTE: See Fig 1 - Fig 23 for component locations.

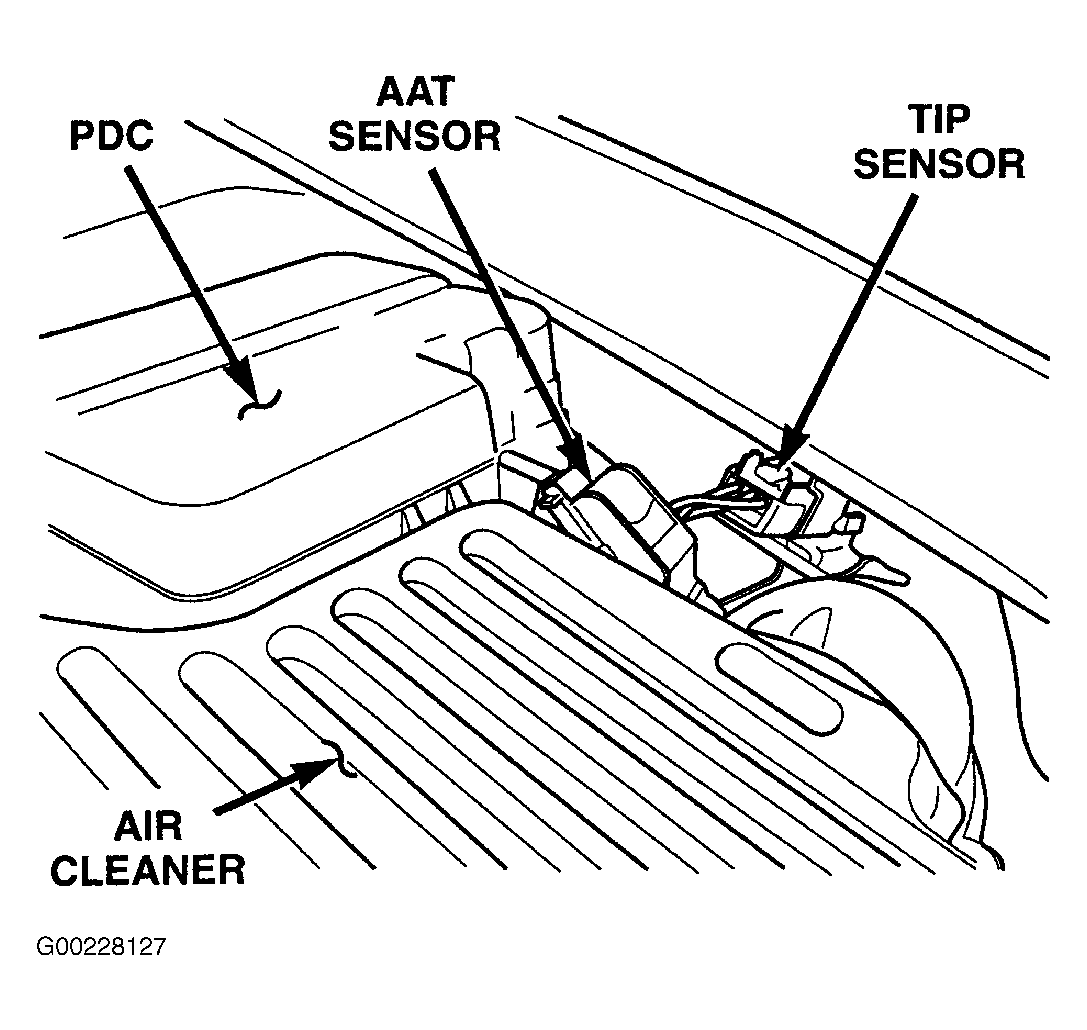

Fig 1: Locating AAT Sensor, TIP Sensor & PDC

G00228127

Courtesy of CHRYSLER CORP.

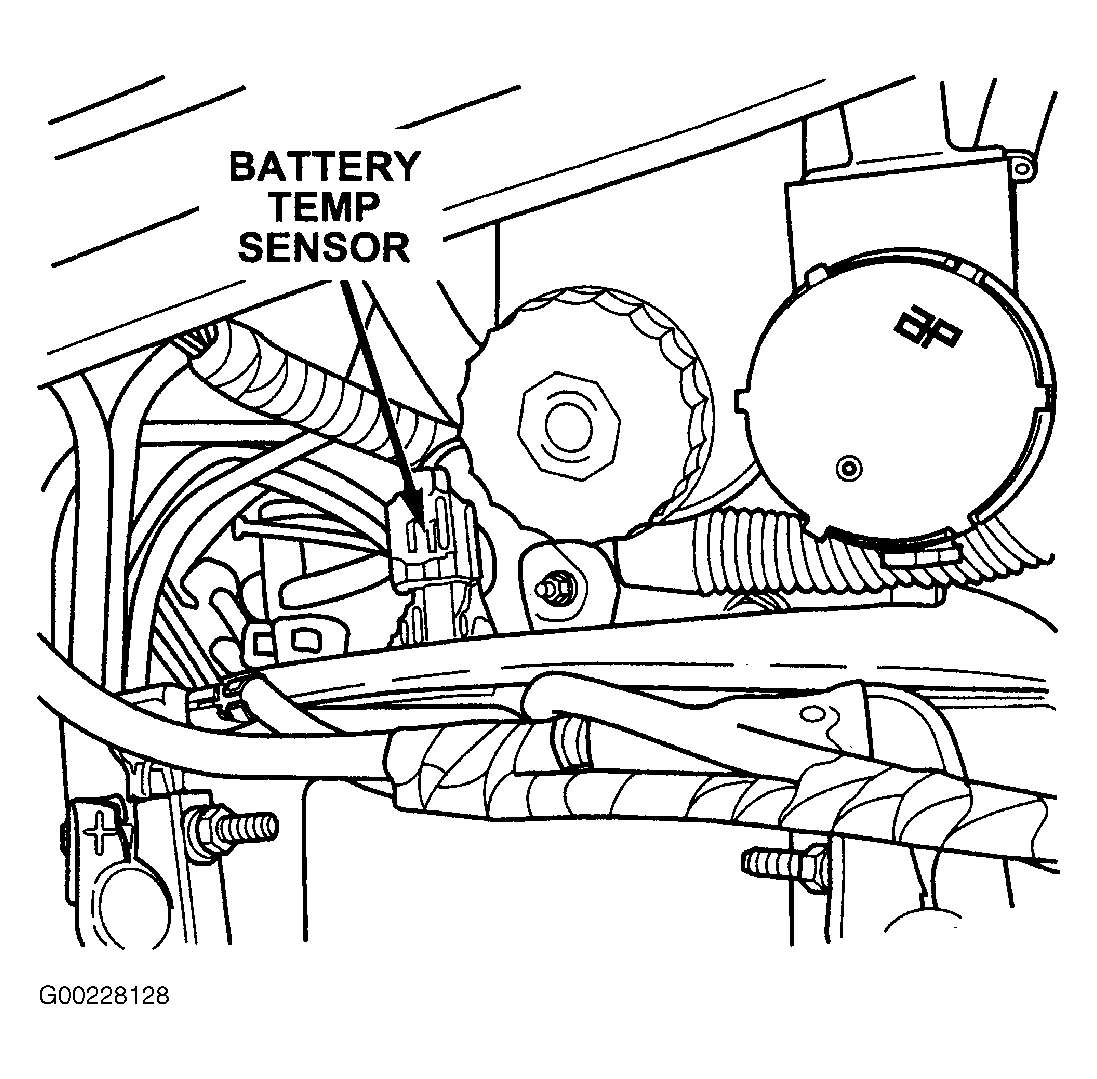

Fig 2: Locating Battery Temperature Sensor

G00228128

Courtesy of CHRYSLER CORP.

Fig 3: Locating Brake Switch & Clutch Upstop Switch

G00059286

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Locating Camshaft Position Sensor

G99G02993

Courtesy of DAIMLERCHRYSLER CORPORATION

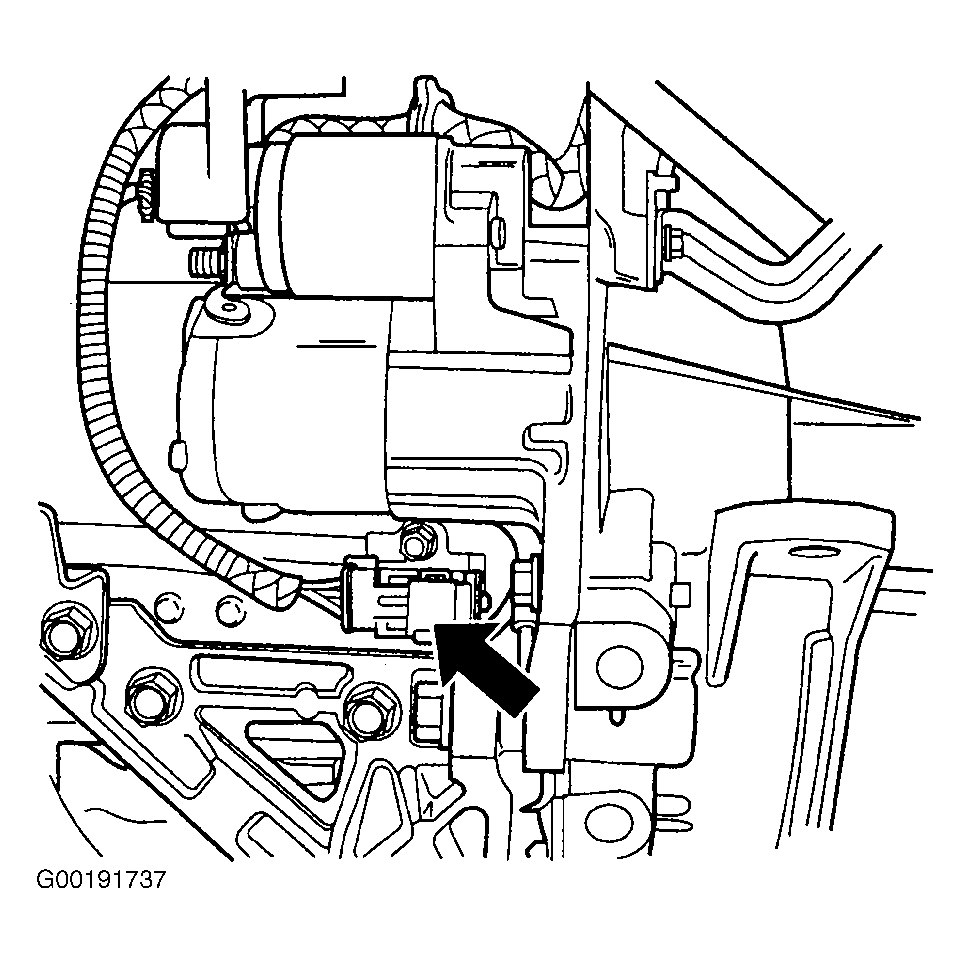

Fig 5: Locating Crankshaft Position Sensor

G00191737

Courtesy of CHRYSLER CORP.

Fig 6: Locating Data Link Connector

G00209197

Courtesy of CHRYSLER CORP.

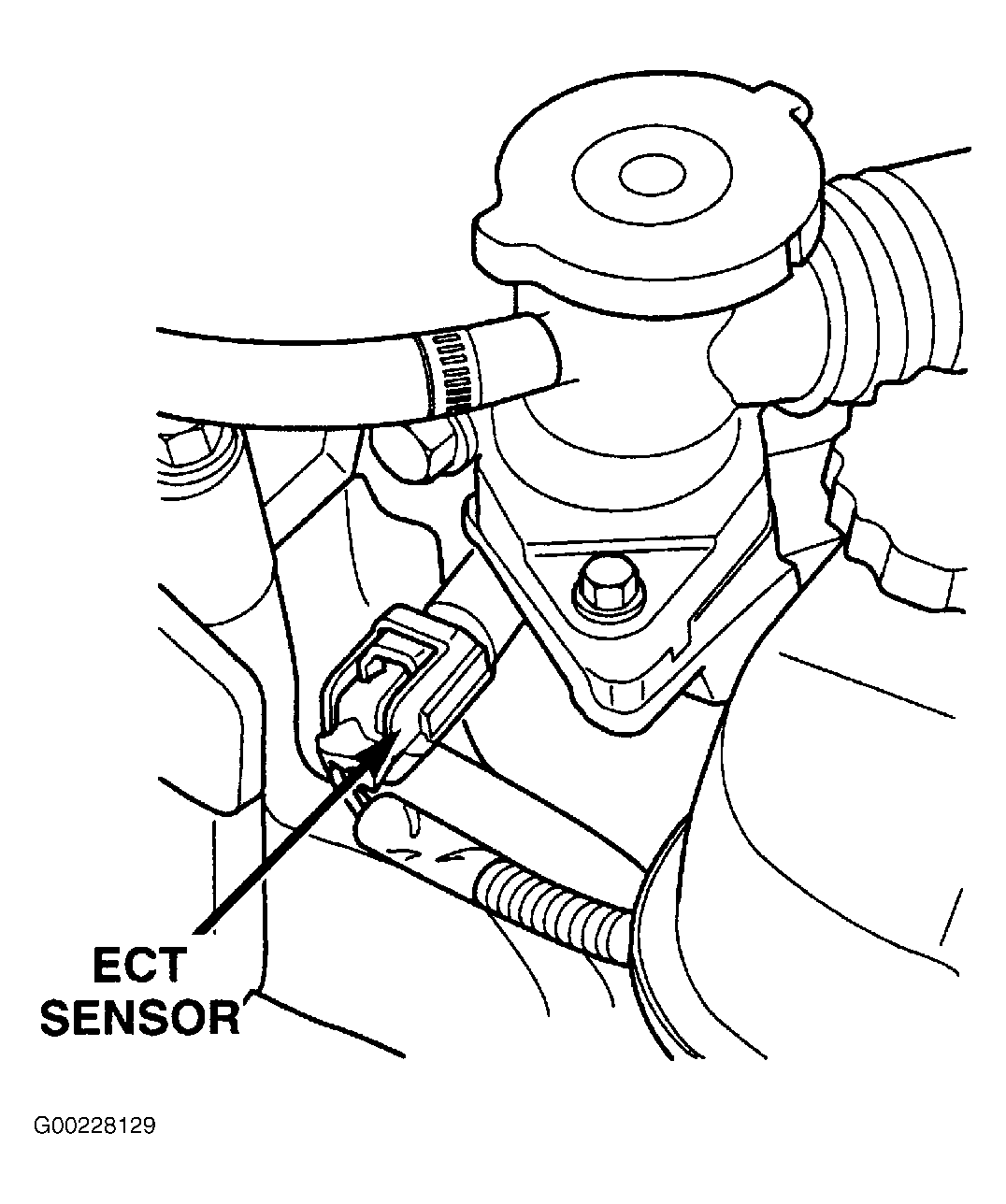

Fig 7: Locating Engine Coolant Temperature Sensor

G00228129

Courtesy of CHRYSLER CORP.

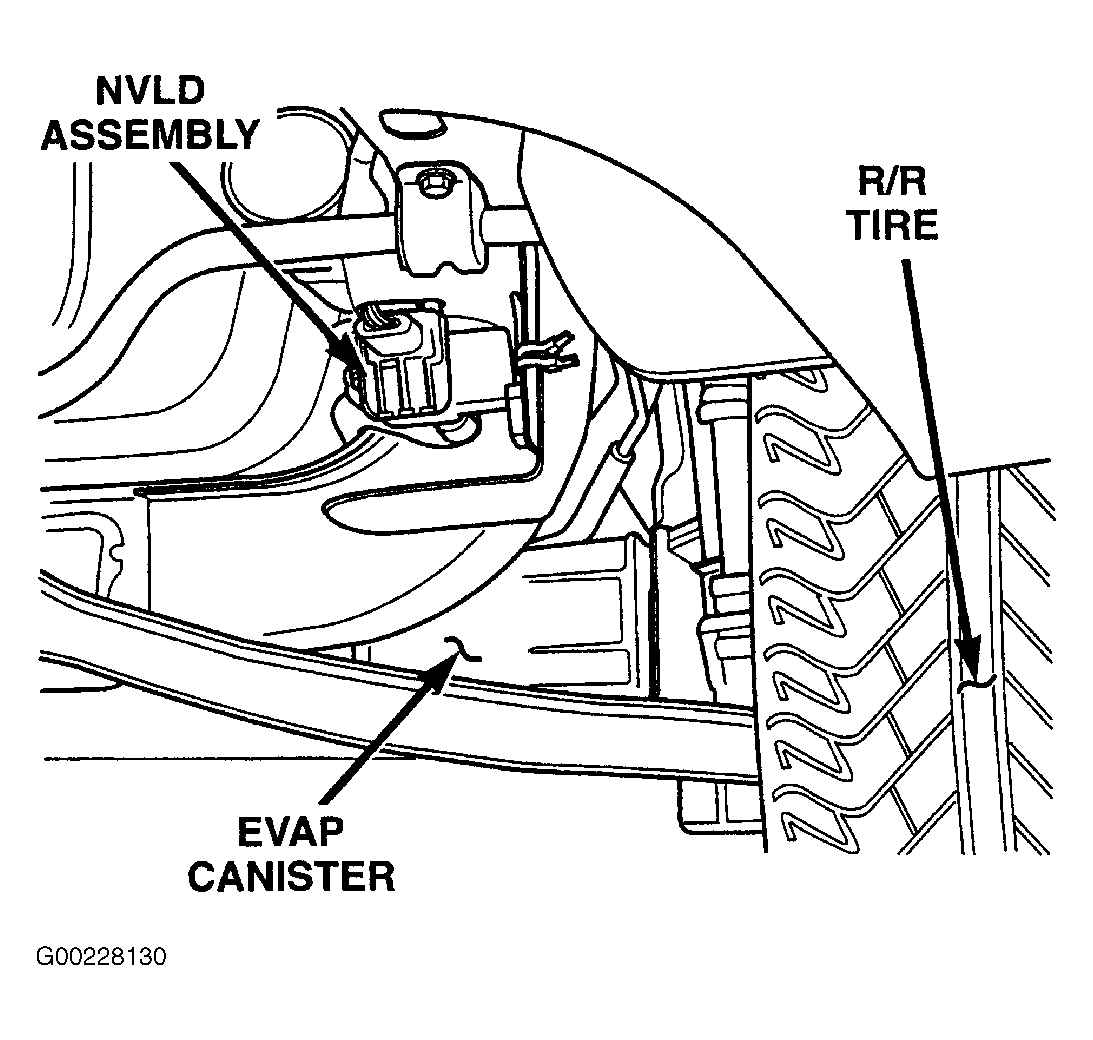

Fig 8: Locating EVAP Canister & NVLD Assembly

G00228130

Courtesy of CHRYSLER CORP.

Fig 9: Locating Evaporative Emissions Purge Solenoid & Power Steering Switch

G00030270

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 10: Locating Fuel Filter Pressure Regulator

G00059288

Courtesy of DAIMLERCHRYSLER CORP.

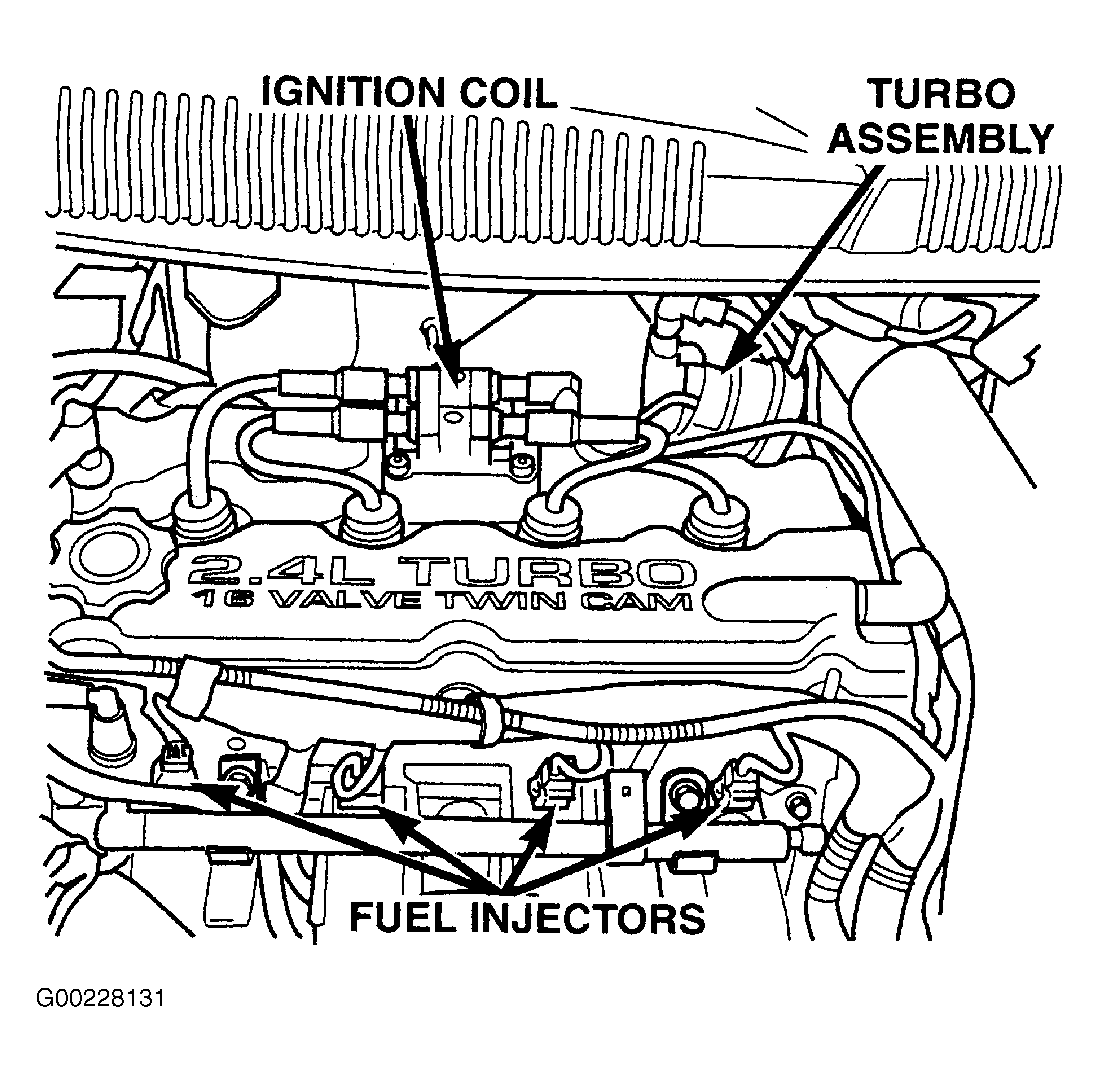

Fig 11: Locating Fuel Injectors, Ignition Coil & Turbo Assembly

G00228131

Courtesy of CHRYSLER CORP.

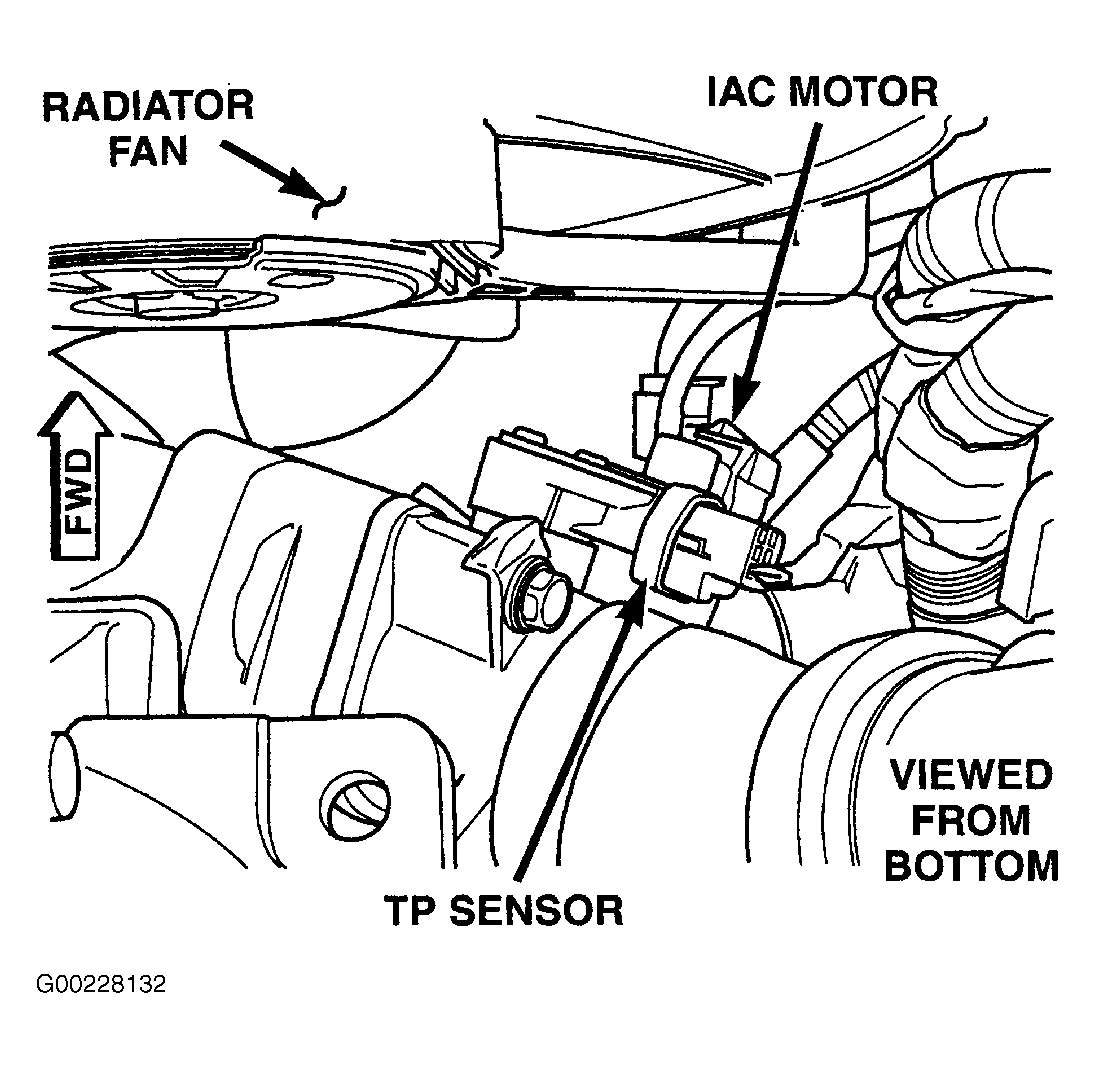

Fig 12: Locating IAC Motor & TP Sensor

G00228132

Courtesy of CHRYSLER CORP.

Fig 13: Locating Inlet Air Temperature Sensor & PDC

G00059291

Courtesy of DAIMLERCHRYSLER CORP.

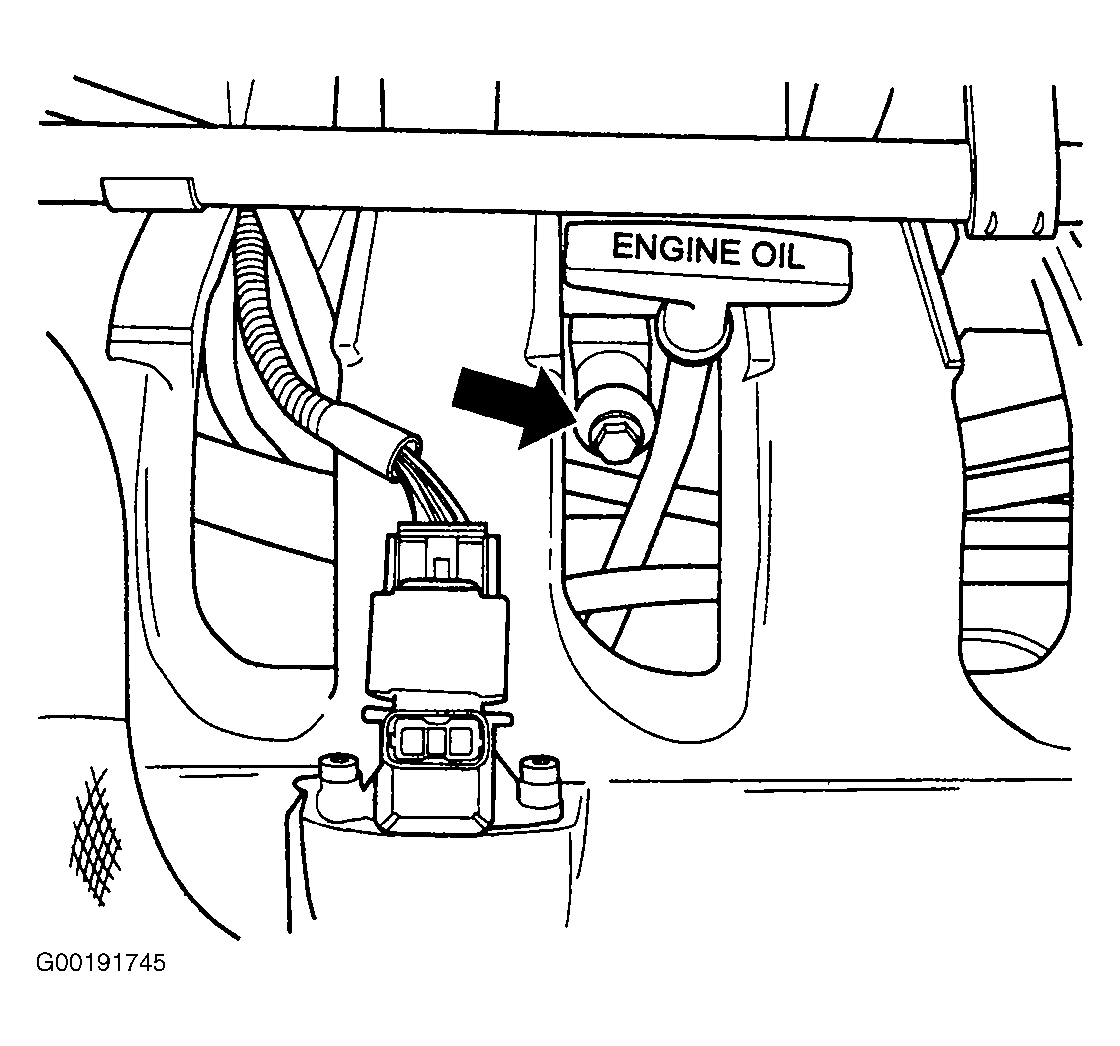

Fig 14: Locating Knock Sensor

G00191745

Courtesy of CHRYSLER CORP.

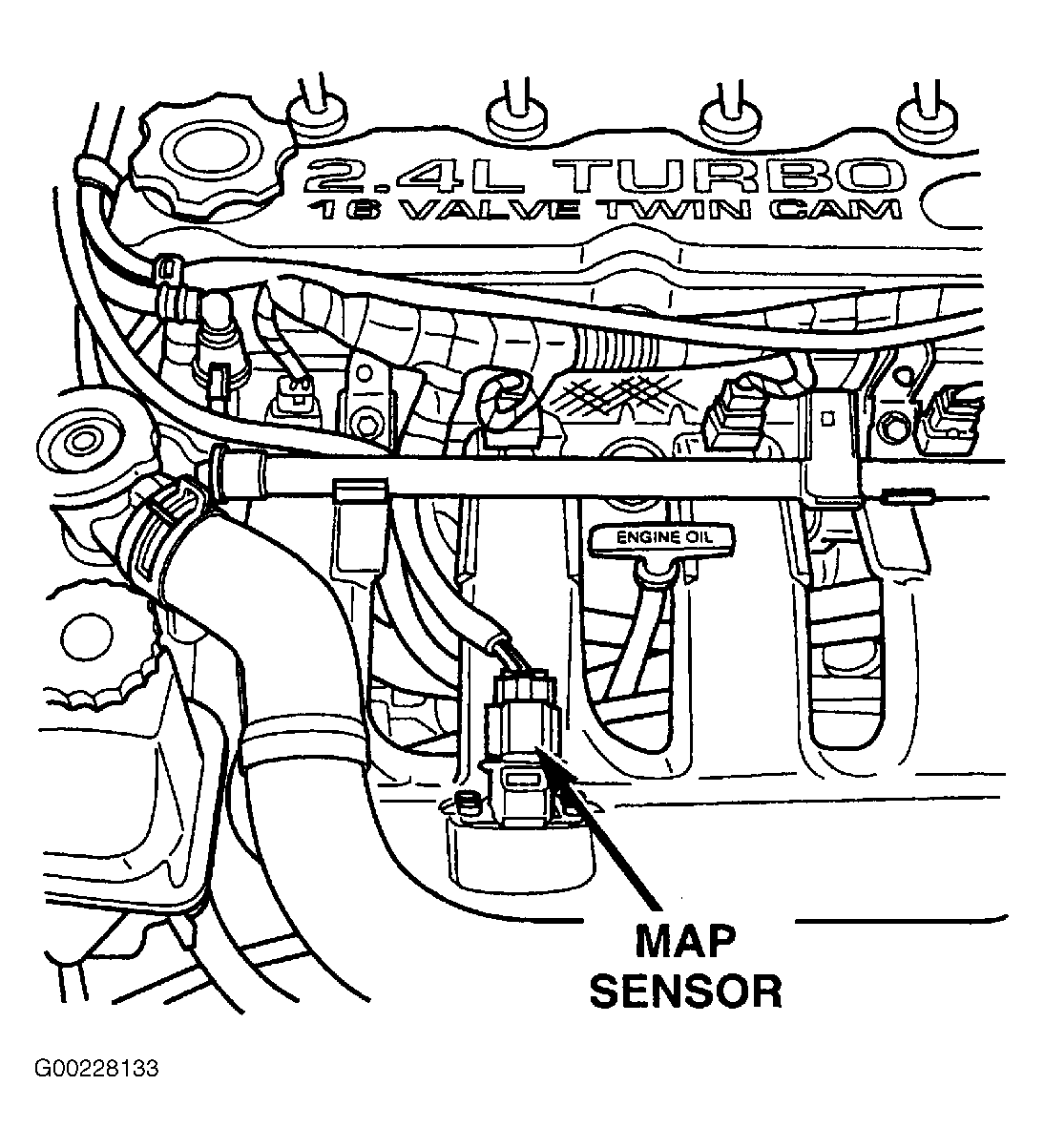

Fig 15: Locating MAP Sensor

G00228133

Courtesy of CHRYSLER CORP.

Fig 16: Locating PDC (Cover Off) & Radiator Fan Relays

G00228134

Courtesy of CHRYSLER CORP.

Fig 17: Locating Powertrain Control Module

G00209198

Courtesy of CHRYSLER CORP.

Fig 18: Locating Sentry Key Immobilizer Module

G00059292

Courtesy of DAIMLERCHRYSLER CORP.

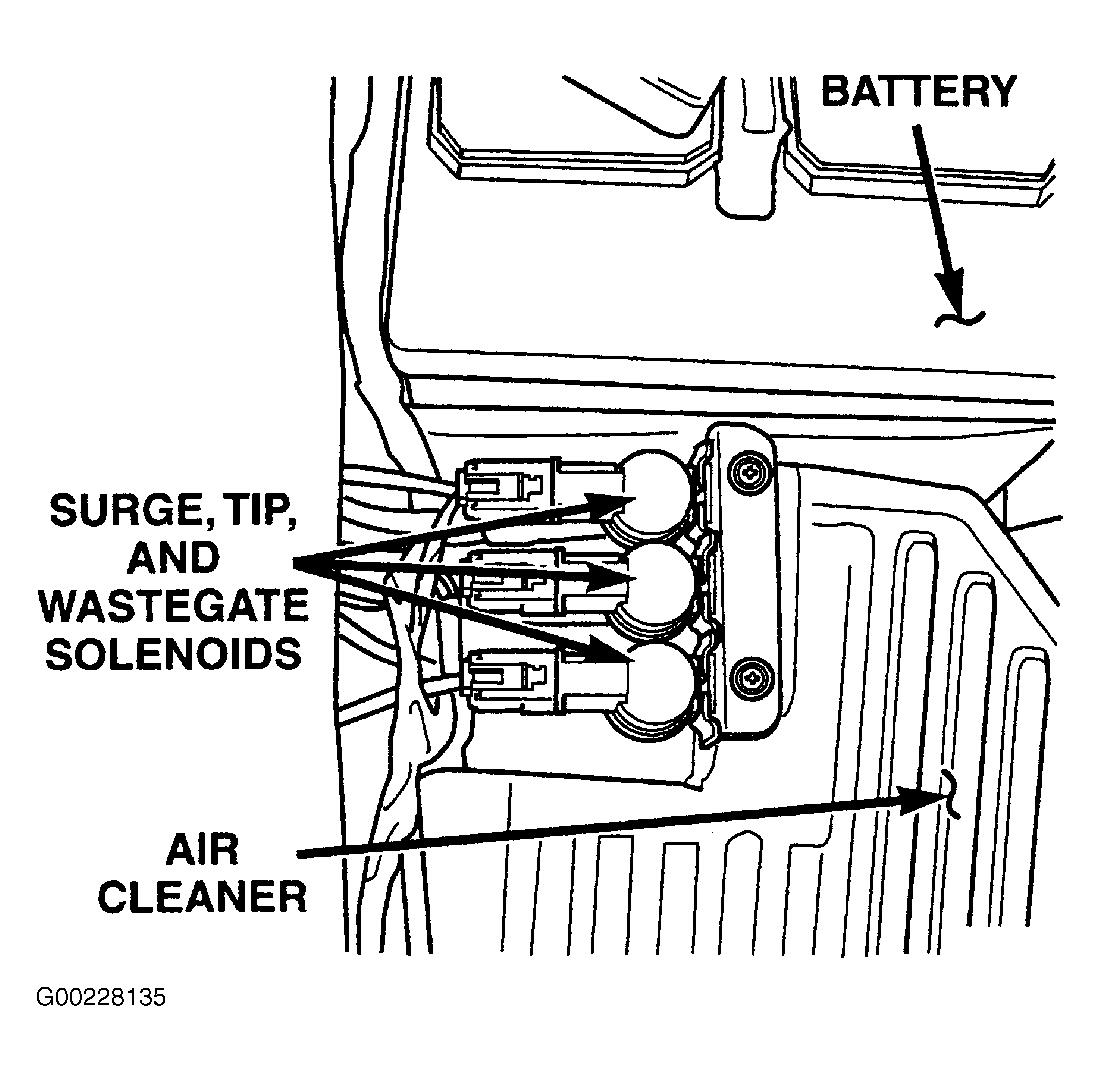

Fig 19: Locating Surge, TIP & Wastegate Solenoids

G00228135

Courtesy of CHRYSLER CORP.

Fig 20: Locating Transmission Range Sensor

G00088591

Courtesy of DAIMLERCHRYSLER CORP.

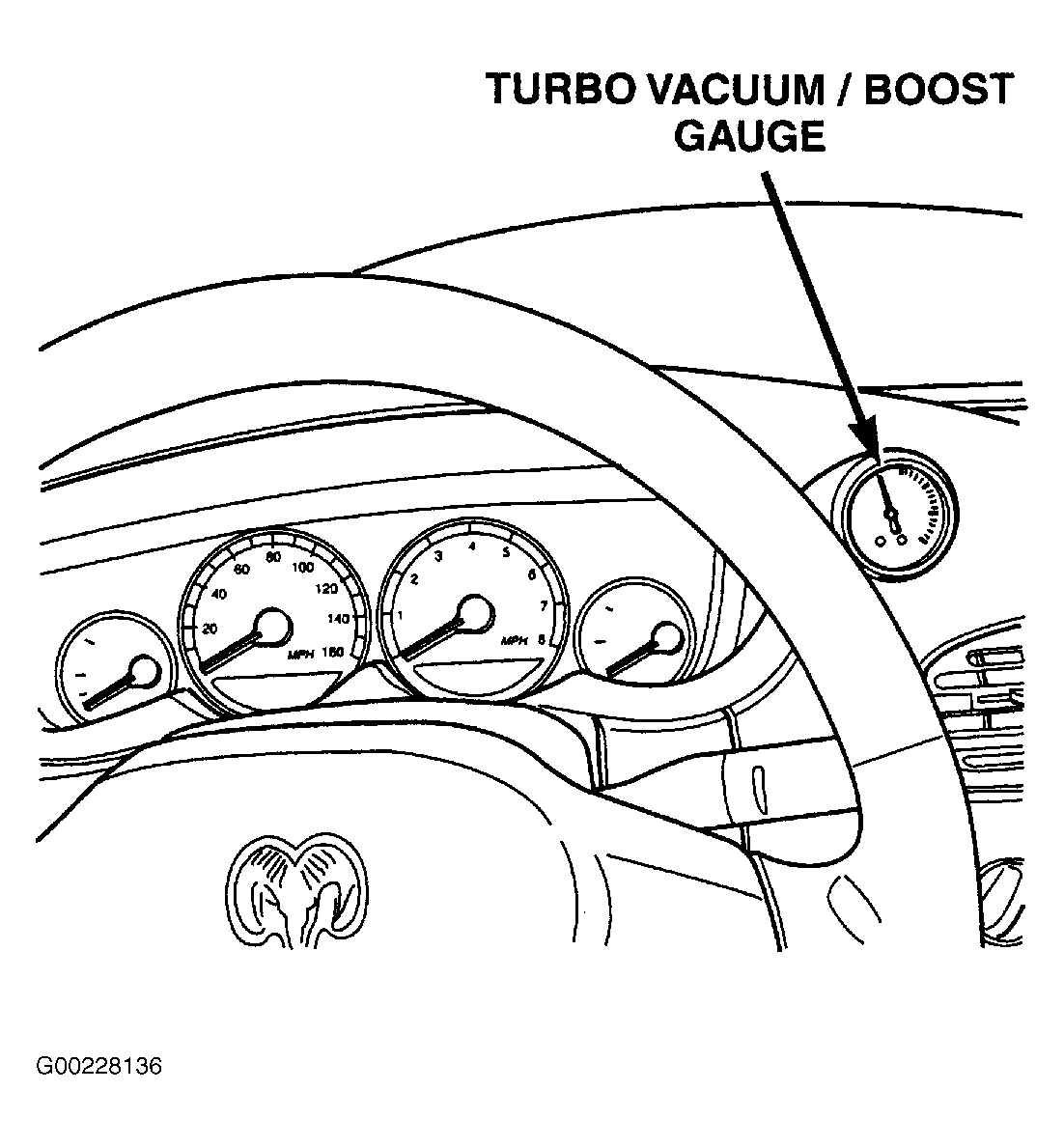

Fig 21: Locating Turbo Vacuum/Boost Gauge

G00228136

Courtesy of CHRYSLER CORP.

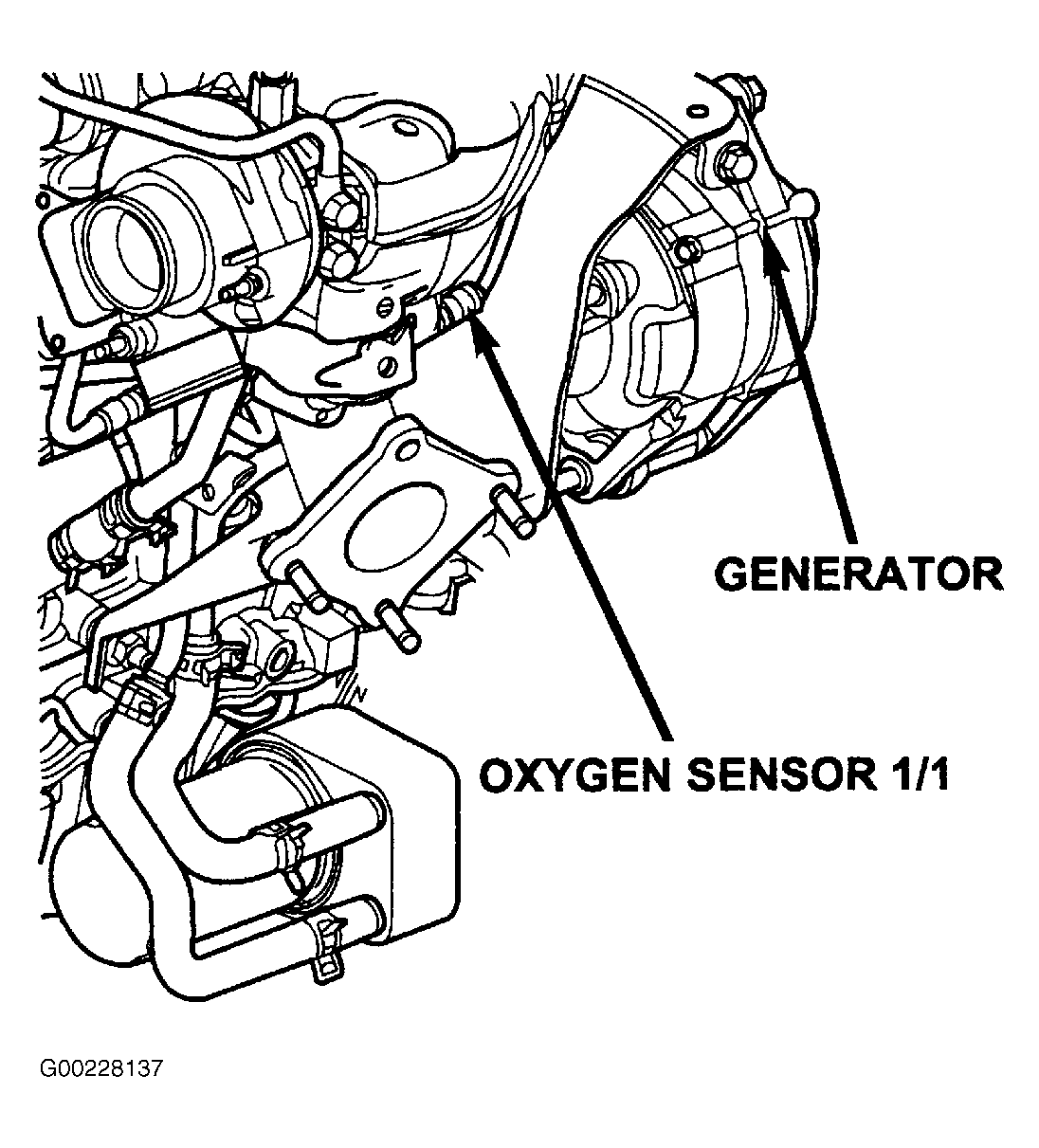

Fig 22: Locating 1/1 Oxygen Sensor

G00228137

Courtesy of CHRYSLER CORP.

Fig 23: Locating 1/2 Oxygen Sensor

G00088558

Courtesy of DAIMLERCHRYSLER CORP.
