Home >> Dodge and Ram >> 2003 >> RAM 2500 Van V8-5.2L VIN Y >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations >> Connector Locations

Connector Locations

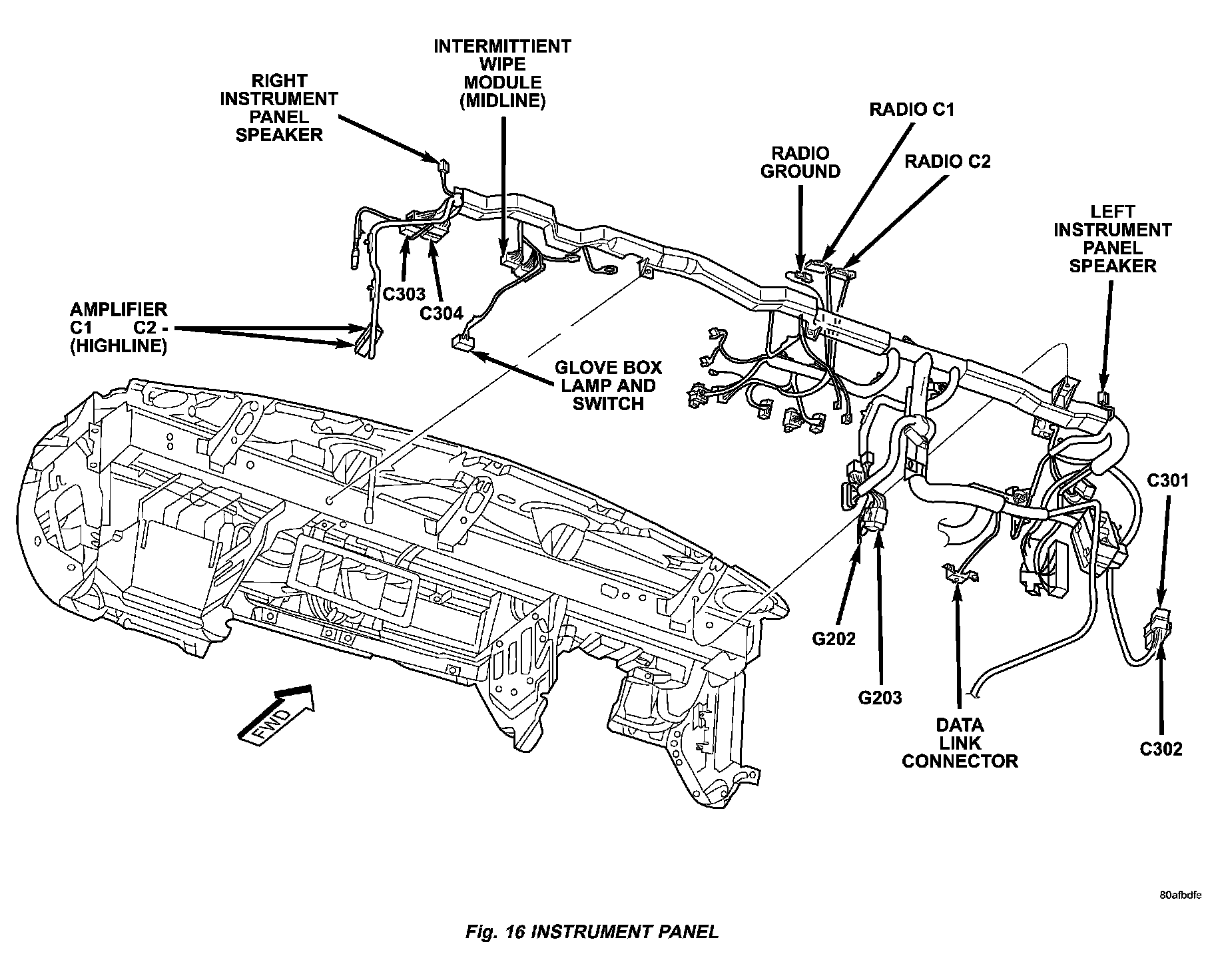

Fig. 16 Instrument Panel:

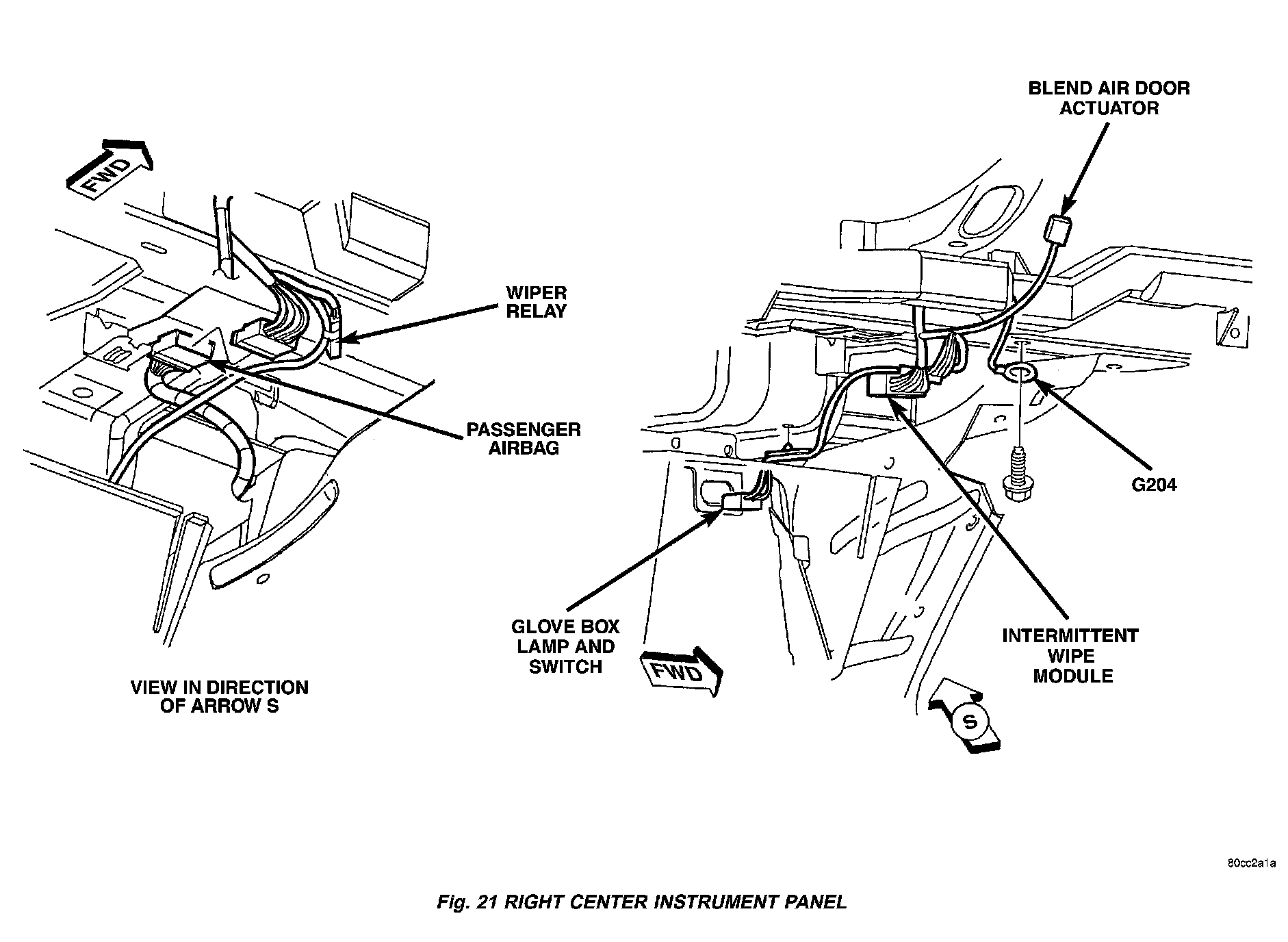

Fig. 21 Right Center Instrument Panel:
